I've seen a few people asking about installing speakers on the new fit. It was a little confusing getting the door panel off and mounting the speaker due to lack of details on the internet so here is my two cents, hopefully it will help someone. The wire colors are all listed at the bottom also.

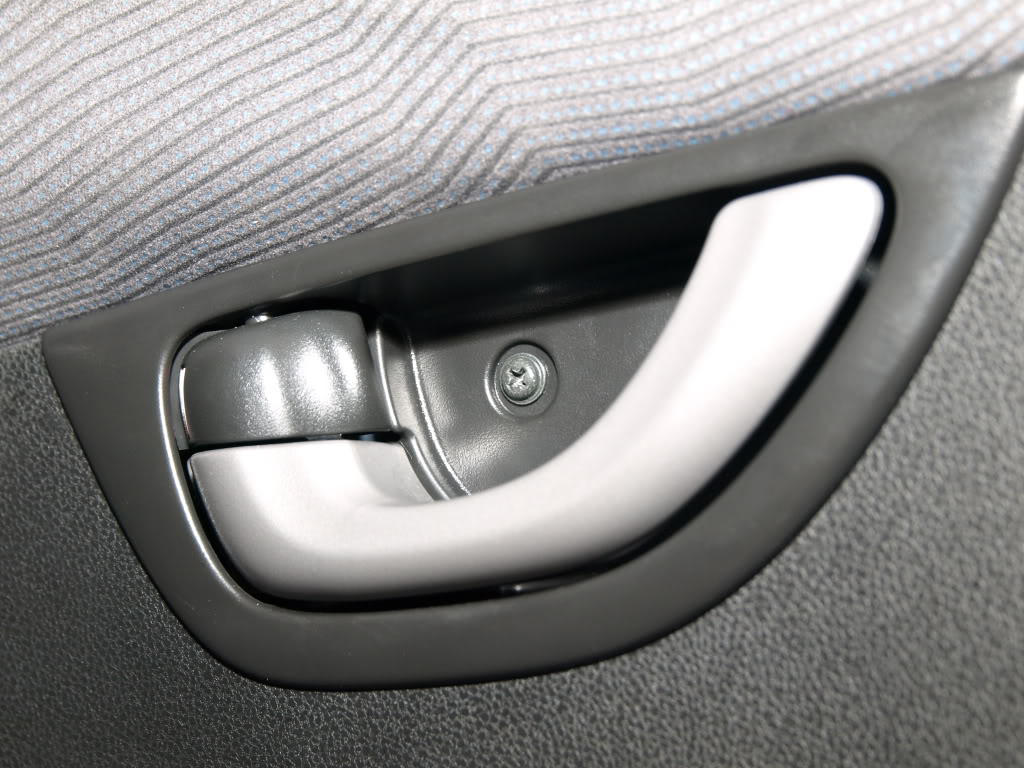

To get the door panel off first take off the screw located in the door handle.

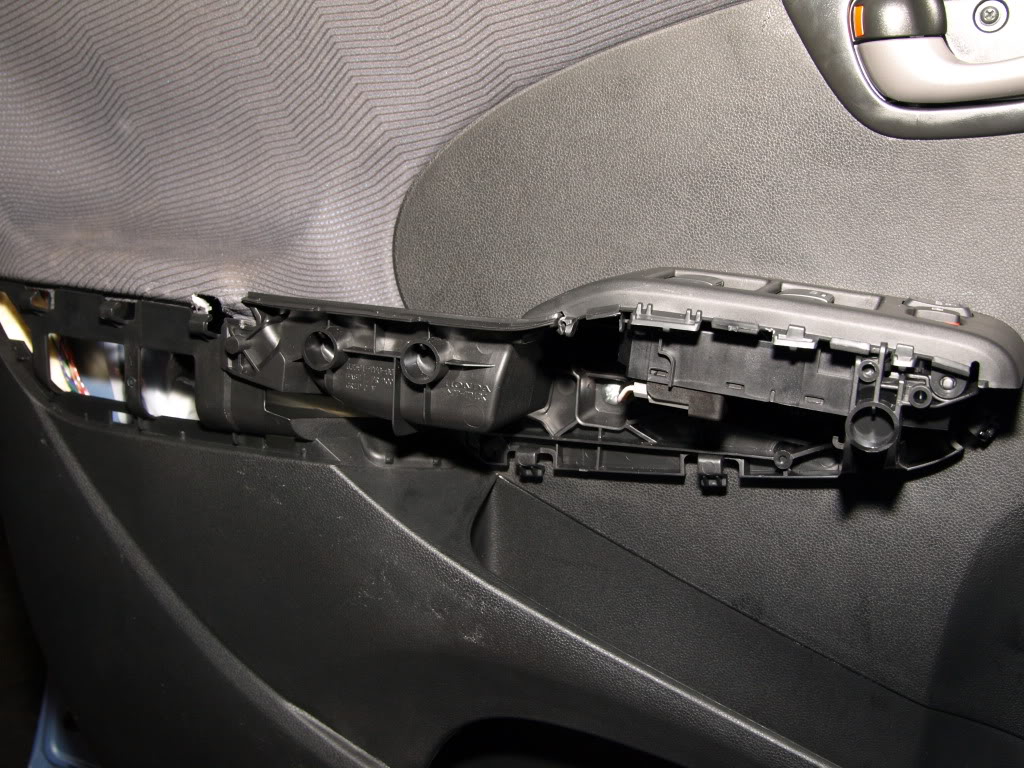

Next you have to take off the shroud around the arm rest and window controls. I found it easier to start on the end near the back of the door and pull it torwards the front of the car and out at the same time, the rest will just pop off. The piece seems to be very flexible so I doubt you will break anything pulling it off.



After that there is one more screw about center under the arm rest that is revealed after pulling that off. It is visible in the above picture just to the left and below the window switches. Unhook the cable from the window switch.

Then just find a spot somewhere on the sides or bottom of the door you can work your fingers in and pop the panel off. There are about 6 plastic clips holding it on and they will pop off with some effort. I took mine off many times, and managed to damage only one clip.



Pull the panel up and off of the door, you can push the door handle through the hole.

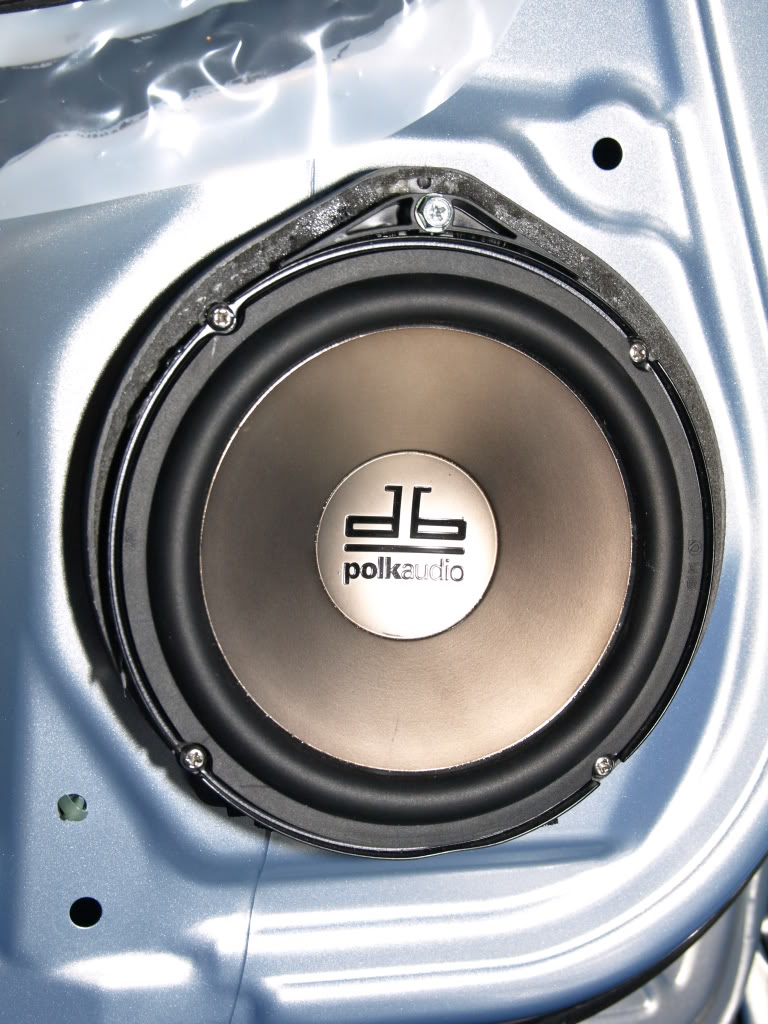

To take the stock speaker out just unscrew the one philips head at the top and wiggle the speaker upwards and out of the hole. It is held in at the bottom by plastic tabs.

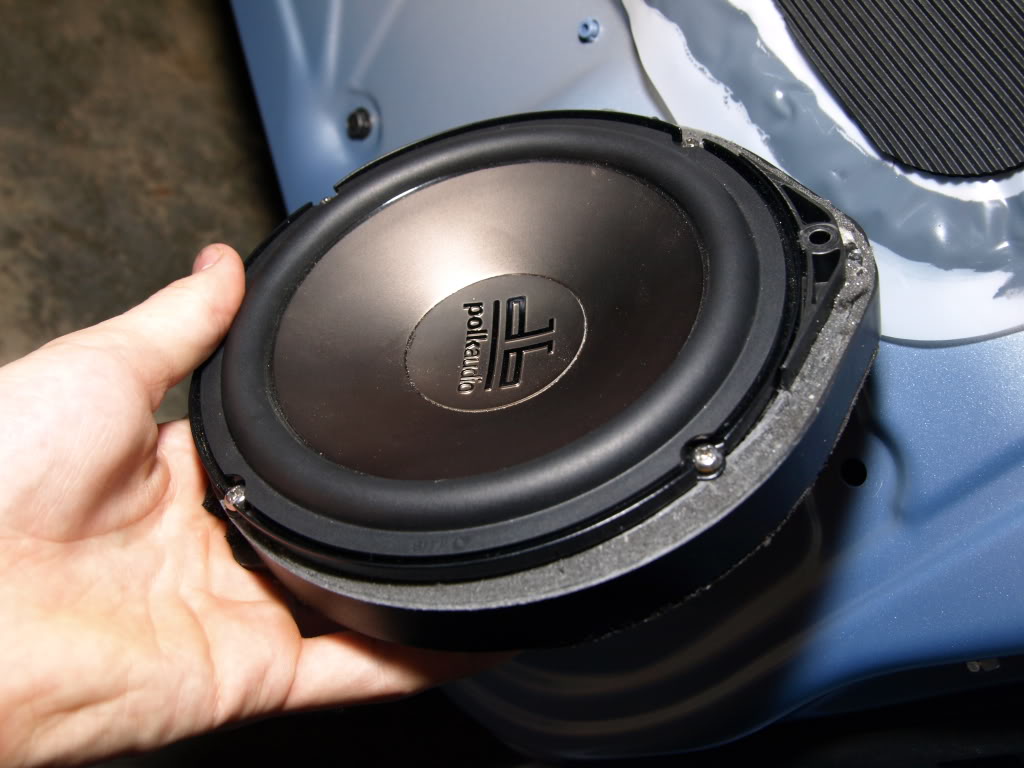

I chose to use the stock speaker to make the mount for mine. I used a dremel with a cut off wheel for plastic. The entire speaker is made of plastic so just cut off the magnet and basket and tear out the cone. After that cut off the brim on the top of the speaker between where the cone was and the foam. now you should have a nice smooth ring to mount your speaker too.

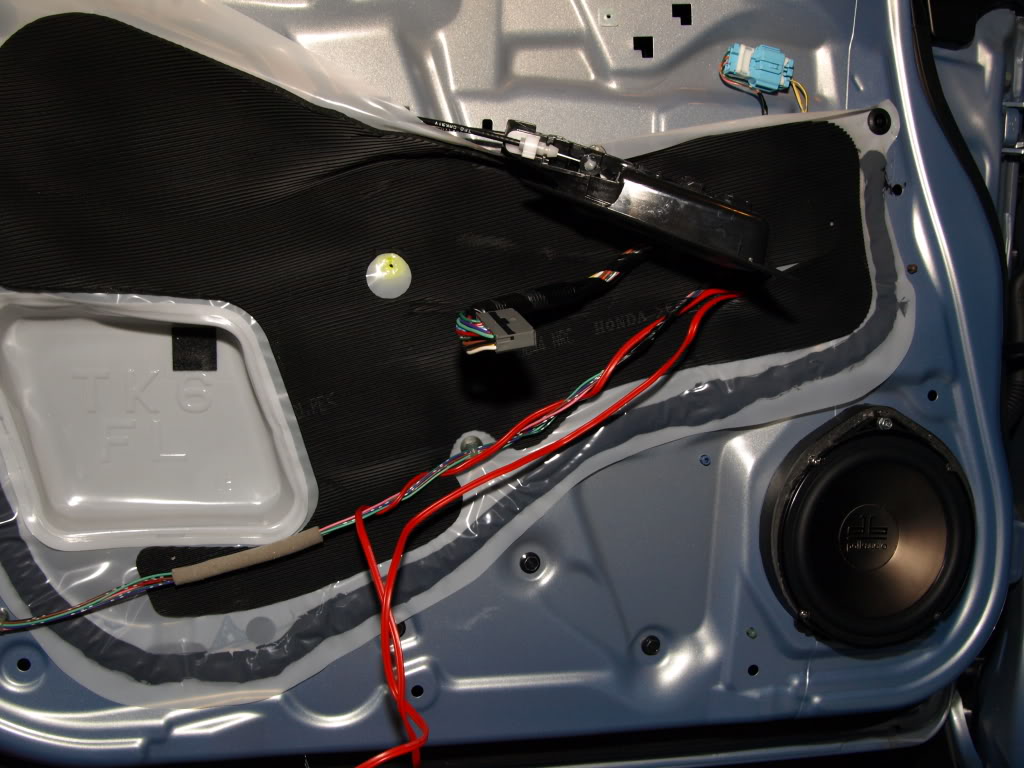

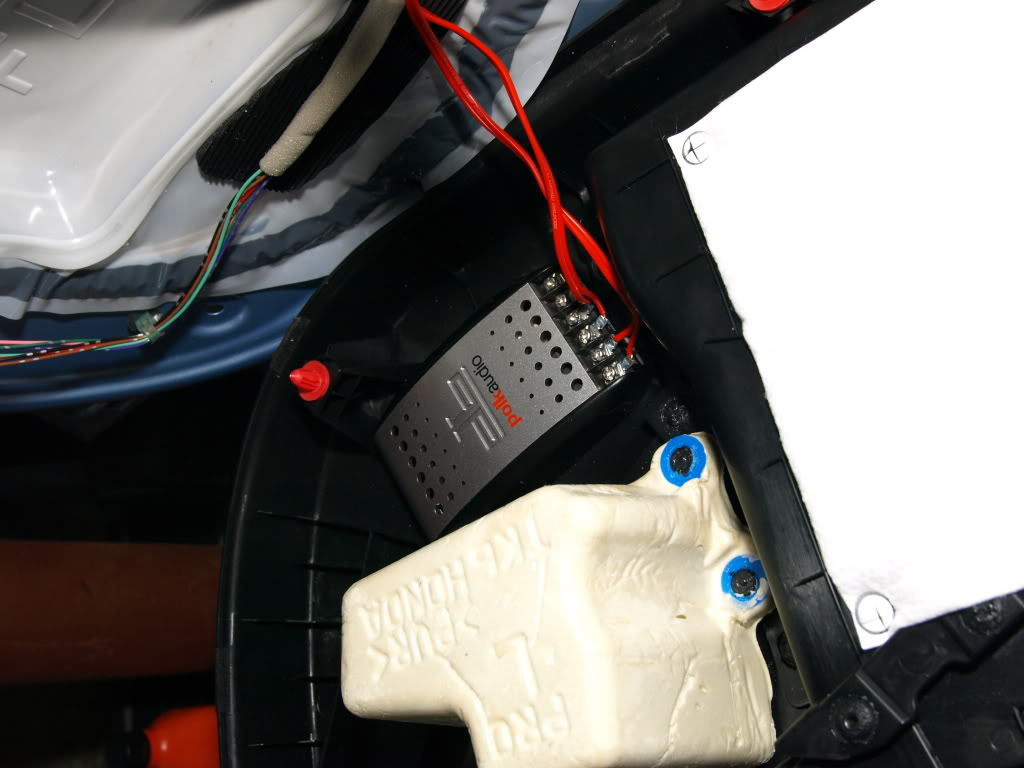

After that your speaker will install just like the stock speaker. There is room in the door panel beside the foam piece for a crossover.






Front Left
Wire (+)
Wire Color LIGHT BLUE
Pin # 23

Wire (-)
Wire Color LIGHT GREEN
Pin # 22

Front Right
Wire (+)
Wire Color BROWN
Pin # 19

Wire (-)
Wire Color RED
Pin # 18

Rear Left
Wire (+)
Wire Color GRAY
Pin # 11

Wire (-)
Wire Color BROWN
Pin # 10

Rear Right
Wire (+)
Wire Color BLUE
Pin # 7

Wire (-)
Wire Color ORANGE
Pin # 6
