My JDM DISK BRAKE RS Rear Axle conversion
My JDM RS Rear Axle with Disk Brake just arrive about an hour ago.
They are practically BRAND NEW, coming from a 2012 RS model car that had been subjected
to flood and thus cannot be sold as complete car anymore.
but since they are basically just steel part and painted, there are no corrosion damage.
the seller said that this is from FRESH WATER Flood which mean not the Japan Tsunami
but the Thailand Flood that happened last year.
if this is electronic parts, I would NOT buy it, but since this is Mechanical Part,
I am ready to take the risk and turn out the reward is good for me
I just check the movement of the hub and it seemed that the bearing is OK,
but if worst came to worst, I can just replace the bearing and get it from US Dealer
because the part number for that bearing is available here.
The next few weeks will be FUN for me

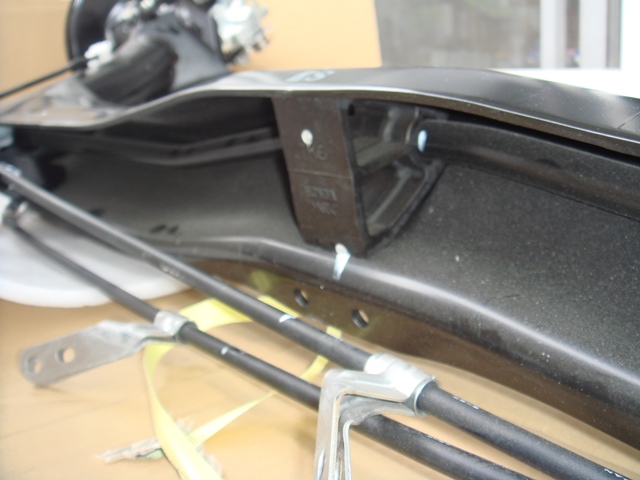

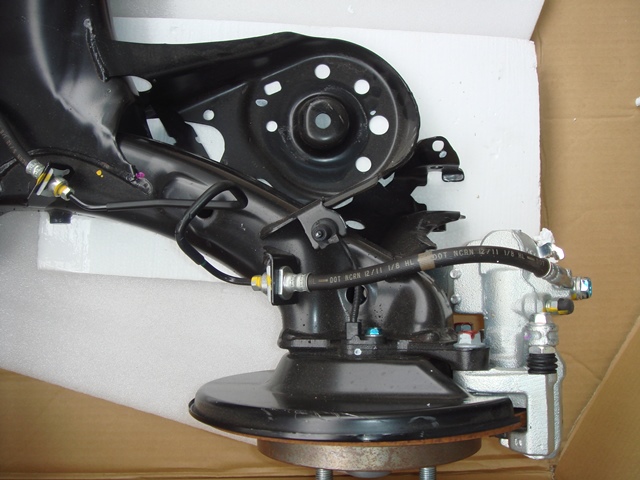

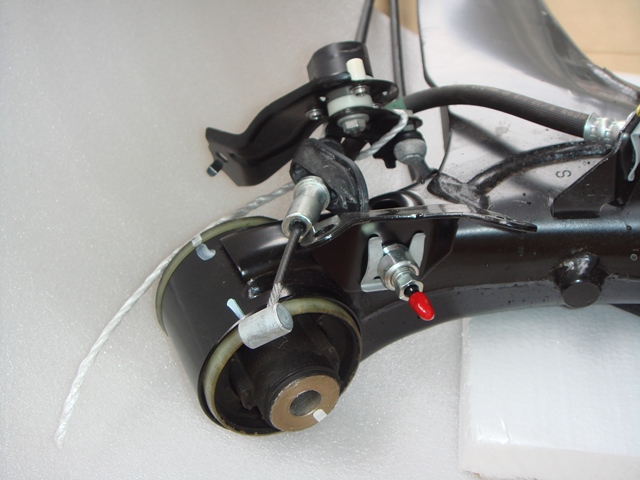

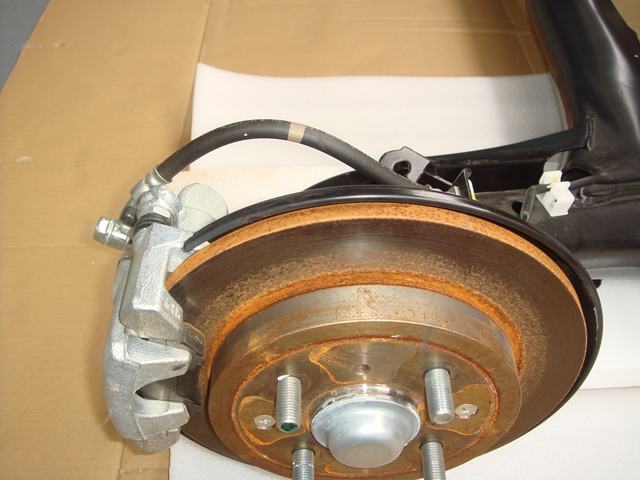

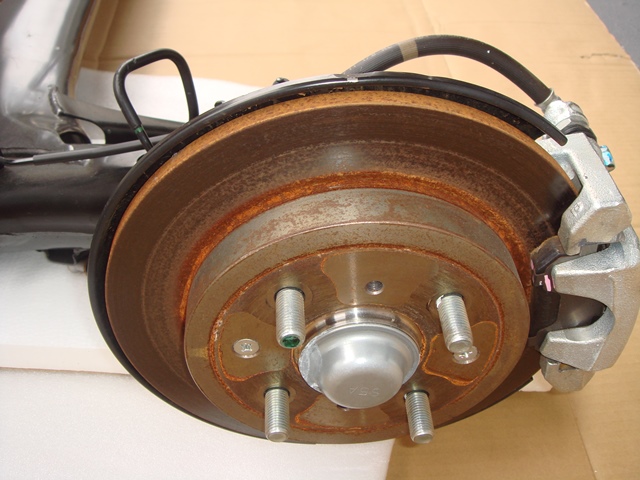

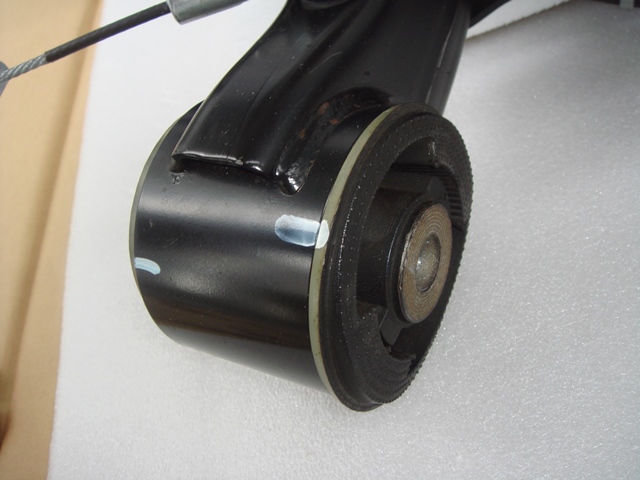

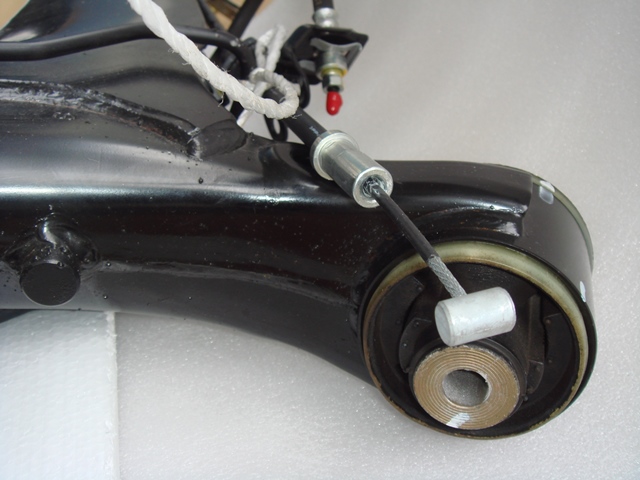

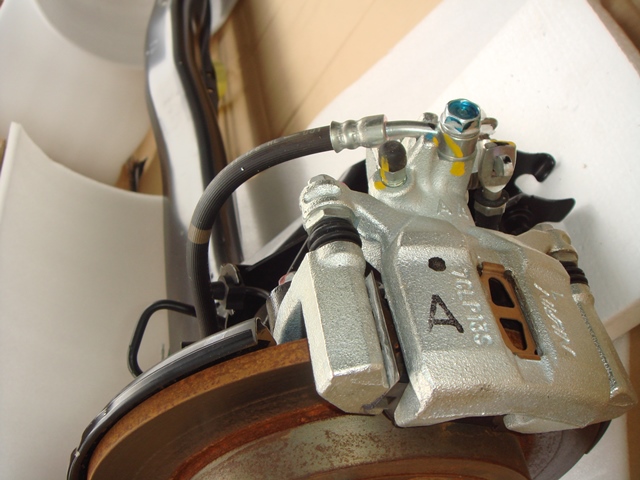

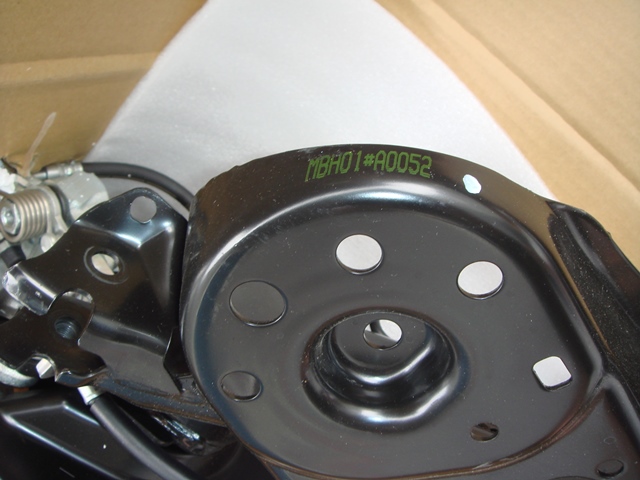

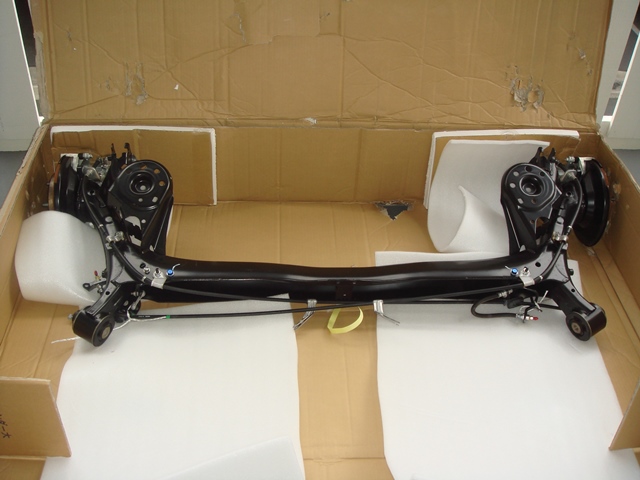

Here are the pictures:
They are practically BRAND NEW, coming from a 2012 RS model car that had been subjected
to flood and thus cannot be sold as complete car anymore.
but since they are basically just steel part and painted, there are no corrosion damage.
the seller said that this is from FRESH WATER Flood which mean not the Japan Tsunami
but the Thailand Flood that happened last year.
if this is electronic parts, I would NOT buy it, but since this is Mechanical Part,
I am ready to take the risk and turn out the reward is good for me
I just check the movement of the hub and it seemed that the bearing is OK,
but if worst came to worst, I can just replace the bearing and get it from US Dealer
because the part number for that bearing is available here.
The next few weeks will be FUN for me
Here are the pictures:
Last edited by BMW ALPINA; 04-25-2013 at 03:26 PM.
#3
This is an AWESOME project thread that I look forward to updates on!!!
If rear axle members are available like this... should open up some awesome project ability to Noth America continent spec'd cars Who want's to research what a GD4 drive train will cost
If rear axle members are available like this... should open up some awesome project ability to Noth America continent spec'd cars Who want's to research what a GD4 drive train will cost
#5
Thank You Wafulz and Thank You TPColgett,
Wafulz, if you have free time, please come by to my place
so you can check it yourself
TPColgett,
is GD4 a 4wd version of GD fit ?
what is a GD4? Pardon my ignorance but I am really
not familiar with any Honda Fit model before I bought one 3 months ago
#6
My update would be slow though hahaha
I am following your method of modification
I had ordered from Amazon a caliper paint.
I am going to paint this rear caliper yellow,
because in the future I plan to have front big brake kit
with yellow caliper, but that got to wait because
my cash flow rule from my wife again just kick in hahaha
(like a VTEC kick in in high rpm hahaha)...
I also need to dissamble the rotor so I can see the bearing,
just want to make sure.
I also need to buy Progress rear sway bar so when install this
rear axle it will be at the same time.
Also need to buy Spoon Rigid Collar for the rear axle bolt
just to make sure it will be more rigid at the axle joint
last need to buy Mugen JDM RS Brake line (for disk brake car),
and it have 6 BRAKE LINES !!! 4 for rear and 2 for front.
I check the CRZ brake line available in US and they only have 4 lines on their kit. but if you do a rear disk brake conversion on a HOnda Fit
you would need 4 brake line just for the rear axle alone...
so remember if you in the future decide to buy a rear disk brake upgrade kit for your car,
get the JDM brake line kit which had 6 lines total.
Don't buy US CRZ goodridge or Fit kit which only have 4 lines in total.
#7
Shhhh... it's my secret... lol.. if people knew how long I've been sitting on some parts I'd get banned.
Great info!!!!
If I go the flange route it's just a CRZ brakeline swap, but if I get the JDM rear I need the Mugen RS (GE8)lines... I didn't know that... you've done quite a bit of research/modding in only 3 months.
.....last need to buy Mugen JDM RS Brake line (for disk brake car),
and it have 6 BRAKE LINES !!! 4 for rear and 2 for front.
I check the CRZ brake line available in US and they only have 4 lines on their kit. but if you do a rear disk brake conversion on a HOnda Fit
you would need 4 brake line just for the rear axle alone...
so remember if you in the future decide to buy a rear disk brake upgrade kit for your car,
get the JDM brake line kit which had 6 lines total.
Don't buy US CRZ goodridge or Fit kit which only have 4 lines in total.
and it have 6 BRAKE LINES !!! 4 for rear and 2 for front.
I check the CRZ brake line available in US and they only have 4 lines on their kit. but if you do a rear disk brake conversion on a HOnda Fit
you would need 4 brake line just for the rear axle alone...
so remember if you in the future decide to buy a rear disk brake upgrade kit for your car,
get the JDM brake line kit which had 6 lines total.
Don't buy US CRZ goodridge or Fit kit which only have 4 lines in total.
If I go the flange route it's just a CRZ brakeline swap, but if I get the JDM rear I need the Mugen RS (GE8)lines... I didn't know that... you've done quite a bit of research/modding in only 3 months.
#8
Ill be there sunday after noon
Brake lines i just got the 4pc set Owell when the time comes ill will just buy the 6pc
As for rear sway bar ALPINA my friend gots a cusco one siting around text me if u want it
Brake lines i just got the 4pc set Owell when the time comes ill will just buy the 6pc
As for rear sway bar ALPINA my friend gots a cusco one siting around text me if u want it
#9
Shhhh... it's my secret... lol.. if people knew how long I've been sitting on some parts I'd get banned.
Great info!!!!
If I go the flange route it's just a CRZ brakeline swap, but if I get the JDM rear I need the Mugen RS (GE8)lines... I didn't know that... you've done quite a bit of research/modding in only 3 months.
Great info!!!!
If I go the flange route it's just a CRZ brakeline swap, but if I get the JDM rear I need the Mugen RS (GE8)lines... I didn't know that... you've done quite a bit of research/modding in only 3 months.
no, if you go Flange Route,
you also need JDM Rear lines.
why because there are 2 lines that connect the steel tube brake line at
the joint of the rear axle on you current drum brake set up,
plus
then you need another brake line to connect (after using male to male adaptor) from the current line that enter your brake drum to your new
caliper.
so you need the JDM lines whther you are doing swap like me or
doing the bracket/flange route.
if you just buy 4 lines, then you are still having rubber line on your rear brake system.
and your pedal will still be a bit spongy because of this.
check on my picture #7 from top,
you will see another brake line near the bolt that connect the axle to the chassis.
that one is already on our drum brake fit now.
#10
the cusco rear sway bar is only 16mm...
I think it is better to buy the thicker Progress sway bar for this rear axle.
especially since I heard this disk brake rear axle is heavier then the drum brake rear axle,
so I think it need more stiffness of swaybar to control it better.
#11
Haha and one that would be $$$$, maybe $$$$$ I'm SURE, especially since they made like only 80+ Whp to start, and if your going to go to all the trouble and $, your going to want to double if not tripple that output
Wafulz:If you don't take up this offer I may try to convince the HellaFit crew to road trip out and do so!!!
BMW ALPINA: You are correct, the GD3 is the chassis code for the GD cars from 2007-2008 received here in the North American market (as well as several other markets overseas.) The GD4 is the chassis code of a Fit model sold in Japan and I THINK Russia, ONLY that has a 4wd drive train
I COMPLETELY know this situation.
ANY car project, you either have the time but not the $, or the $ and not the time OR Significant other approval to carry it through to completeion
Oh really now...
You can say that again!!! I am always SUPER excited to see new members take the plunge and take on exciting projects, especially when they seem to have BMW ALPINA's budget AND enthusiasm
Thank You Wafulz and Thank You TPColgett,
Wafulz, if you have free time, please come by to my place
so you can check it yourself
TPColgett,
is GD4 a 4wd version of GD fit ?
what is a GD4? Pardon my ignorance but I am really
not familiar with any Honda Fit model before I bought one 3 months ago
Wafulz, if you have free time, please come by to my place
so you can check it yourself
TPColgett,
is GD4 a 4wd version of GD fit ?
what is a GD4? Pardon my ignorance but I am really
not familiar with any Honda Fit model before I bought one 3 months ago
BMW ALPINA: You are correct, the GD3 is the chassis code for the GD cars from 2007-2008 received here in the North American market (as well as several other markets overseas.) The GD4 is the chassis code of a Fit model sold in Japan and I THINK Russia, ONLY that has a 4wd drive train
I had ordered from Amazon a caliper paint.
I am going to paint this rear caliper yellow,
because in the future I plan to have front big brake kit
with yellow caliper, but that got to wait because
my cash flow rule from my wife again just kick in hahaha
(like a VTEC kick in in high rpm hahaha)...
I am going to paint this rear caliper yellow,
because in the future I plan to have front big brake kit
with yellow caliper, but that got to wait because
my cash flow rule from my wife again just kick in hahaha
(like a VTEC kick in in high rpm hahaha)...
ANY car project, you either have the time but not the $, or the $ and not the time OR Significant other approval to carry it through to completeion
You can say that again!!! I am always SUPER excited to see new members take the plunge and take on exciting projects, especially when they seem to have BMW ALPINA's budget AND enthusiasm
#12
ahh i c otay no wonder he has not sold i guess its good for a base model
if you just buy 4 lines, then you are still having rubber line on your rear brake system.
and your pedal will still be a bit spongy because of this.
check on my picture #7 from top,
you will see another brake line near the bolt that connect the axle to the chassis.
that one is already on our drum brake fit now.
i just seen that extra line i was like wtf that lol : /
if you just buy 4 lines, then you are still having rubber line on your rear brake system.
and your pedal will still be a bit spongy because of this.
check on my picture #7 from top,
you will see another brake line near the bolt that connect the axle to the chassis.
that one is already on our drum brake fit now.
i just seen that extra line i was like wtf that lol : /
#15
Hello,
this is the link for 6 piece kit made by Goodrige for Japan JDM model,
Goodridge (
but I think the seller is from Hong Kong although he/she advertise on Yahoo Japan... so I am not too sure about buying from this vendor.
There is also another one (Goodridge) on eBay UK:
but it is EXPENSIVE:
Goodridge Honda Jazz (Japan Spec Rear Disc) Braided Brake Kit Lines Hoses | eBay
but on this UK vendor you can choose THE COLOR of the outer jacket !!!
Still, I think I will buy the Mugen one because
the Mugen one should had the exact factory style mounting
and on the rear axle there are several unique mounting that might not
be utilized if you used Goodridge (this is just my guess).
Here are the link for the Mugen one:
Amazon.co.jp: こちらもどうぞ: 無限 マイクロメッシュブレーキライン【リアディスクブレーキ車】 46400-XLF-K1S0 ホンダ GE6/GE7/GE8/GE9
this is the link for 6 piece kit made by Goodrige for Japan JDM model,
Goodridge (
but I think the seller is from Hong Kong although he/she advertise on Yahoo Japan... so I am not too sure about buying from this vendor.
There is also another one (Goodridge) on eBay UK:
but it is EXPENSIVE:
Goodridge Honda Jazz (Japan Spec Rear Disc) Braided Brake Kit Lines Hoses | eBay
but on this UK vendor you can choose THE COLOR of the outer jacket !!!
Still, I think I will buy the Mugen one because
the Mugen one should had the exact factory style mounting
and on the rear axle there are several unique mounting that might not
be utilized if you used Goodridge (this is just my guess).
Here are the link for the Mugen one:
Amazon.co.jp: こちらもどうぞ: 無限 マイクロメッシュブレーキライン【リアディスクブレーキ車】 46400-XLF-K1S0 ホンダ GE6/GE7/GE8/GE9
#17
but the truth is I am just an old person who used to like driving fast,
and only wish I could still be driving fast
(but realistically I cannot and should not do that anymore),
but
now just a POSER who only do this rear brake modification for LOOKS
what I have now is called, Mid Life Crisis hahaha
#19
because as soon as I read that post from Alltrac,
I immediately try to find out about the CR-Z kit available here in US,
and I found out that
all of them stated only have 4 lines !!!
I guess the maker of the kits do not looks at the rubber hose
near the axle bolt mounting
and they thought the only hose at the rear are the one that connect
to the rear disk brake on CR-Z.
that is why those brake kit for CR-Z (US vendor one) are cheaper
compare to the Fit with 6 line.
if you check, Mugen also offer 4 line kit (cheaper) for Honda Fit with Drum brake the 2 for front and 2 for the one that near the axle bolt.
#20
For Your Information,
you can always buy directly from Goodridge UK !
I use to buy direct from them when I have my motorcycle racing team.
Problem is you had to know what kind of hose, type of fitting, banjo bolt type and diameter etc etc... also length of each hose.
or you send them your stock factory brake hose sample and they will COPY it using Goodridge material for you.
the color of the outer jacket is also amazing, there is the carbon color, but what I used to like is the red color
in combination with the Kevlar Jacket (not stainless steel braided but KEVLAR).
They have several kind of hose size and material. I used to buy their smallest diameter hose with Kevlar jacket which provide the Stiffest pedal feel/pressure while also very lightweight.
I also use the stainless steel fitting because they look better then the zinc plated one...
but that was like 10 years ago... and I used to buy in large quantity so
I got IMPORTER PRICE discount !!!
and now I am too lazy to spec out my brake line directly with Goodridge UK...
I am just going to buy standard mugen one... hahaha
you can always buy directly from Goodridge UK !
I use to buy direct from them when I have my motorcycle racing team.
Problem is you had to know what kind of hose, type of fitting, banjo bolt type and diameter etc etc... also length of each hose.
or you send them your stock factory brake hose sample and they will COPY it using Goodridge material for you.
the color of the outer jacket is also amazing, there is the carbon color, but what I used to like is the red color
in combination with the Kevlar Jacket (not stainless steel braided but KEVLAR).
They have several kind of hose size and material. I used to buy their smallest diameter hose with Kevlar jacket which provide the Stiffest pedal feel/pressure while also very lightweight.
I also use the stainless steel fitting because they look better then the zinc plated one...
but that was like 10 years ago... and I used to buy in large quantity so
I got IMPORTER PRICE discount !!!
and now I am too lazy to spec out my brake line directly with Goodridge UK...
I am just going to buy standard mugen one... hahaha
Last edited by BMW ALPINA; 04-25-2013 at 06:45 PM.
