Talking DIY - GE8 footwell illumination, ambient lights & glovebox illumination

My wife requested that I put in footwell illumination lights into her Fit like I have done with my other cars, so I decided to also try out the ambient light kit…..well I didn’t like where the instructions told me to place them since the drivers seemed too far into the footwell, while the passengers would be further out and most likely visible. The color of the light modules are also more of a dark teal than 470nm wavelength blue, so I modified and also put some lights in the gloveboxes.

Well it came out better than I expected so I thought I'd share:

Footwell Illumination (door open/unlock)
Click the image to open in full size.

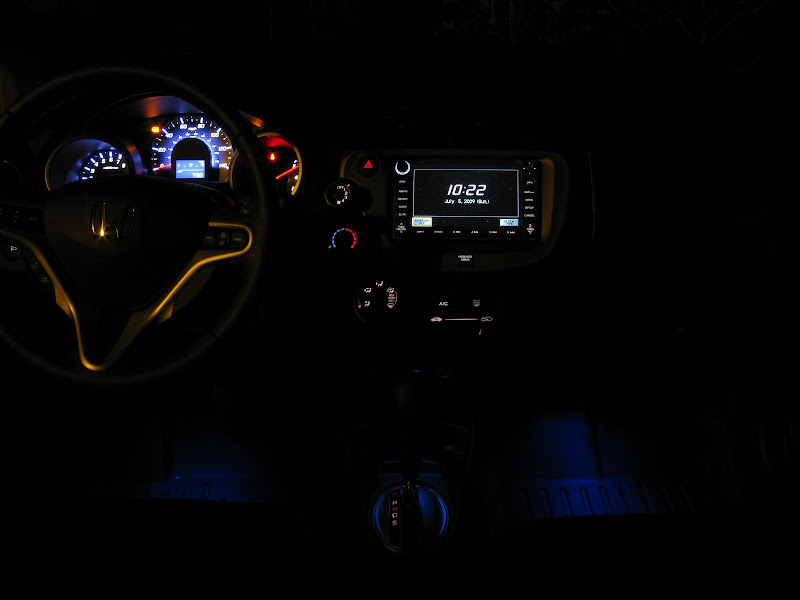

Ambient Lights (parking lights or headlight switch on)
Click the image to open in full size.

Ambient Lights (parking lights or headlight switch on) + upper glovebox open Click the image to open in full size.

Ambient Lights (parking lights or headlight switch on) + lower glovebox open
Click the image to open in full size.

Ambient Lights (parking lights or headlight switch on) + both gloveboxes open
Click the image to open in full size.

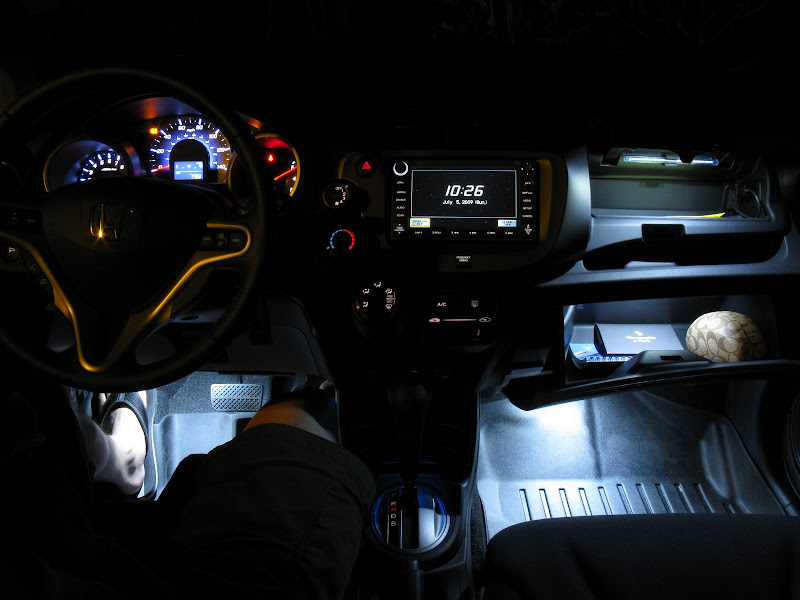

All open/on
Click the image to open in full size.


Since I didn’t like the light module placement and color of the ambient light kit, I used flux leds dimmed with 5.6kΩ resistors mounted inside the recessed area instead so that they’re completely hidden from view and angled better.

Circuits for the Flux LEDs
Click the image to open in full size.

Flux LED
Click the image to open in full size.

Flux LED leads through 4 holes
Click the image to open in full size.

Completed passenger side
Click the image to open in full size.
Click the image to open in full size.

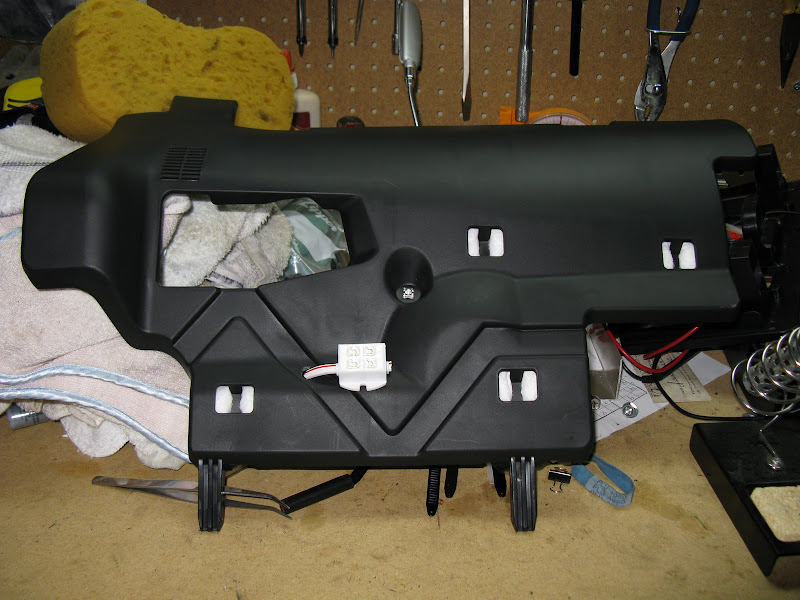

Also reused one of the light modules from the kit as the lower center cup holder area light.

Off center hole
Click the image to open in full size.

so that this
Click the image to open in full size.
Click the image to open in full size.

fits into this hole
Click the image to open in full size.

The glovebox lights are also wired to the parking lights

Upper glovebox
Click the image to open in full size.
Click the image to open in full size.

Lower glovebox
Click the image to open in full size.
Click the image to open in full size.

The switch was cut and bypassed for now so that the ambient lights & glovebox are always on with parking lights. I figured that if the blue bothers me enough I can use a switched audio potentiometer to turnoff and dim the ambient lights.

Cut and bypassed switch connector
Click the image to open in full size.

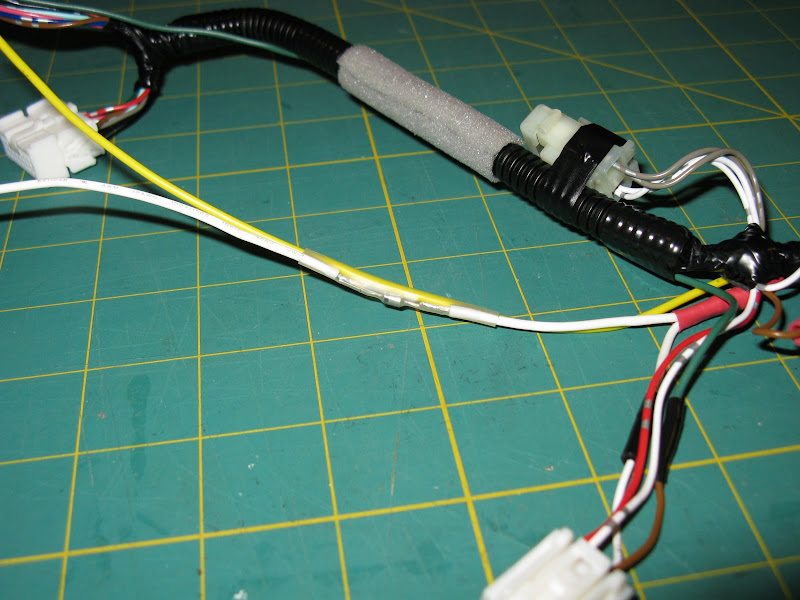

The switch itself was rewired to the footwell illumination with a diode. This enables the driver to turn on the footwell lights without turning on the domelight. This is for times when you need to look for stuff on the floor but can’t/don’t want to open a door, similar to the domelight switch:
Dash Switch OFF = footwell & domelight ON only with door(s) open
Dash Switch ON = footwell ON, domelight remains OFF
1N4748A Zener shown (mistakenly grabbed from my parts bin, 1N4001 50v peak Diode is what I actually used)
Click the image to open in full size.

Here’s the original ambient light kit harness
Click the image to open in full size.

Modified harness with glovebox light and center ambient
Click the image to open in full size.

Added footwell illumination wires
Click the image to open in full size.

G5/G7 are the pink(+12V) and blue(GND) pins on the dome light connector in the fuse box that comes from the MICU marked below. So the footwell lights will fade out and come on just like the domelights with unlocking/locking from the keyfob and opening/closing doors.
Click the image to open in full size.

Rear footwell illumination wires
Click the image to open in full size.

Click the image to open in full size.

Underside of driver's seat
Click the image to open in full size.

Underside of passenger's seat
Click the image to open in full size.

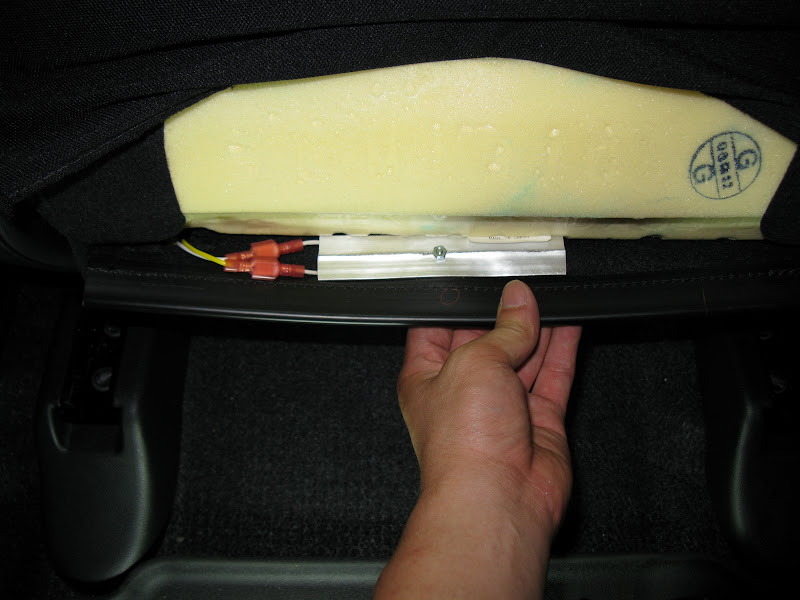

how the LED module is mounted in the seat
Click the image to open in full size.

Click the image to open in full size.

Finished rear footwell illumination
Click the image to open in full size.

From a lower angle
Click the image to open in full size.

Doors & Hatch open
Click the image to open in full size.

Sources for parts used:
superbrightleds.com for LEDs and modules
cheaphondaparts.com for Ambient Light Kit
Norvac/Fry’s/RadioShack for everything else

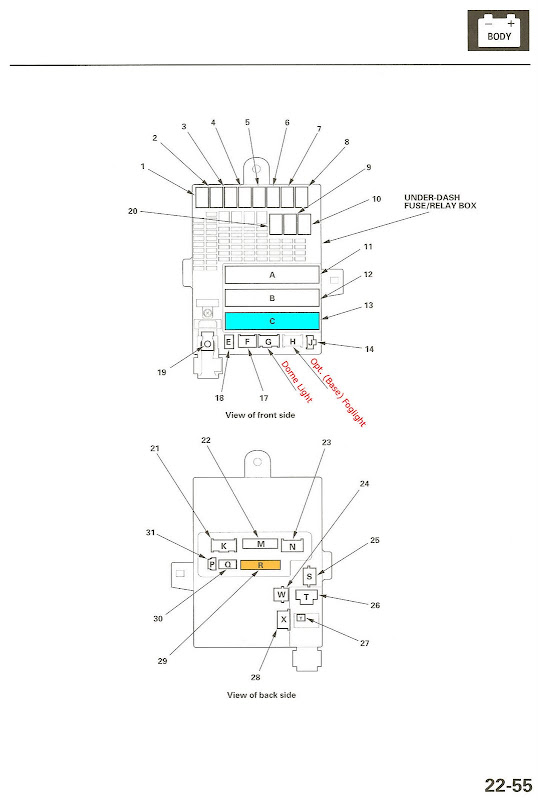

Last edited by Zalthras; 10-28-2009 at 03:21 PM.. Reason: added MICU scan
