DIY: FREE Loud Mouth Intake!!!
I recently did this on my fit and decided I'd throw up some pics for those of you who want a louder intake, but would rather not part with another cent.
WARNING: I'm not responsible for any injuries, errors, or other negative impacts of attempting this mod. This is posted for reference only and no guarantees are made.
Now on to how I made the "Loud Mouth" intake...
What You'll Need:
- Cutting wheel (or dremel with cutting disc)
- GOGGLES (ALWAYS wear safety goggles)
- Pliers
- Ratchet with 10mm Socket
- Sand Paper (Nothing too coarse or too fine)
- Phillips-head screw driver
First, start by removing your intake box. I don't have pics for this step, but I found it's easiest to first remove your battery, then remove the cover for the resonator chamber and for the MAF housing (be sure to unplug the sensor). Next remove the filter element and the 2 10mm-head bolts holding down the air box. Then unscrew the clamp that connects the air box to the throttle body, and remove the air tube from the air box.
Once you've removed the air box assembly take it to your cutting area. Flip the box over and start cutting the plastic under the filter housing.

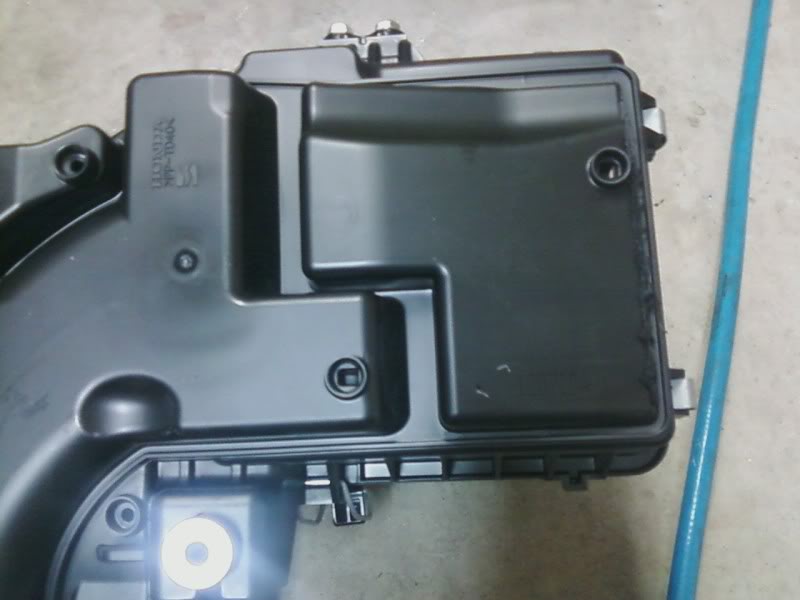

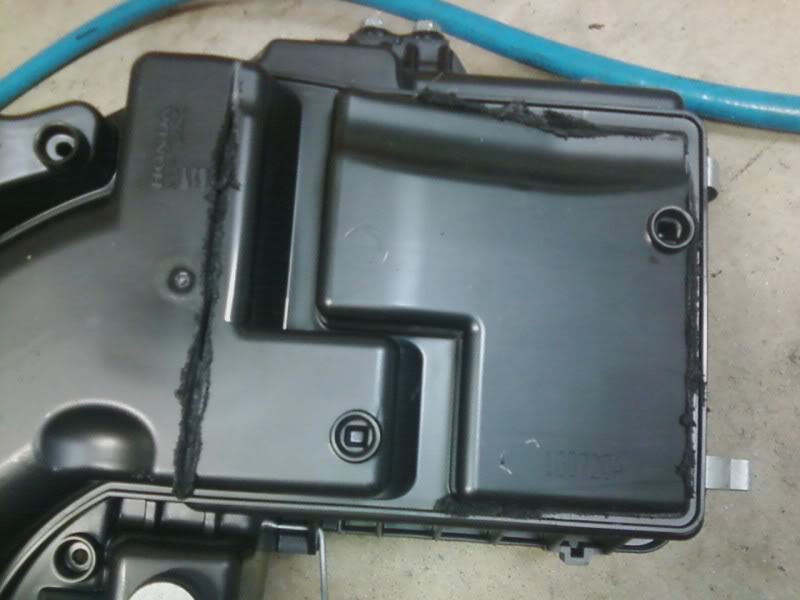

Be sure to only cut underneath where the filter sits. You should cut ahead of the indentation and Honda labeling, as seen below.

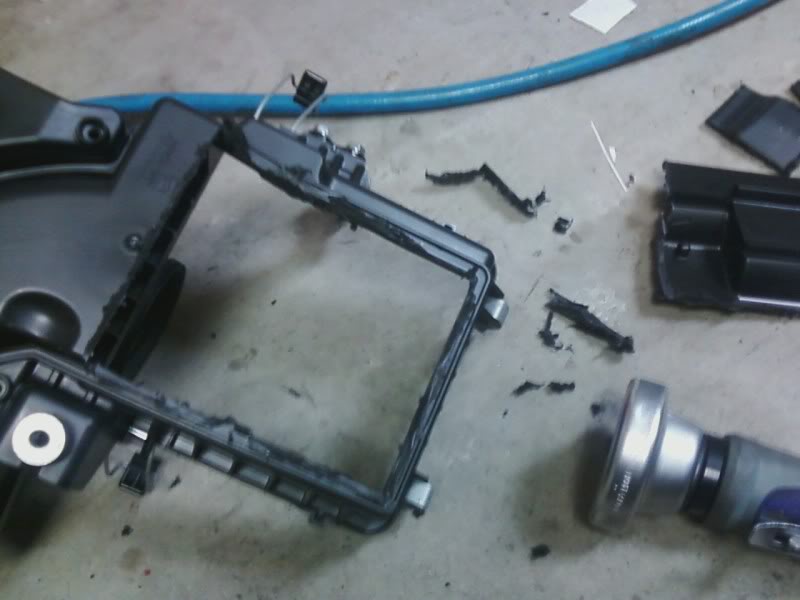

The easiest method of cutting I found was to cut the bottom out in pieces. Once the bottom has been cut out you will still see the interior divider piece.

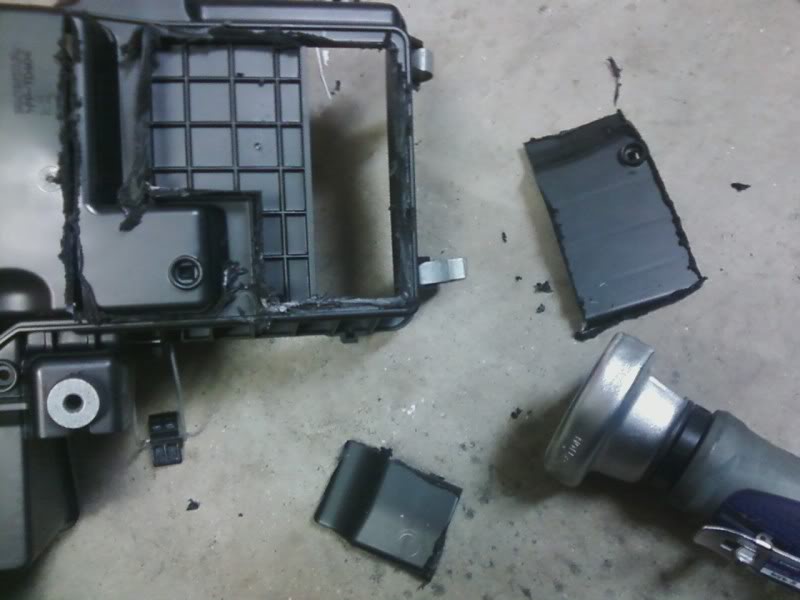

Cut out the interior divider piece.

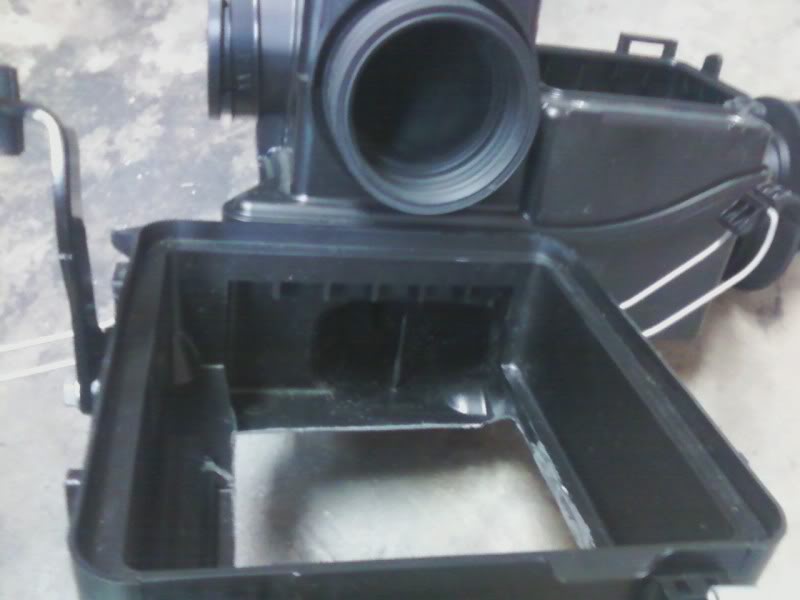

After you’ve completed cutting out the bottom and interior divider, inspect the housing from top and bottom. Use some sand paper to smooth out the cuts and remove any excess plastic.
After you’re done smoothing everything out, be sure to wipe down and clean the box. Then just reinstall it back in the car in the reverse order that you removed it.
WARNING: I'm not responsible for any injuries, errors, or other negative impacts of attempting this mod. This is posted for reference only and no guarantees are made.
Now on to how I made the "Loud Mouth" intake...
What You'll Need:
- Cutting wheel (or dremel with cutting disc)
- GOGGLES (ALWAYS wear safety goggles)
- Pliers
- Ratchet with 10mm Socket
- Sand Paper (Nothing too coarse or too fine)
- Phillips-head screw driver
First, start by removing your intake box. I don't have pics for this step, but I found it's easiest to first remove your battery, then remove the cover for the resonator chamber and for the MAF housing (be sure to unplug the sensor). Next remove the filter element and the 2 10mm-head bolts holding down the air box. Then unscrew the clamp that connects the air box to the throttle body, and remove the air tube from the air box.
Once you've removed the air box assembly take it to your cutting area. Flip the box over and start cutting the plastic under the filter housing.
Be sure to only cut underneath where the filter sits. You should cut ahead of the indentation and Honda labeling, as seen below.
The easiest method of cutting I found was to cut the bottom out in pieces. Once the bottom has been cut out you will still see the interior divider piece.
Cut out the interior divider piece.
After you’ve completed cutting out the bottom and interior divider, inspect the housing from top and bottom. Use some sand paper to smooth out the cuts and remove any excess plastic.
After you’re done smoothing everything out, be sure to wipe down and clean the box. Then just reinstall it back in the car in the reverse order that you removed it.
#3
Interesting, very interesting. DIY FTW! However, when I choose a part to modify I usually choose the cheapest one in the set to replace. In this case you have chosen the most expensive. That part can only be replaced as part of the full bottom assembly which will run you about $50 with shipping. But other than the expense of replacement I see nothing wrong with it. It does take out a couple of bends from the intake tract.
17201-RP3-A00
Honda CASE SET, AIR CLEANER
Selected FIT|2009|5|SPORT (SUZUKA PLANT)
37.70 + 12.69 for shipping.
17201-RP3-A00
Honda CASE SET, AIR CLEANER
Selected FIT|2009|5|SPORT (SUZUKA PLANT)
37.70 + 12.69 for shipping.
Last edited by Lyon[Nightroad]; 10-22-2010 at 12:44 AM.
#5
However, when I choose a part to modify I usually choose the cheapest one in the set to replace. In this case you have chosen the most expensive. That part can only be replaced as part of the full bottom assembly which will run you about $50 with shipping. But other than the expense of replacement I see nothing wrong with it.
17201-RP3-A00
Honda CASE SET, AIR CLEANER
Selected FIT|2009|5|SPORT (SUZUKA PLANT)
37.70 + 12.69 for shipping.
17201-RP3-A00
Honda CASE SET, AIR CLEANER
Selected FIT|2009|5|SPORT (SUZUKA PLANT)
37.70 + 12.69 for shipping.
#7
Judging from the design in the box, the divider serves the same purpose as the other resonator boxes. It helps create a pressure system inside the box to dampen the frequencies from inside the intake tract, thus quieting the sound from under the hood.
