KONI STR.T Orange Shocks
#21
Check if the shocks are making the squeak noise by squirting oil on the shock piston where it enters the shock body. if that makes it go away, then it's the shock's upper seal. warranty claim... it won't go away for long.
Cheers!
Chris
Cheers!
Chris
#22
hspatz,
Is yours still making noise? Installed mine and put about 1k miles on them and on of the rears is making some major squeaking noise at low speeds on bumps. If I stand on the doorsill and rock the car I can recreate the squeak. I'm thinking about taking and off and checking it out, but curious if you had/have the same noise.
Is yours still making noise? Installed mine and put about 1k miles on them and on of the rears is making some major squeaking noise at low speeds on bumps. If I stand on the doorsill and rock the car I can recreate the squeak. I'm thinking about taking and off and checking it out, but curious if you had/have the same noise.
Too bad Koni didn't do the smart thing and include all the hardware, so you do not need to reuse the old stuff. The front Konis have been perfect.
#23
Yes, I had same problem. I rocked my car by opening a rear door and pushing where the door meets the roof. I still get an intermittent thumping on one side when I hit moderate bumps, but not the squeaking. Make sure that the rubber grommets or dampers are put in properly. The flatter side must be toward the vehicle mounting surface and that means the bottom one is flat side up and the top one is flat side down. I used grease from a grease gun and spread it all around on those rubber items and between the large washer and the dust shield. All the squeaking went away.
Too bad Koni didn't do the smart thing and include all the hardware, so you do not need to reuse the old stuff. The front Konis have been perfect.
Too bad Koni didn't do the smart thing and include all the hardware, so you do not need to reuse the old stuff. The front Konis have been perfect.
#24
Agreed on the improvement in ride quality outweighing any noise.
Got this response from Koni if anyone is interested. The noise on one strut went away on its own, now my passenger side strut it making the noise. Haven't had a chance to try greasing it, but thought I'd put Koni's response.
"Thank you for contacting us here at KONI, and I am sorry to hear you are experiencing some issues with you STR.t damper. In most cases a noise, or squeaking guide seal from a new damper will eliminated itself with use and new friction introduced by the shock cycling over time. Other cases squeaks have be resolved by applying a light coat of lithium grease, or similar lubricant to the shocks rod near the guide seal. If the squeak continues, and no remedies seem to help in eliminating the noise, KONI will replace the shock under warranty. Details on how to file a warranty can be found here http://www.koni-na.com/warranty.cfm ."
Got this response from Koni if anyone is interested. The noise on one strut went away on its own, now my passenger side strut it making the noise. Haven't had a chance to try greasing it, but thought I'd put Koni's response.
"Thank you for contacting us here at KONI, and I am sorry to hear you are experiencing some issues with you STR.t damper. In most cases a noise, or squeaking guide seal from a new damper will eliminated itself with use and new friction introduced by the shock cycling over time. Other cases squeaks have be resolved by applying a light coat of lithium grease, or similar lubricant to the shocks rod near the guide seal. If the squeak continues, and no remedies seem to help in eliminating the noise, KONI will replace the shock under warranty. Details on how to file a warranty can be found here http://www.koni-na.com/warranty.cfm ."
#26
Yes, I had same problem. I rocked my car by opening a rear door and pushing where the door meets the roof. I still get an intermittent thumping on one side when I hit moderate bumps, but not the squeaking. Make sure that the rubber grommets or dampers are put in properly. The flatter side must be toward the vehicle mounting surface and that means the bottom one is flat side up and the top one is flat side down. I used grease from a grease gun and spread it all around on those rubber items and between the large washer and the dust shield. All the squeaking went away.
Too bad Koni didn't do the smart thing and include all the hardware, so you do not need to reuse the old stuff. The front Konis have been perfect.
Too bad Koni didn't do the smart thing and include all the hardware, so you do not need to reuse the old stuff. The front Konis have been perfect.
#30
Ok great. I paid about that. Thought it was a great deal considering what they normally go for. I am excited to pair it with the sportline springs I have sitting around.
#31
I'm sure you will enjoy these with your new springs, I love how my car drives now after shock/spring upgrade! Good luck and let us know your results!
Last edited by FittinglyFittedFit; 05-29-2015 at 10:09 PM.
#32
After reading some more about the Konis on FF, I decided to pick up the removal bump stops/sleeves for the GK. Looks like Jhn got it to fit around the konis no problem, so i'll give it a shot. for 5 bucks each, can't go wrong.
Here's the part number:
52610-T5R-A02
Here's the part number:
52610-T5R-A02
#33
The Koni's include replacement metal sleeves because the OE sleeves are crimped onto the GE shocks. They're not crimped anymore on the GK; they just slide off, so I reused them. Actually, I didn't use any of the included Koni hardware. All of the OE is reusable.
This is how it looks assembled and mounted inside the tower:
Dissassembled. The upper pad that seats up in the tower just slides off. You can see the metal spacer inside. Slide the bumps top/ plastic shield on the Koni first, then the tower assembly which has the washer that stops on the shock shaft seat, bump stop withplastic shield attached, insert into the tower of the car and install the top hat assembly and tighten it down. It took me longer to write this than to do it. Super easy:
These shocks kick-ass!!
Last edited by jhn; 05-30-2015 at 12:24 PM.
#35
jhn,
just received an email from bernardi that the part for the sleeve is no longer and must be bought with the whole assembly. boohoo.
so you're saying with the Konis they come with the dust cover/sleeve that was needed to be removed from the oem strut?
just received an email from bernardi that the part for the sleeve is no longer and must be bought with the whole assembly. boohoo.
so you're saying with the Konis they come with the dust cover/sleeve that was needed to be removed from the oem strut?
#39
Here are mine

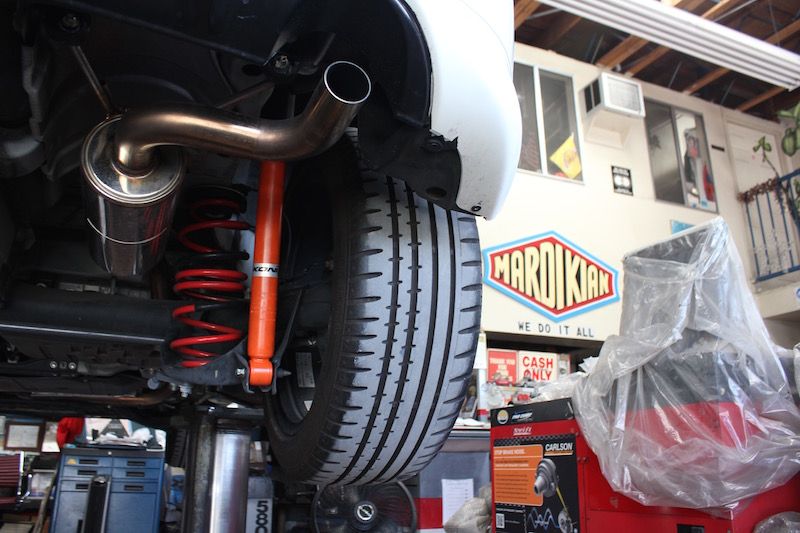

Rear

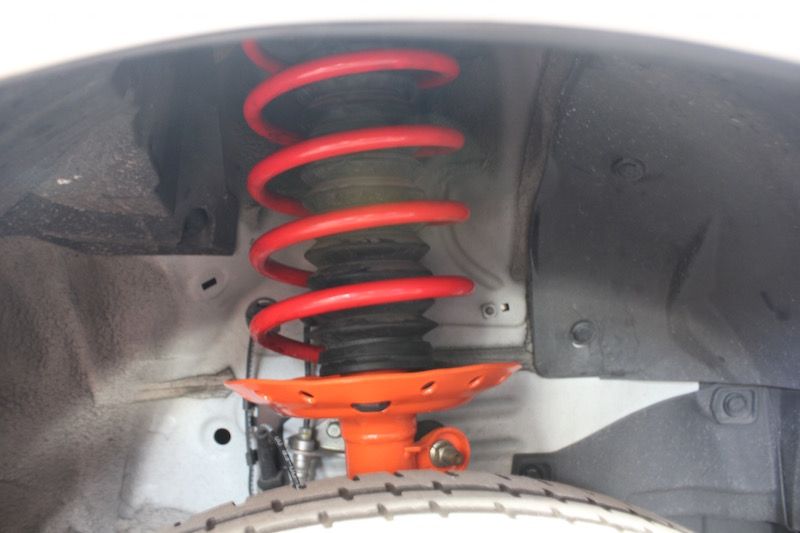

Front
Last edited by Waiz; 06-01-2015 at 05:03 PM.
