Ferrari 458 Italia Paint Correction by Tru Shine Detailing



I was invited up to Bristol VA by my good friend David Purser of Unique Mobile Detailing to help work on this Ferrari 458 Italia. Surprisingly, with only 600 miles on the car, these cars do not get delivered to the customer in perfect condition. There were lots of paint defects and sand scratches and buffer trails all over the car. This car received a full paint correction and a quick interior clean up, so with that being said, let's get this write up going.

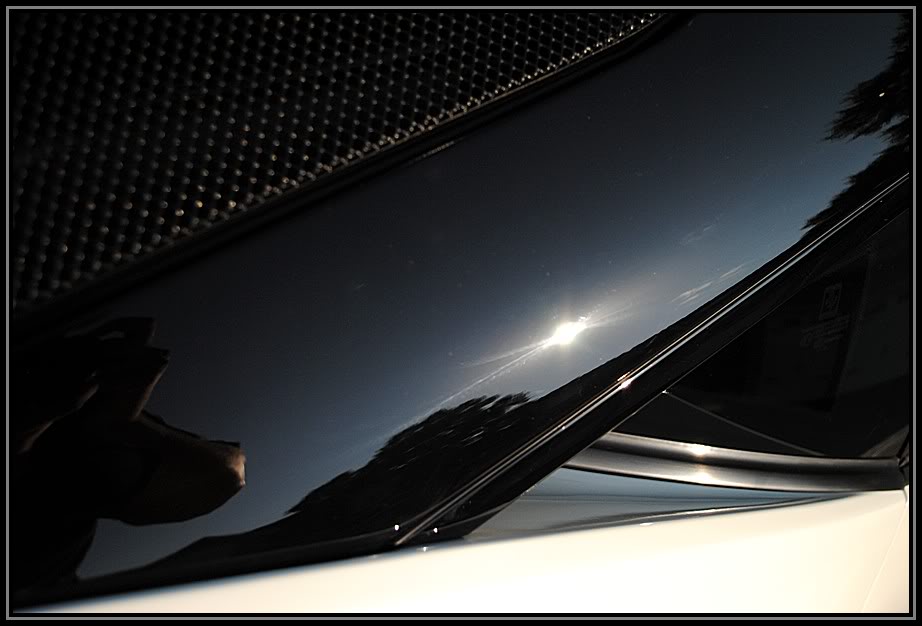

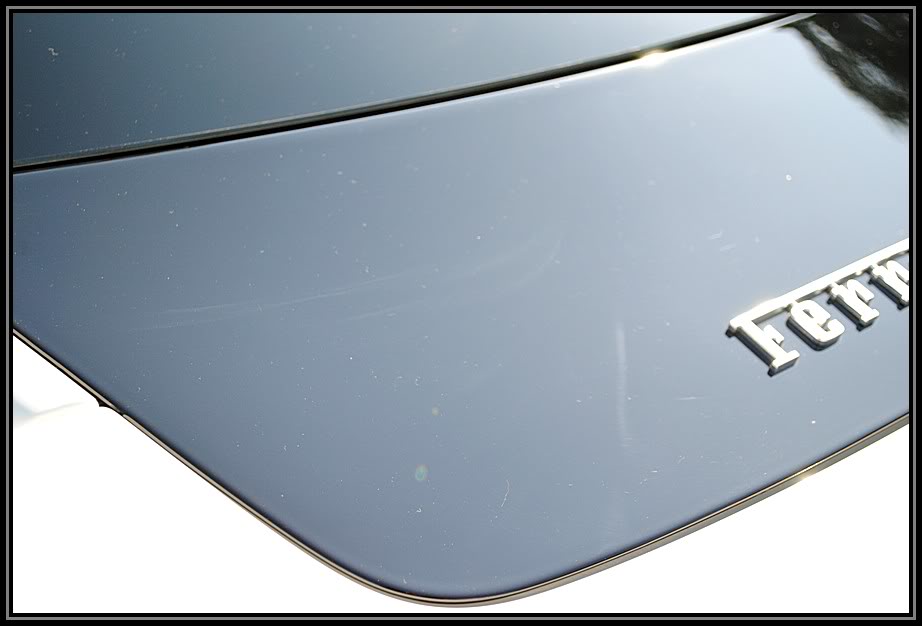

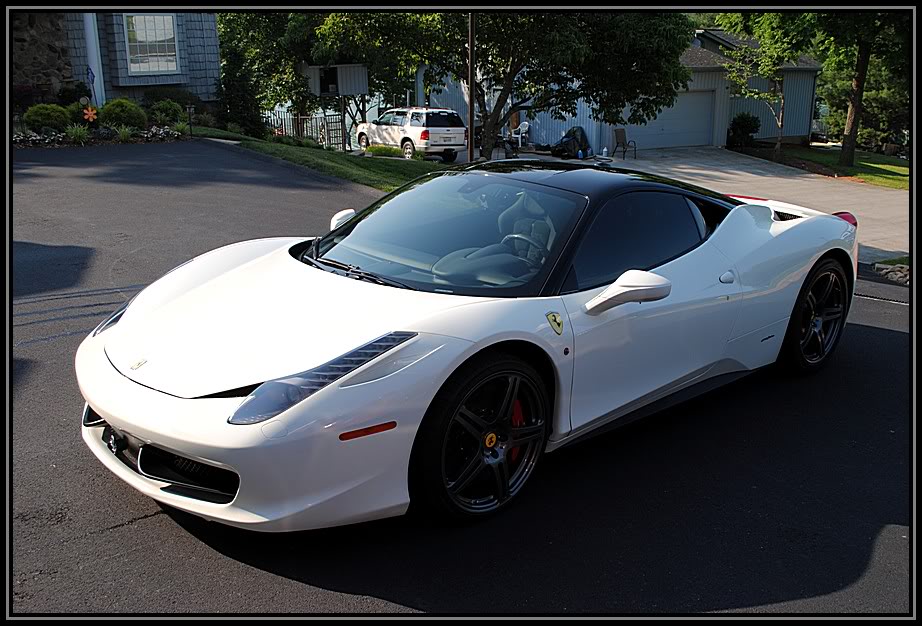

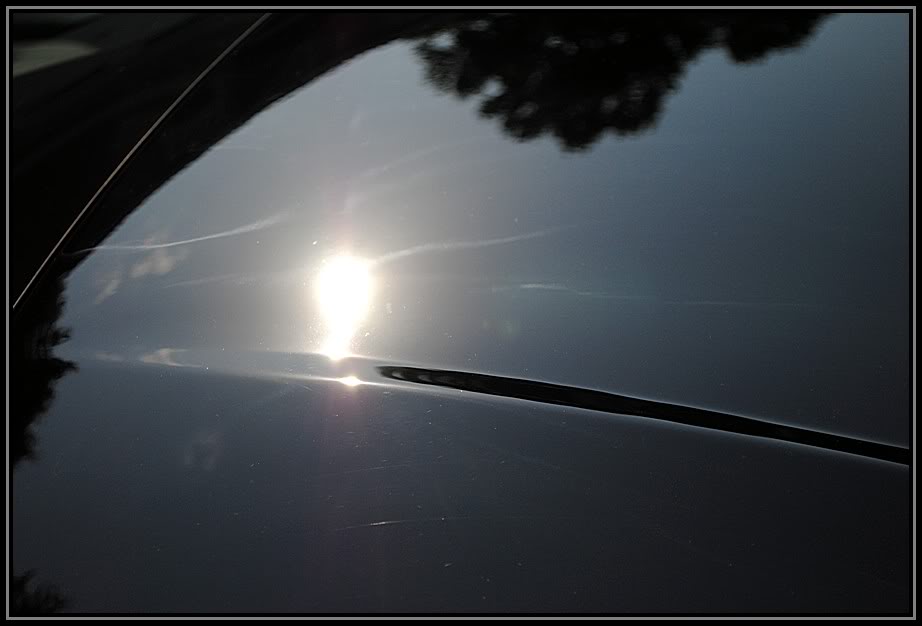

We pulled the car outside to see what exactly we were working with. In these pics you can see all of the holograms and buffer trails not only on the black, but you can see them on the while also.

Name:  c00315c3.jpg
Views: 427
Size:  126.7 KB

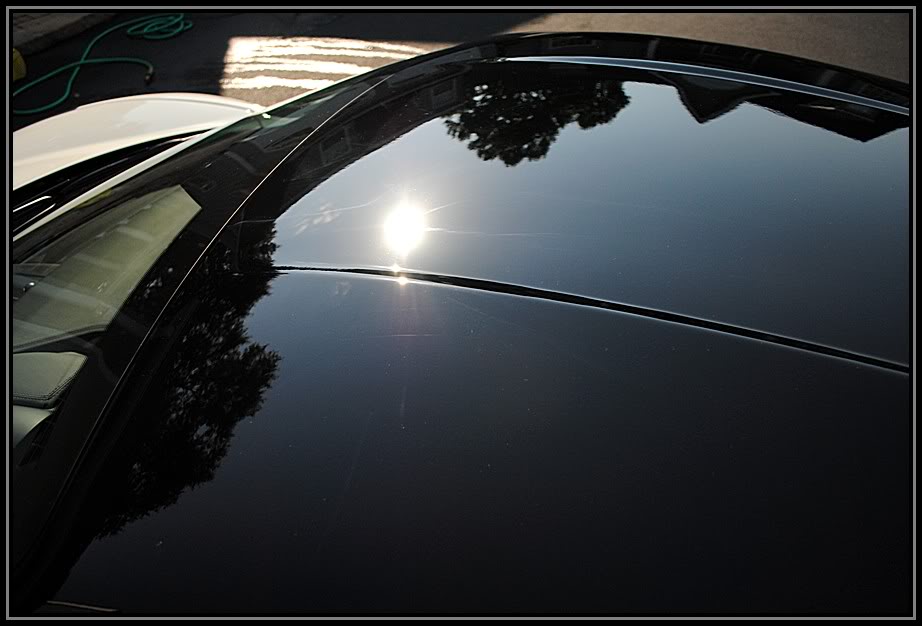

buffer trails on the roof

Name:  450dabf9.jpg
Views: 255
Size:  38.9 KB

Name:  f70072b7.jpg
Views: 248
Size:  62.1 KB

Name:  f1f17685.jpg
Views: 217
Size:  45.2 KB

Name:  a5df97c5.jpg
Views: 191
Size:  59.2 KB

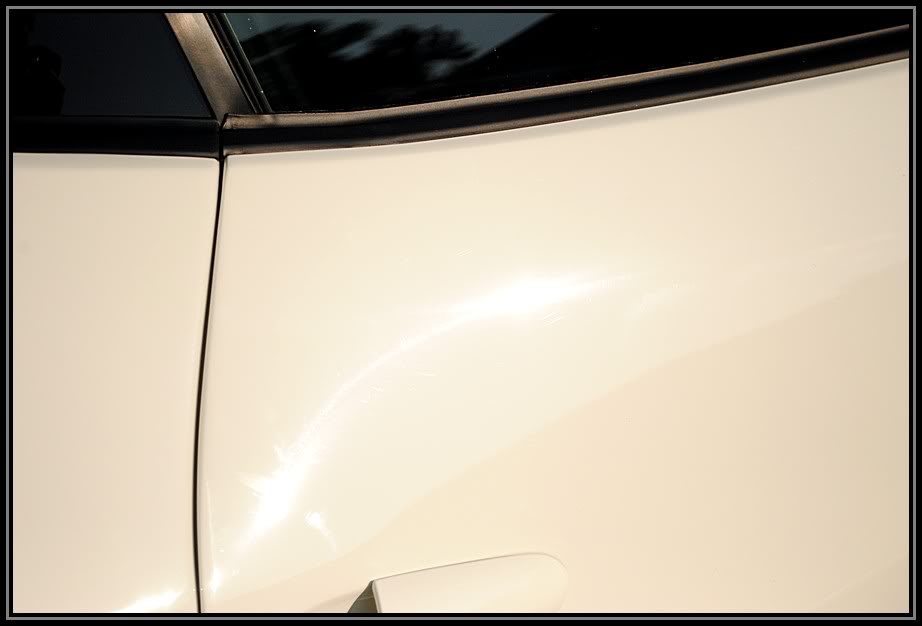

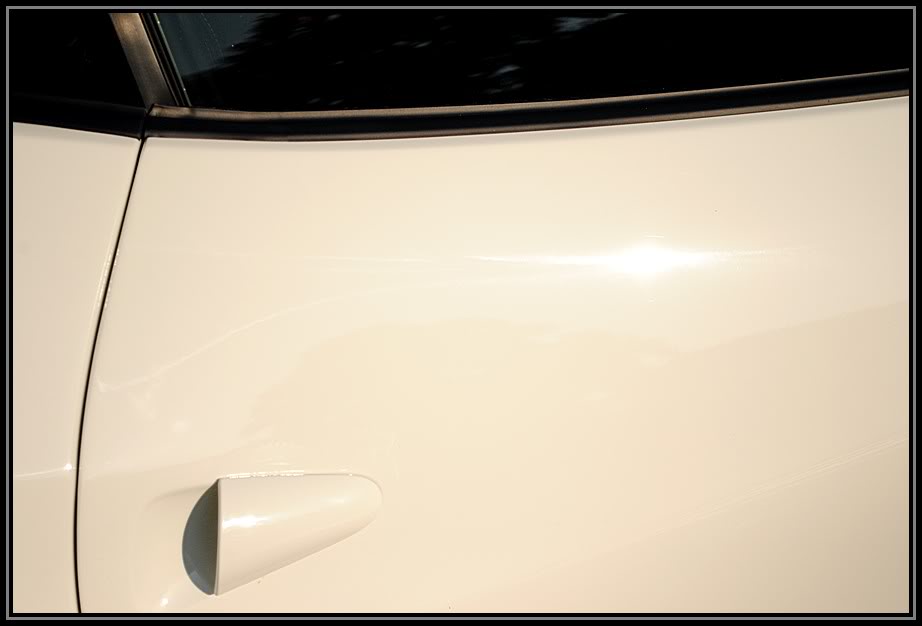

also on and around the doors

Name:  75a5b138.jpg
Views: 201
Size:  31.9 KB

Name:  af17a926.jpg
Views: 183
Size:  33.9 KB

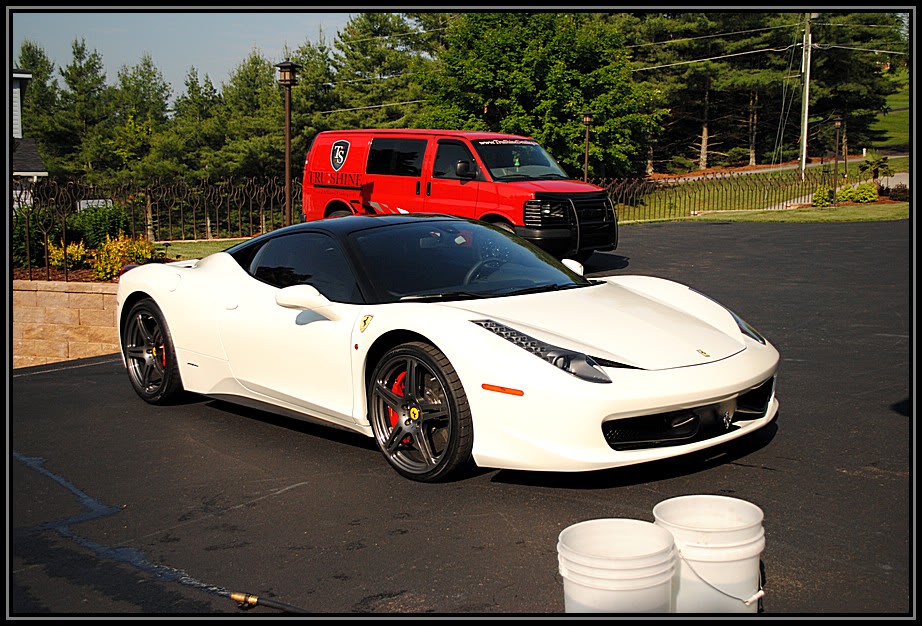

So for the Wash process, it's always good to start with cleaning the wheels first. This will help prevent water from just setting on the paint surface increasing the chances of causing water spots on the paint and glass.

Name:  685c0fb2.jpg
Views: 233
Size:  165.2 KB

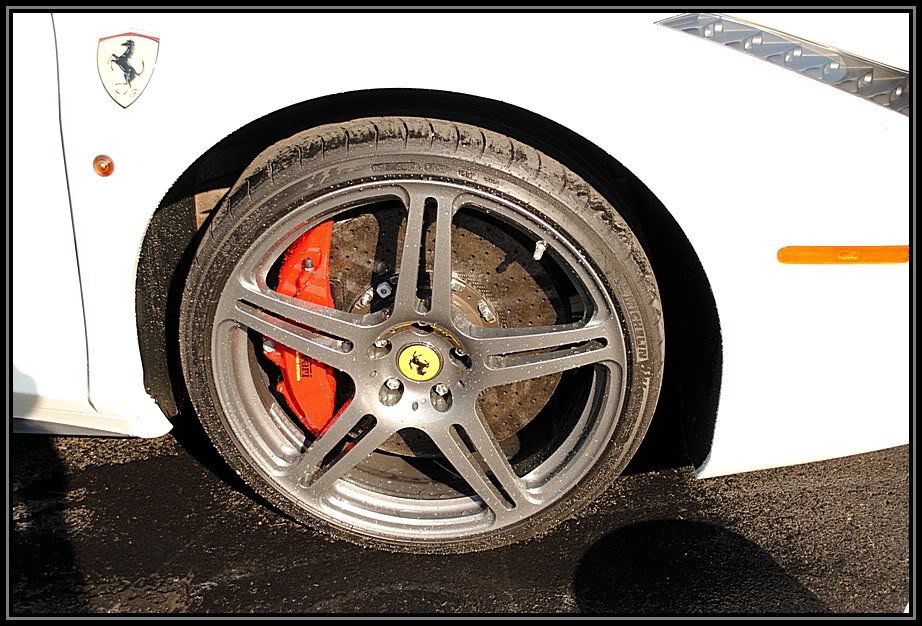

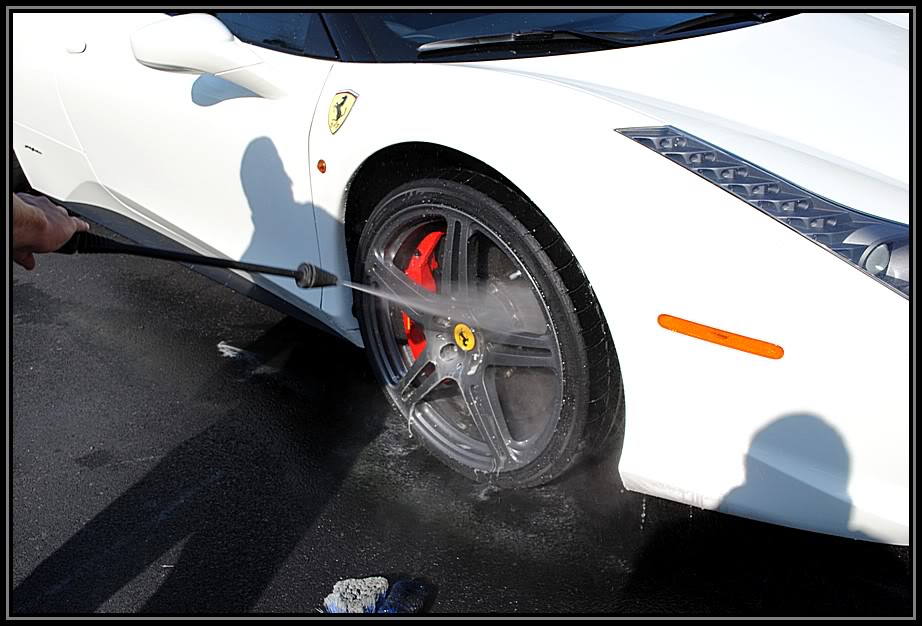

First the wheels were pre-rinsed to dislodge and loose debris

Name:  8acebc28.jpg
Views: 209
Size:  149.1 KB

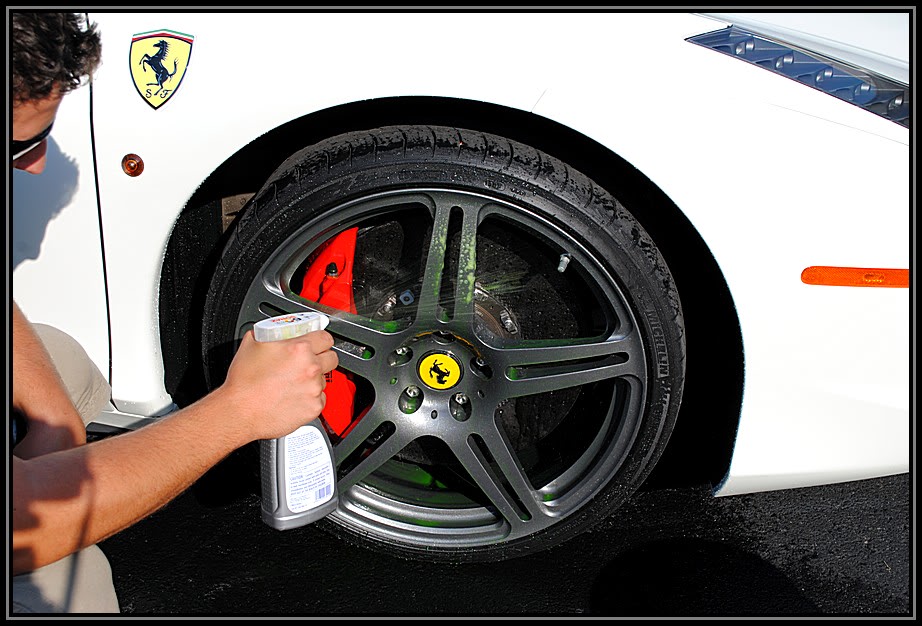

Then we Used some Sonax Full Effect wheel cleaner to clean the wheels. This is a pH balanced wheel cleaner that is safe for all types of wheels and brakes and when sprayed on the wheels, it will activate with the iron particles and turn to a red color letting you know it is working.

Name:  77aeffff.jpg
Views: 196
Size:  125.3 KB

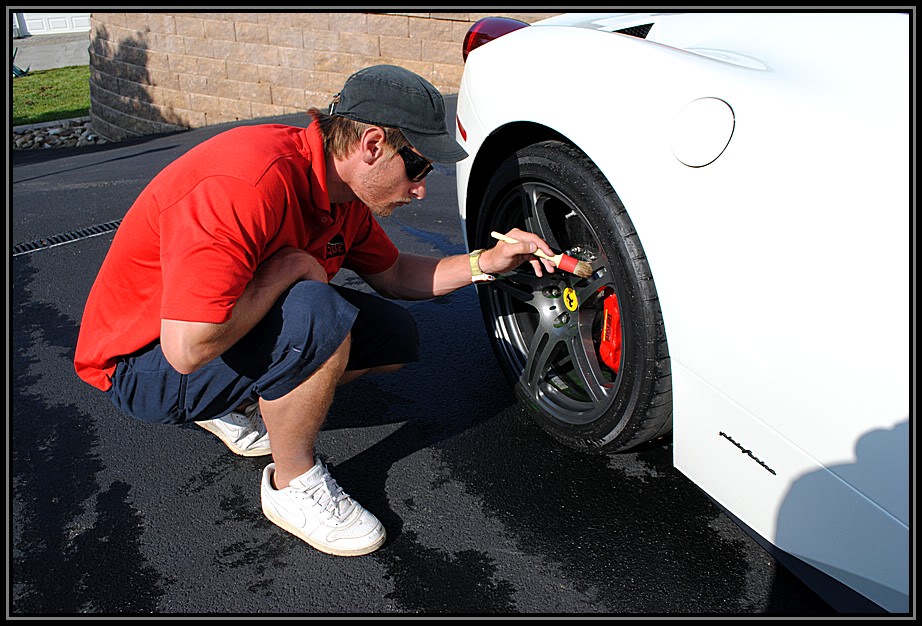

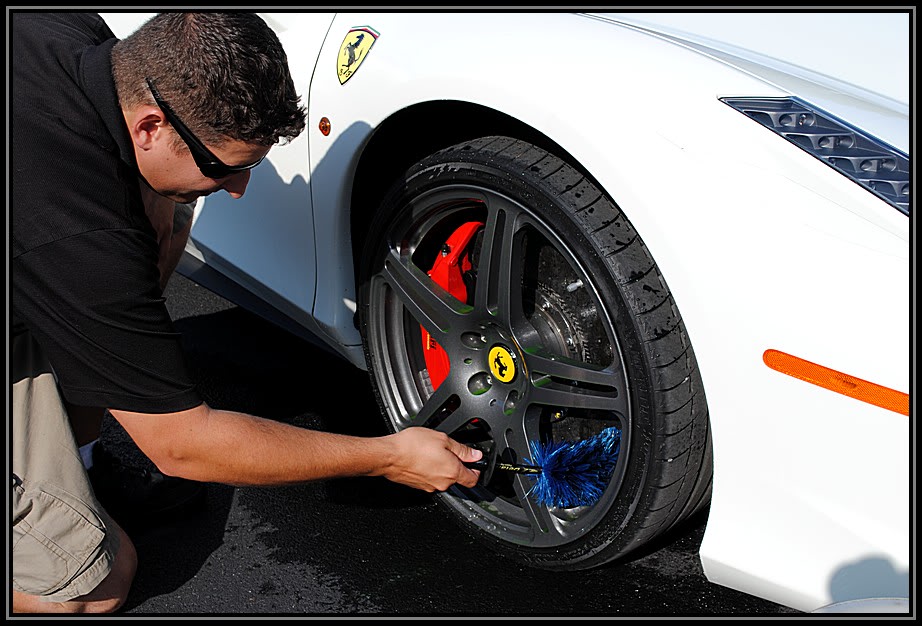

after the wheel cleaner was left to dwell for a few minutes, we then agitated them with various wheel brushes such as the EZ detail brush and the Swissvax brush to get deep into the wheels and all the tight areas.

Name:  d7f22377.jpg
Views: 263
Size:  120.3 KB

Name:  377ce3c3.jpg
Views: 202
Size:  136.0 KB

Name:  0e830f35.jpg
Views: 241
Size:  97.9 KB

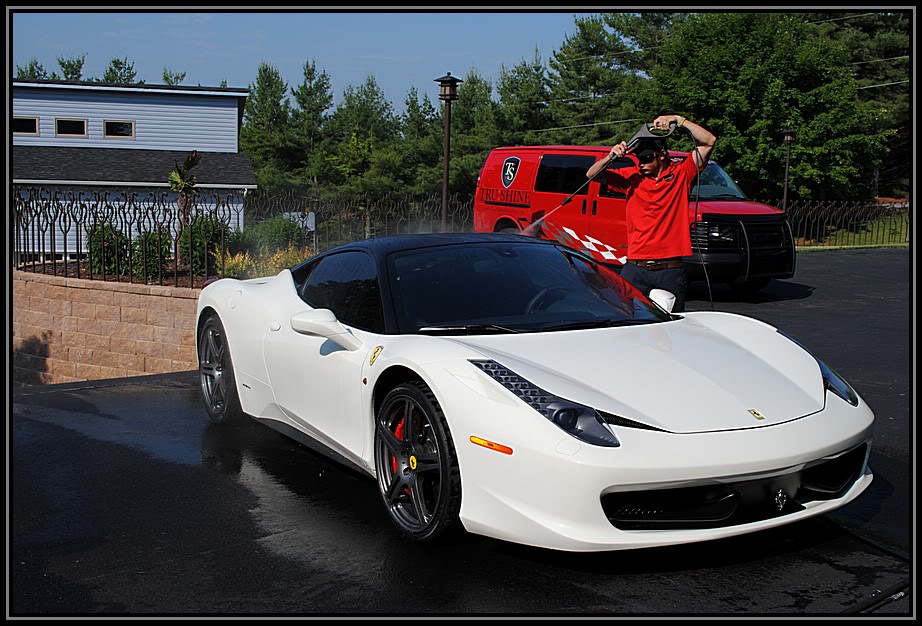

Next we pre-rinsed the car down making sure that all loose debris were knocked off, this helps make sure your not grinding anything into the paint when washing.

Name:  988688ad.jpg
Views: 212
Size:  142.3 KB

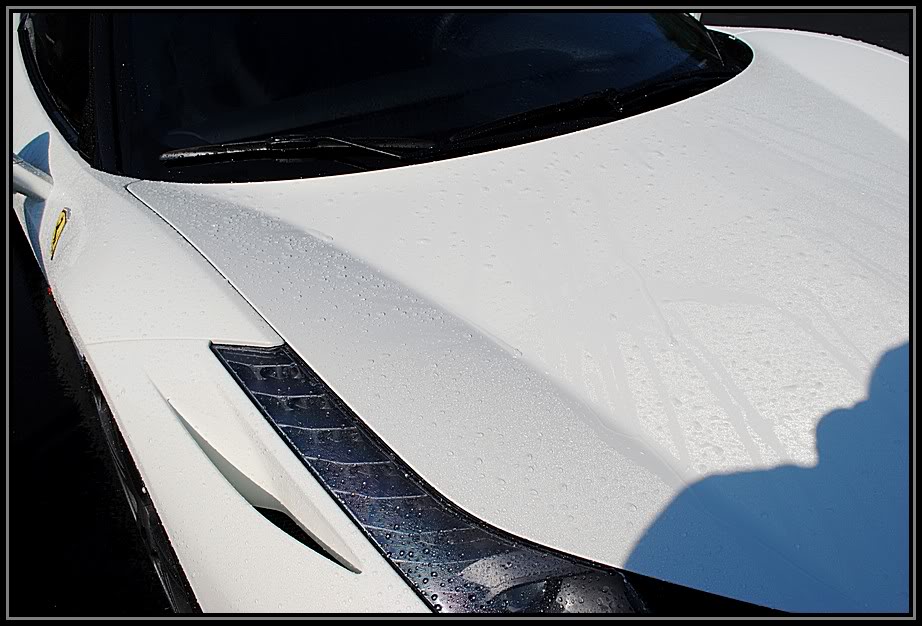

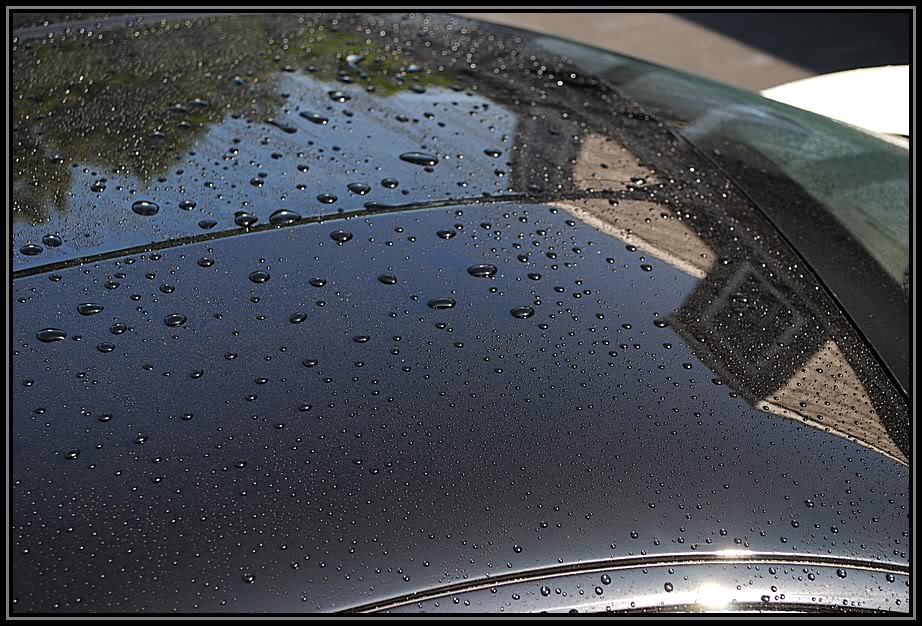

as you can tell from the water beading, there was some type of protection on the car, so it is a important step to remove all of this, so we will get a Tru correction later when the car is buffed on.

Name:  58a2a908.jpg
Views: 226
Size:  99.6 KB

Name:  d3b2dc1f.jpg
Views: 225
Size:  172.7 KB

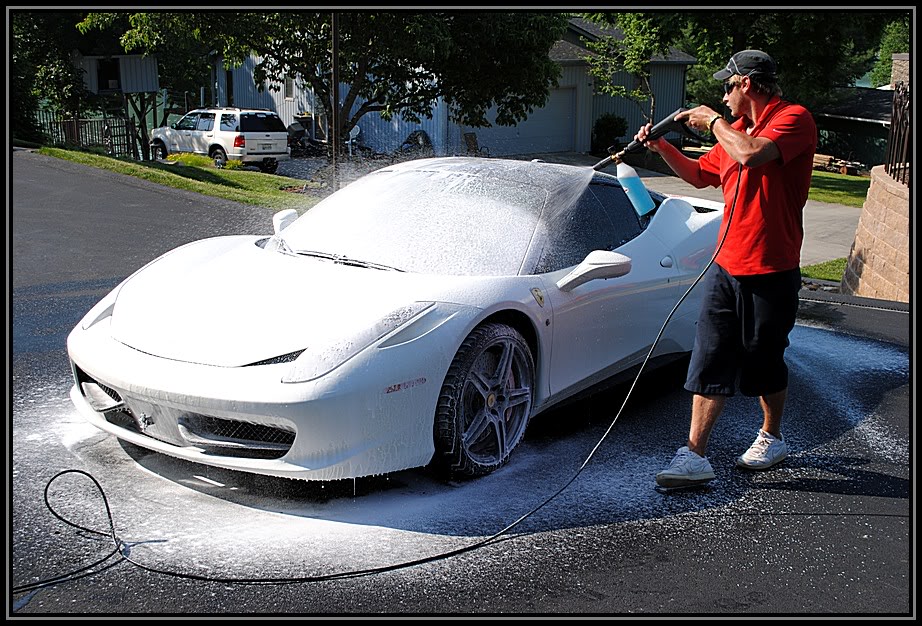

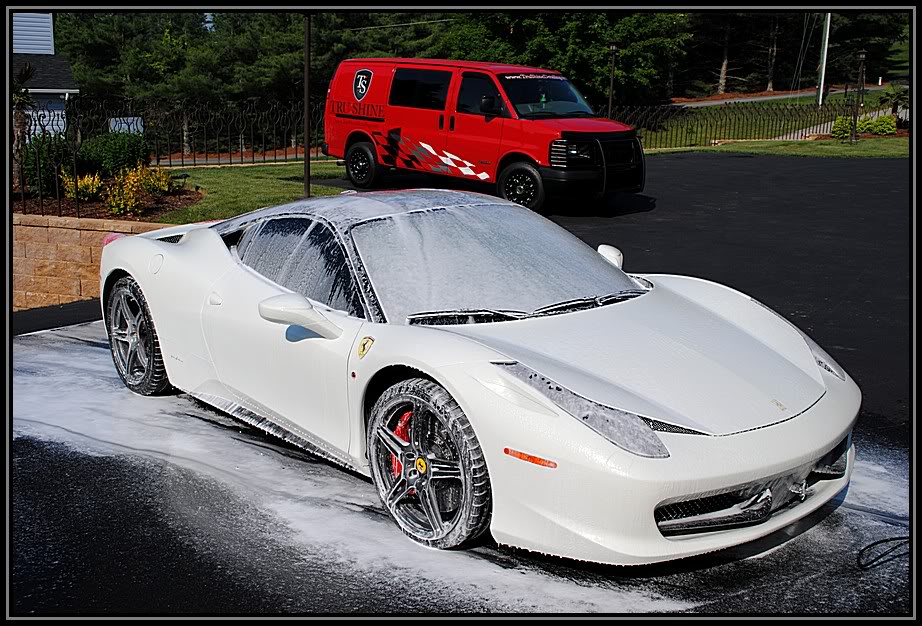

To strip the protection off of the car, we used a mixture of Dawn Ultra concentrate and some Degreaser mixed in the Foam canon.

Name:  10fa76cb.jpg
Views: 235
Size:  191.8 KB

Name:  4e69c123.jpg
Views: 253
Size:  160.2 KB

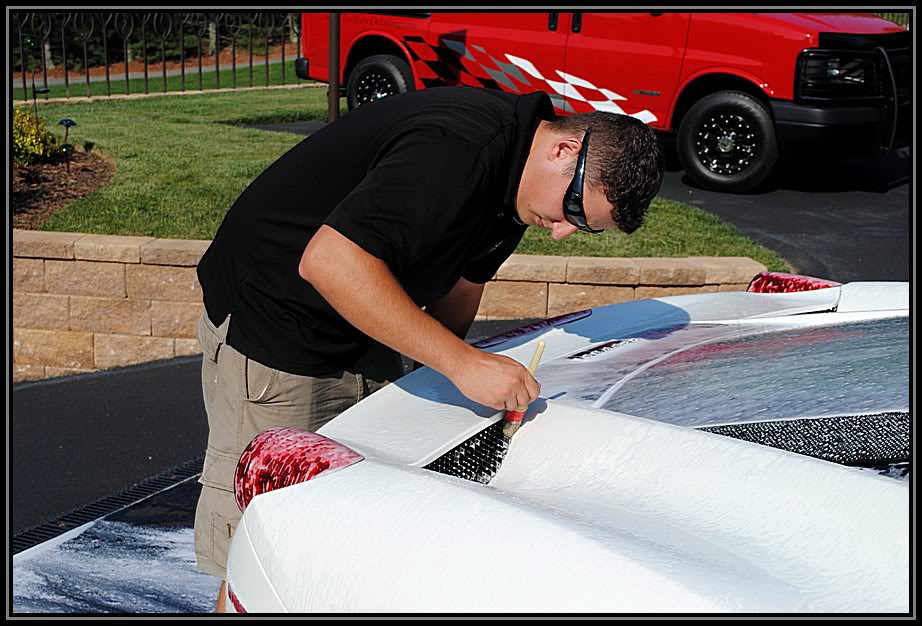

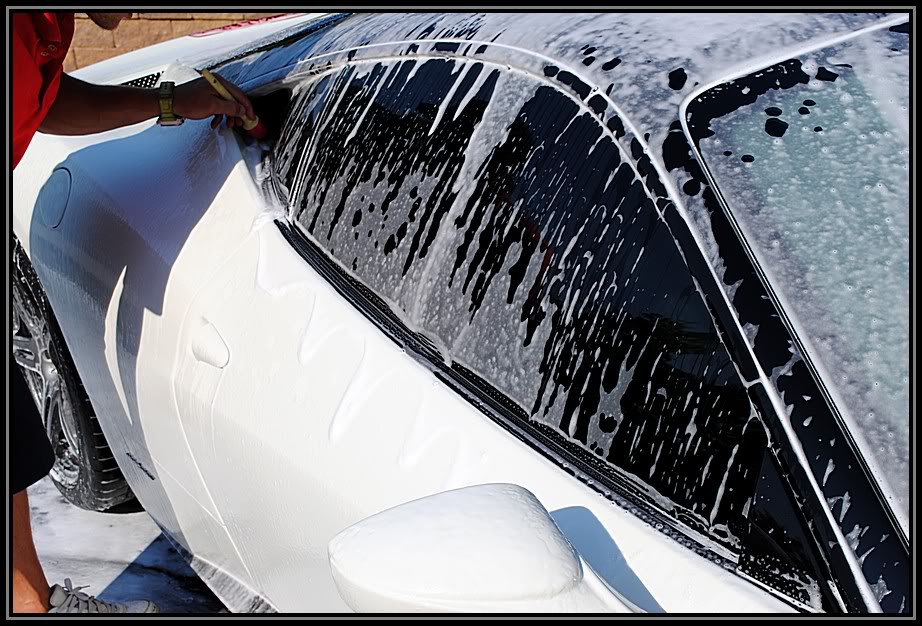

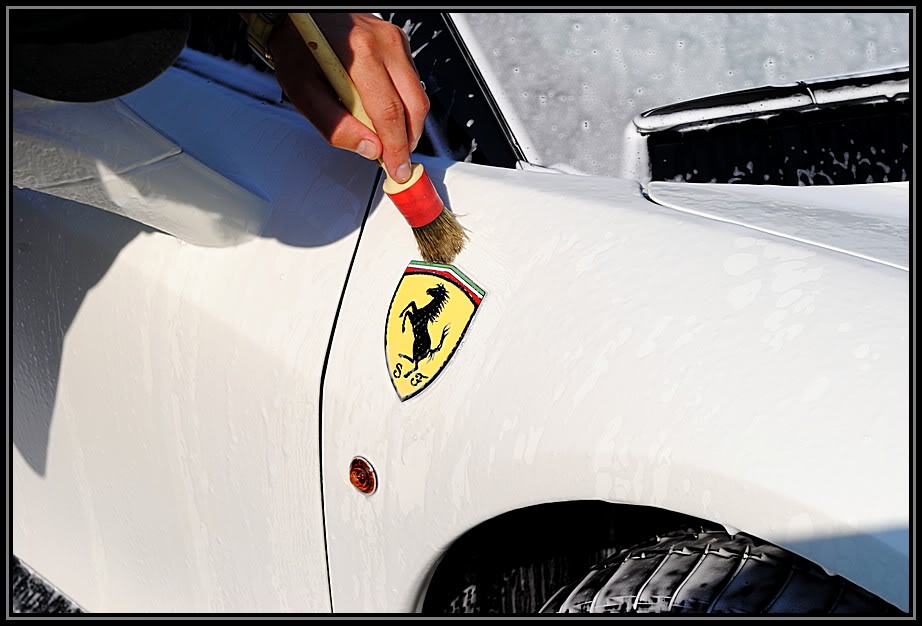

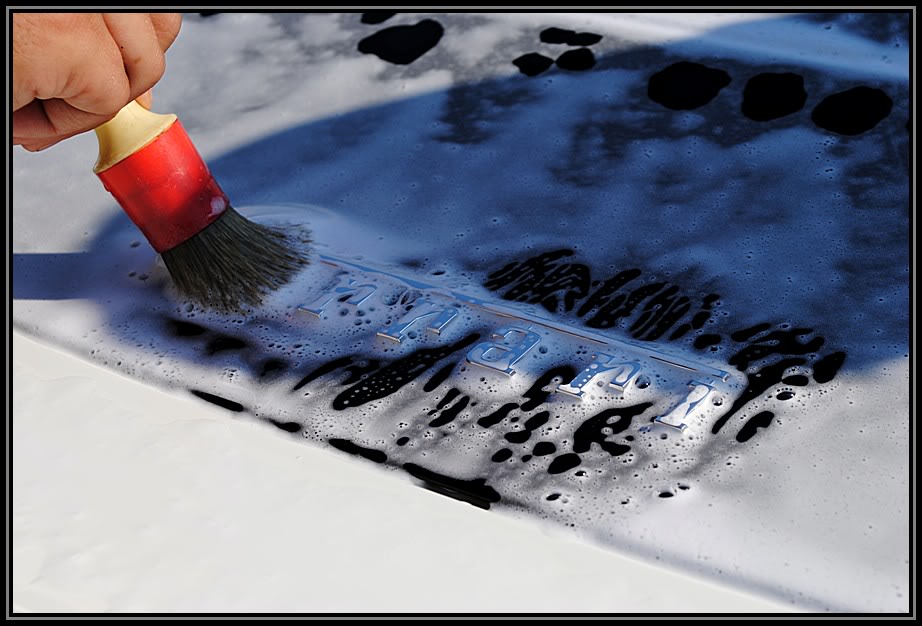

Then all crevices were agitated

Name:  83fc4981.jpg
Views: 185
Size:  150.5 KB

Name:  6b4944a8.jpg
Views: 194
Size:  78.8 KB

Name:  bab769c0.jpg
Views: 177
Size:  122.9 KB

Name:  19721b42.jpg
Views: 174
Size:  96.5 KB

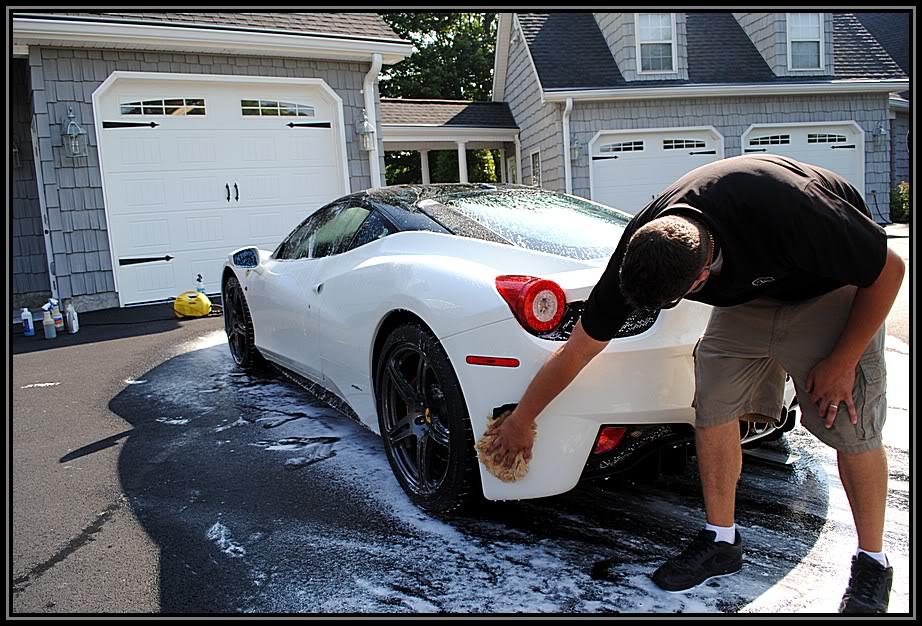

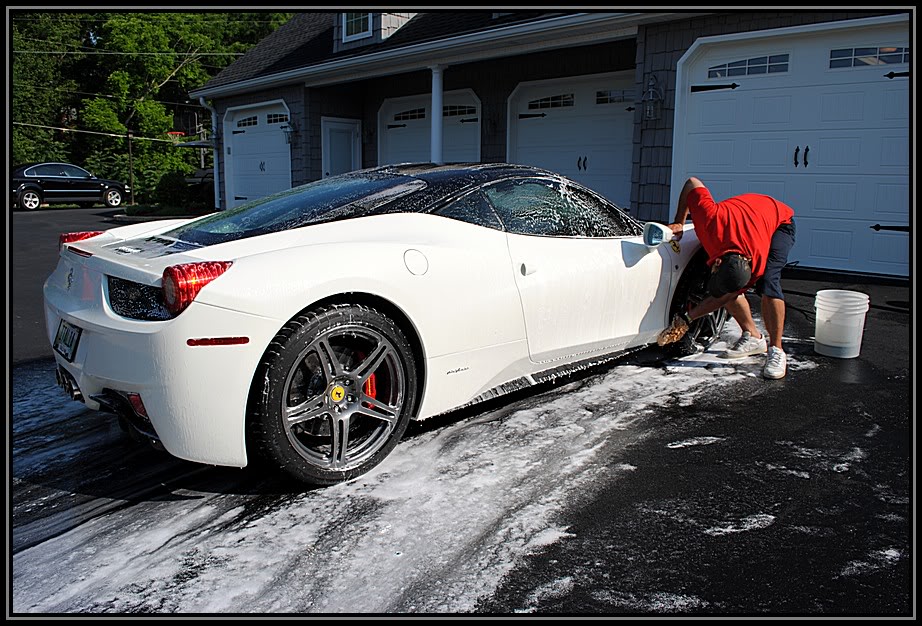

Then the car was washed using 100% sheep skin wash mitts and the two bucket method with Grit Guards in the each bucket.

Name:  b855d32a.jpg
Views: 211
Size:  169.3 KB

Name:  ba207d16.jpg
Views: 178
Size:  167.2 KB

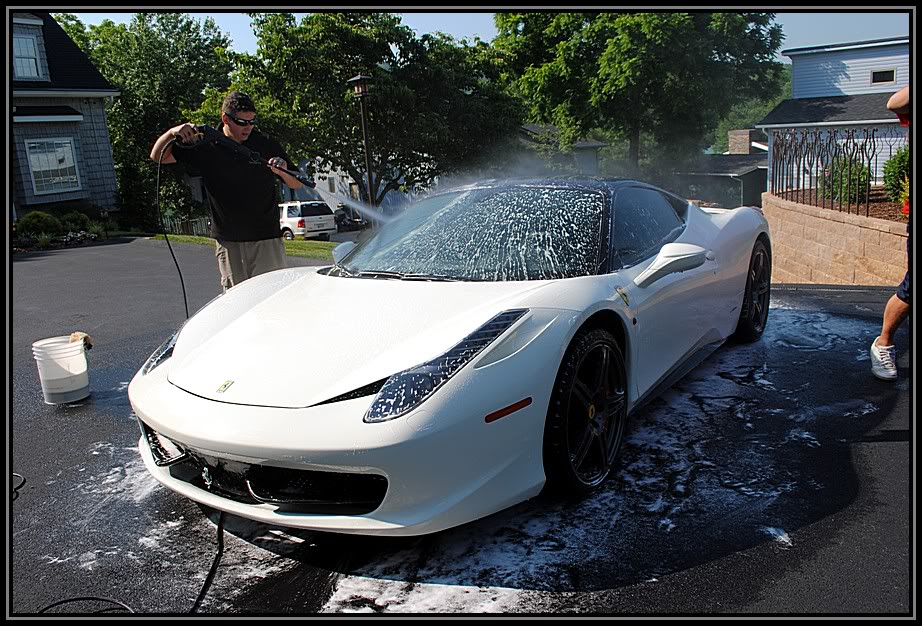

Then the car was rinsed

Name:  57d433fa.jpg
Views: 203
Size:  176.7 KB

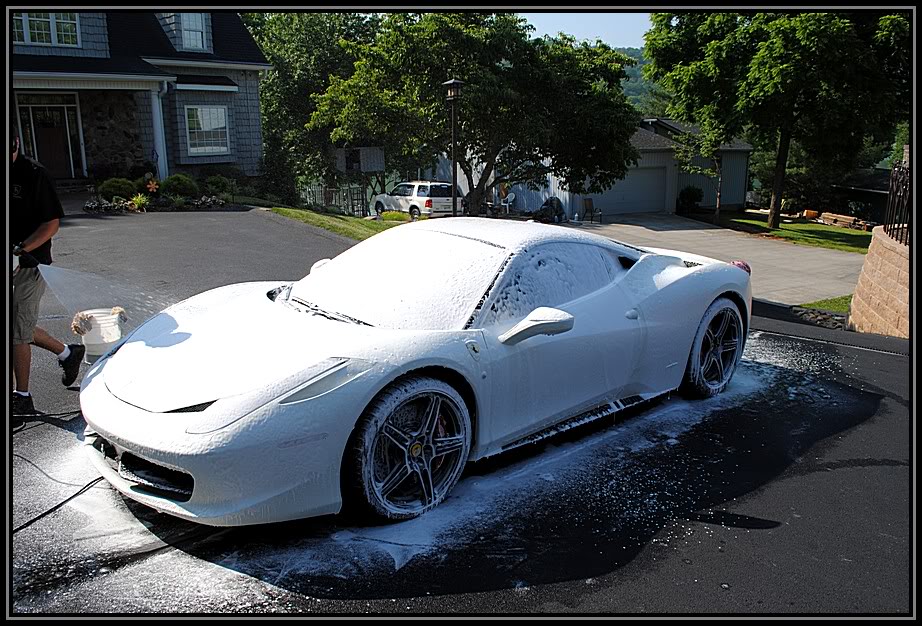

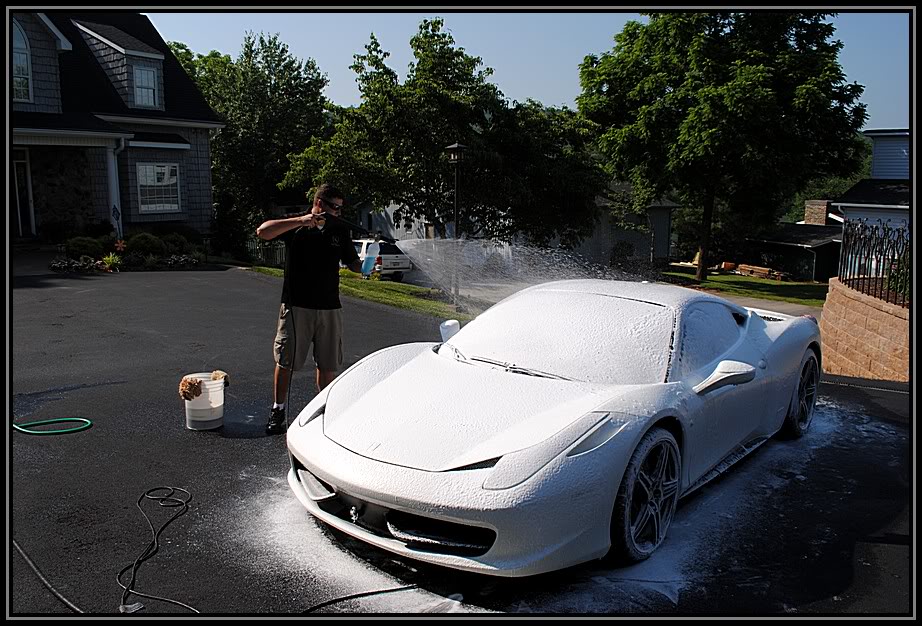

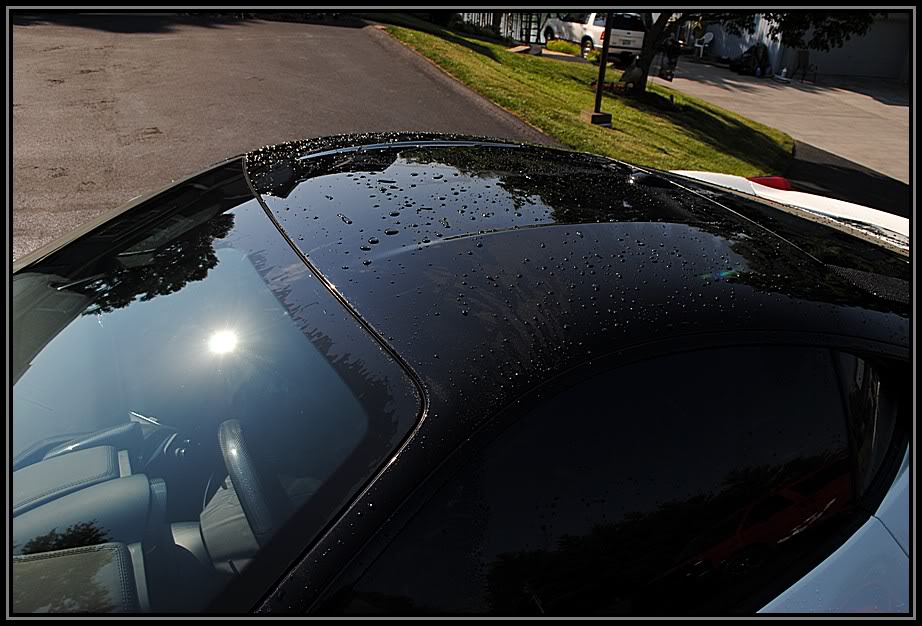

but beading was still there, So we gave it one more foam bath with extra foam this time letting it dwell for a short time

Name:  00a8ec07.jpg
Views: 183
Size:  108.2 KB

Name:  8a0e5fb4.jpg
Views: 206
Size:  156.4 KB

Name:  7faea32a.jpg
Views: 214
Size:  172.4 KB

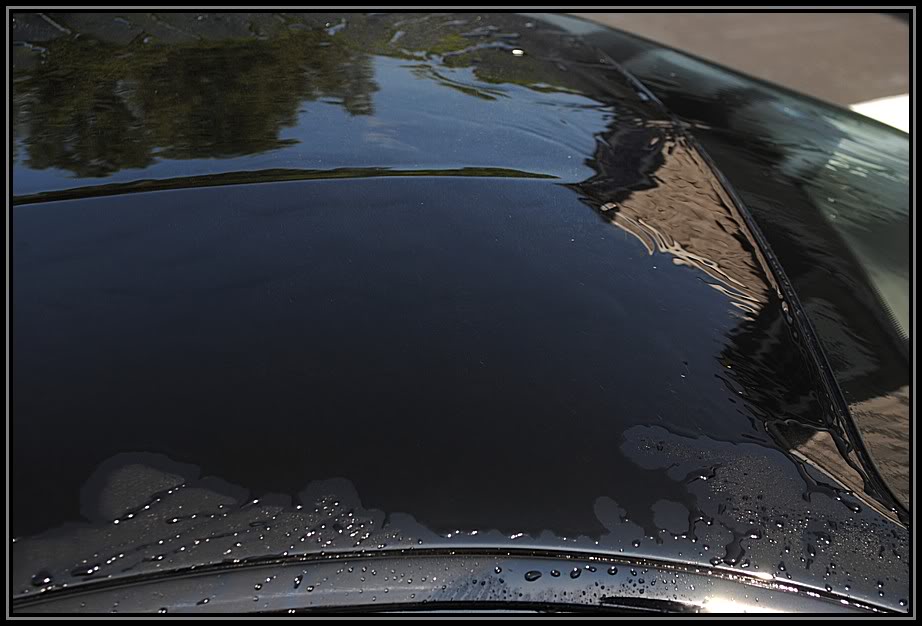

This time we got what we were looking for, no water beading

Name:  10e7445f.jpg
Views: 188
Size:  79.5 KB

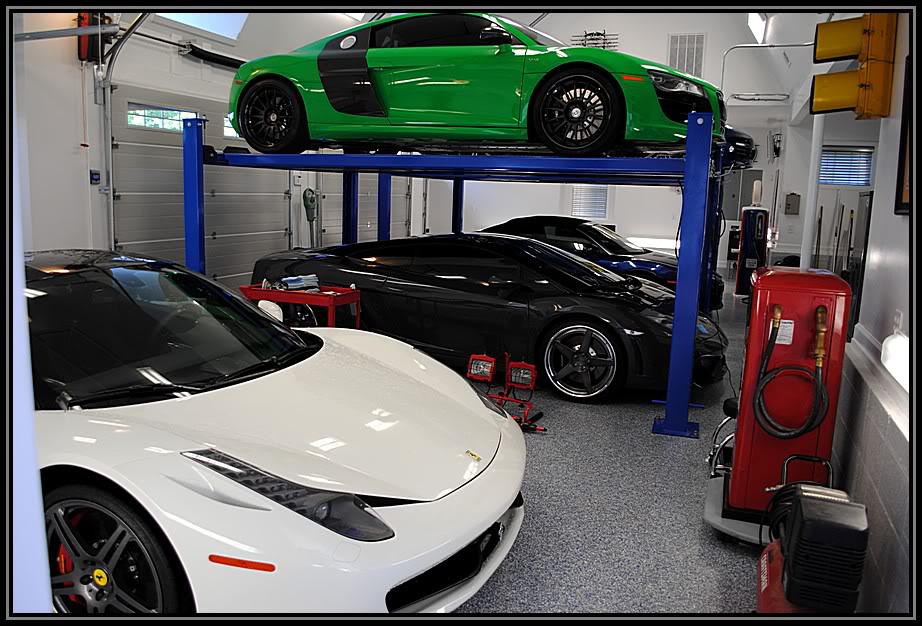

Next we pulled the car back into the garage

Name:  0cf0e327.jpg
Views: 187
Size:  132.4 KB

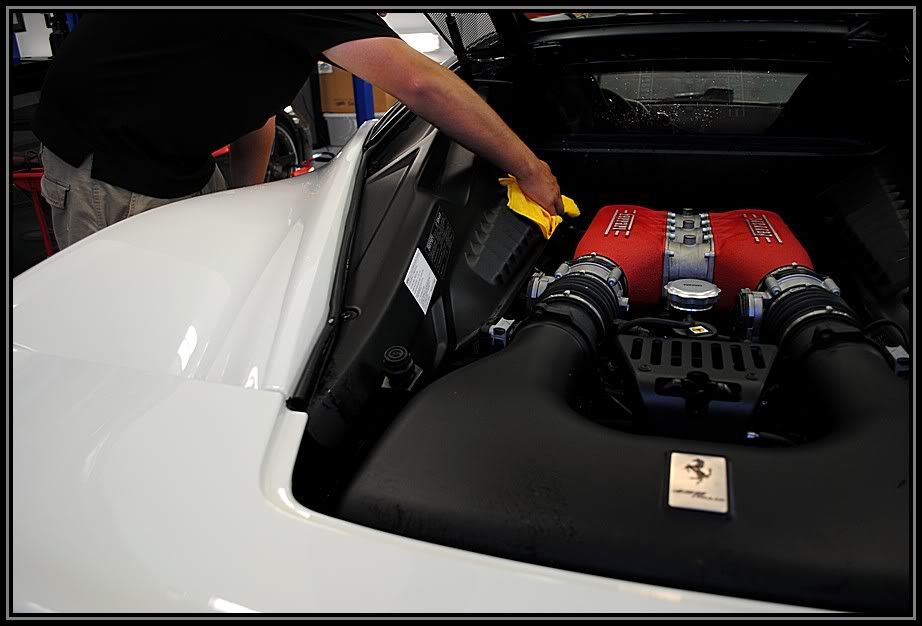

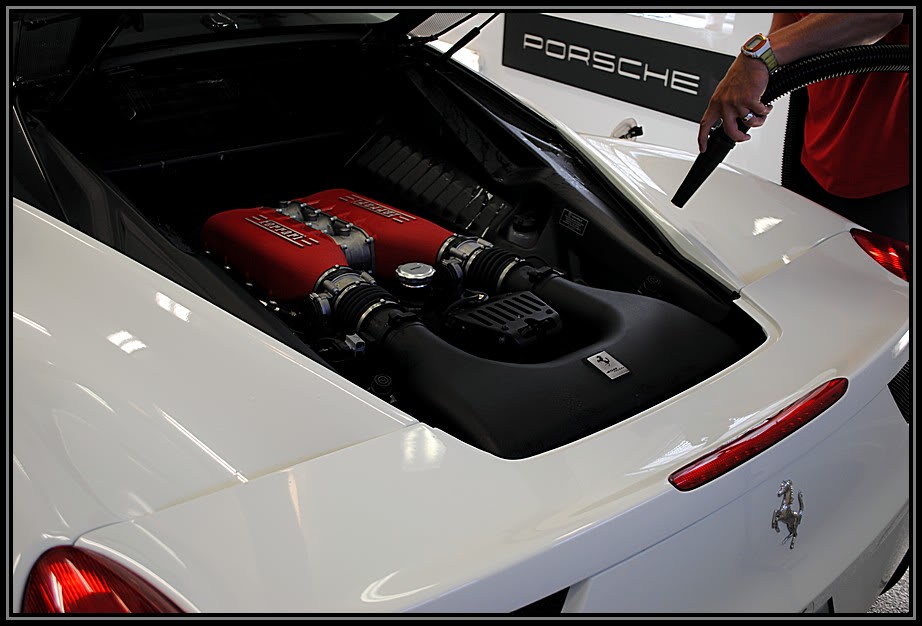

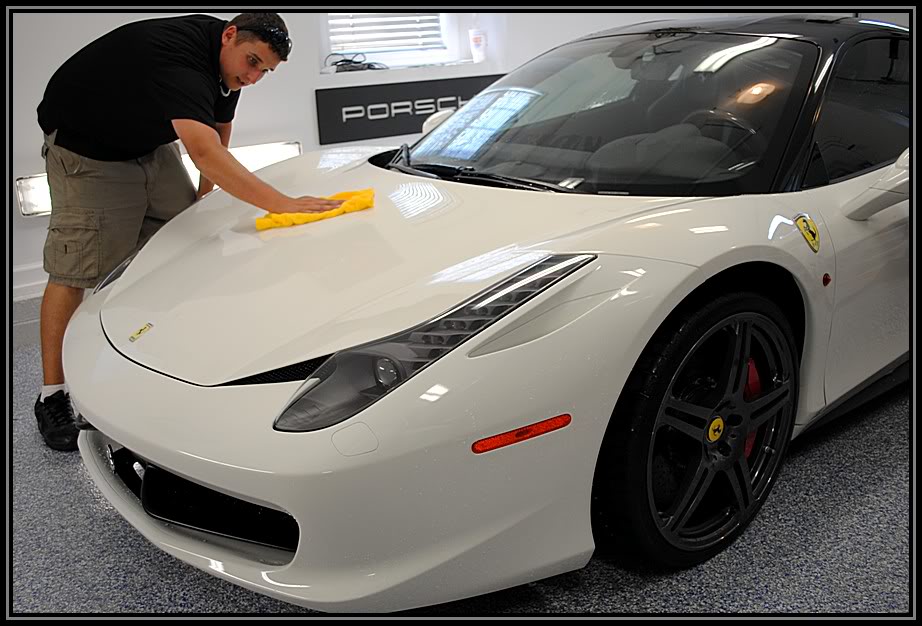

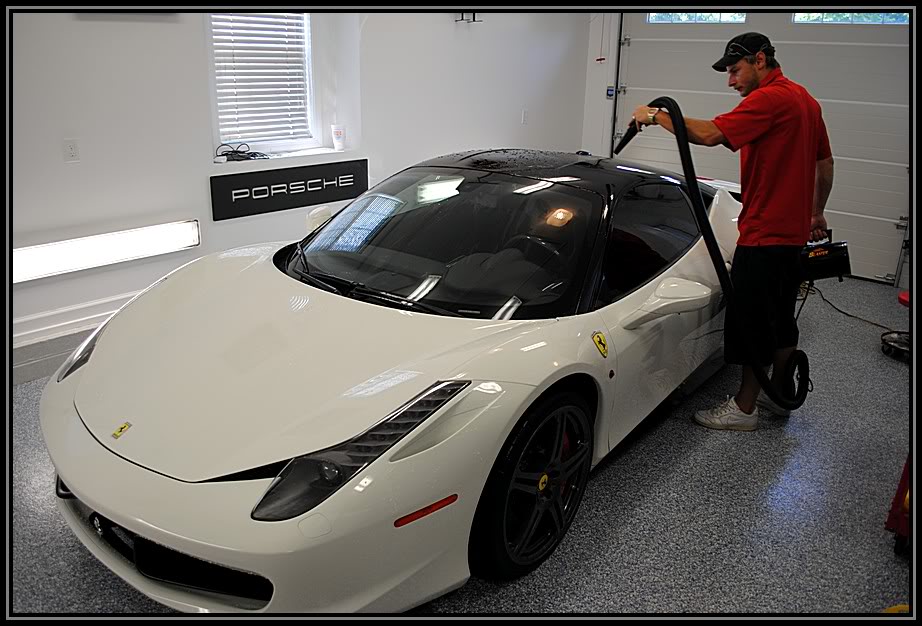

While David was using the Metro Air Force Blaster to get all of the water out of the cracks and crevices, I dried off the car using a micro fiber towel.

Name:  a38cadc2.jpg
Views: 215
Size:  110.2 KB

Name:  866c931d.jpg
Views: 210
Size:  103.8 KB

Name:  c3b980be.jpg
Views: 182
Size:  84.7 KB

Name:  23e7dbb9.jpg
Views: 171
Size:  66.6 KB

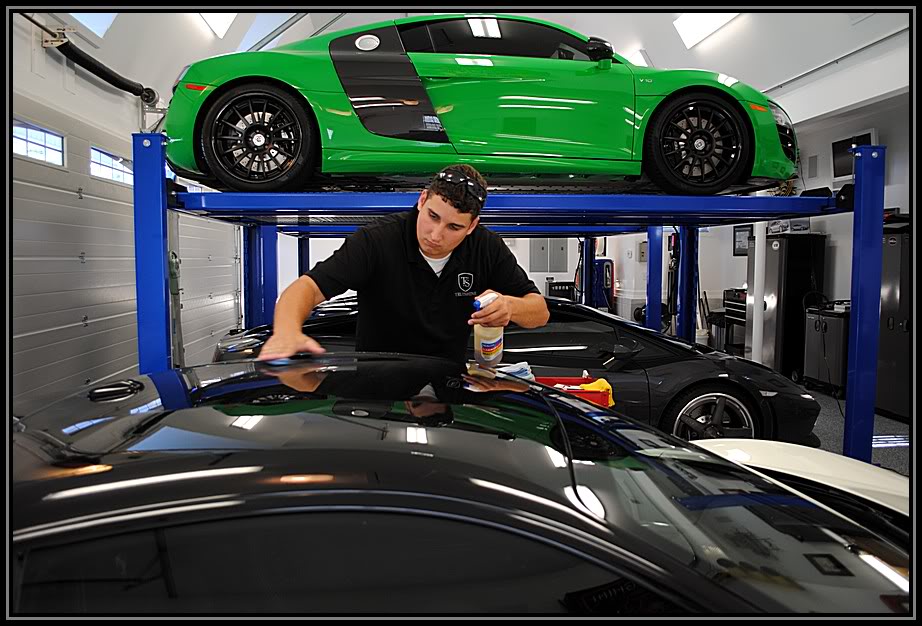

Next we clayed the car using Clay Magic Blue Fine Clay

Name:  cb2c08e9.jpg
Views: 183
Size:  118.9 KB

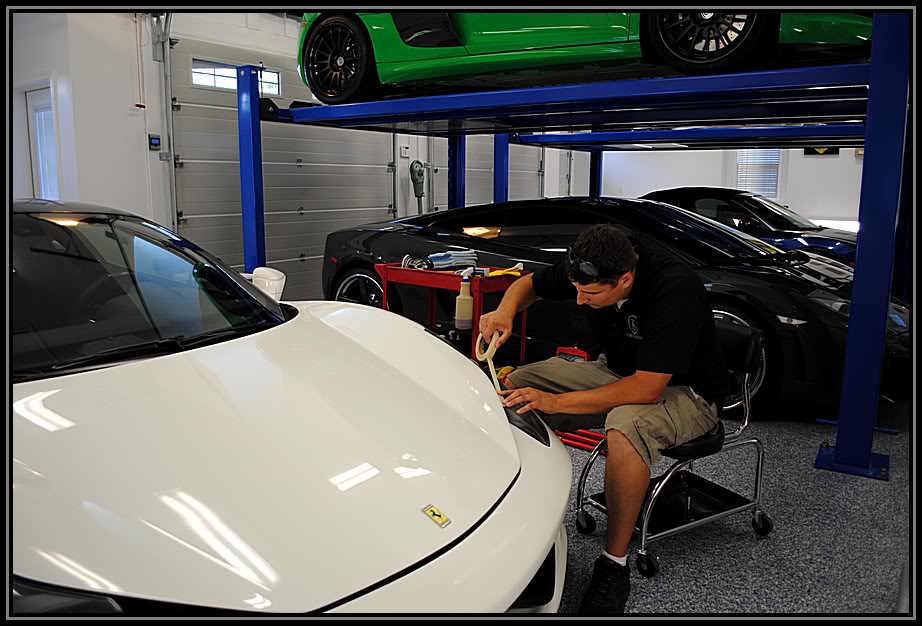

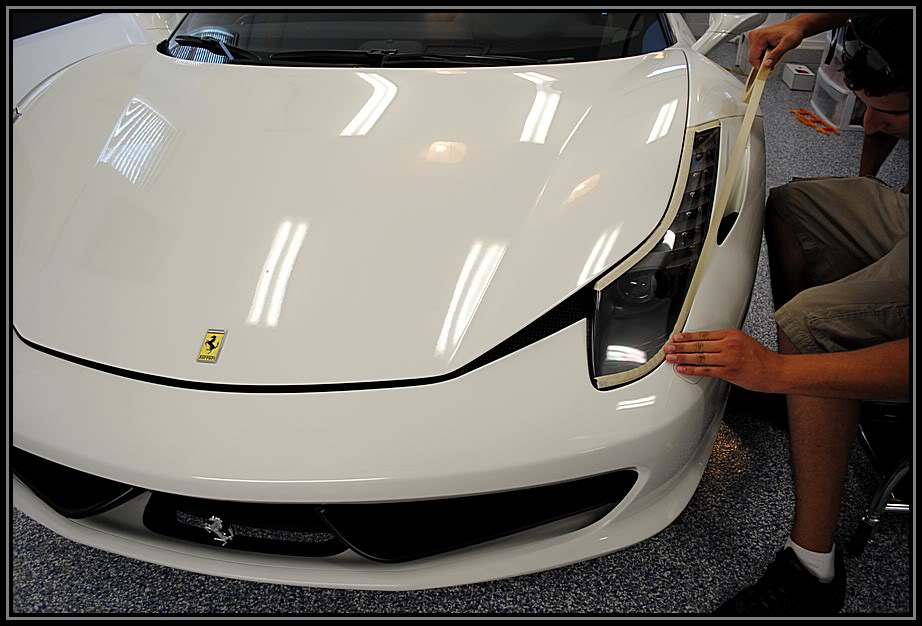

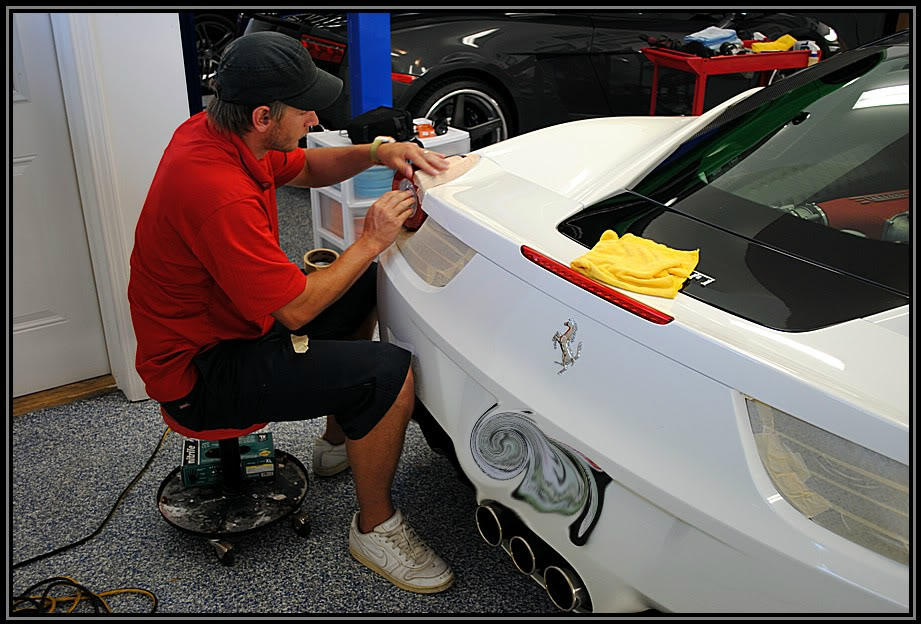

Then we began to tape it up

Name:  d8170038.jpg
Views: 181
Size:  136.4 KB

Name:  df02e09d.jpg
Views: 193
Size:  108.1 KB

Name:  f4a6e679.jpg
Views: 199
Size:  93.5 KB

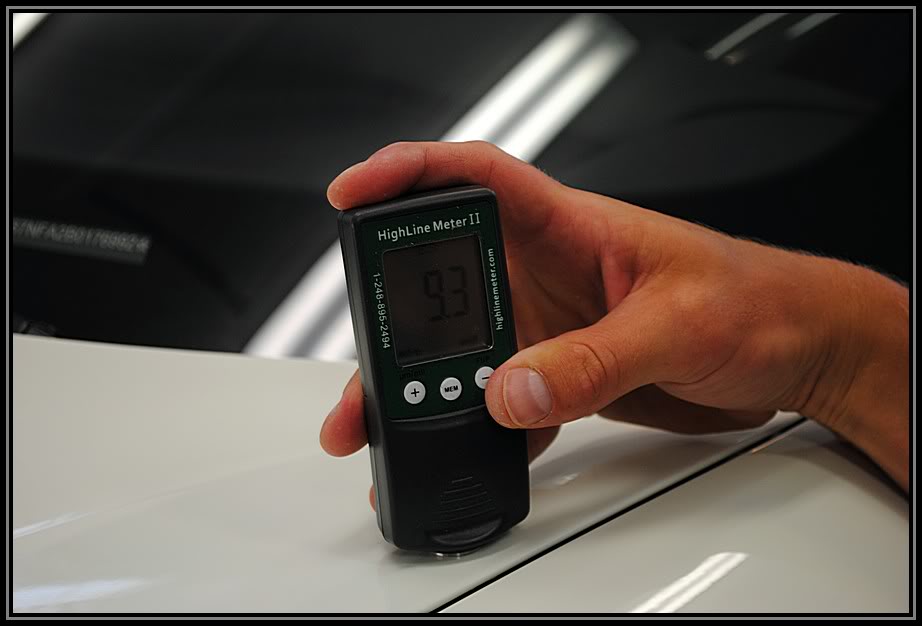

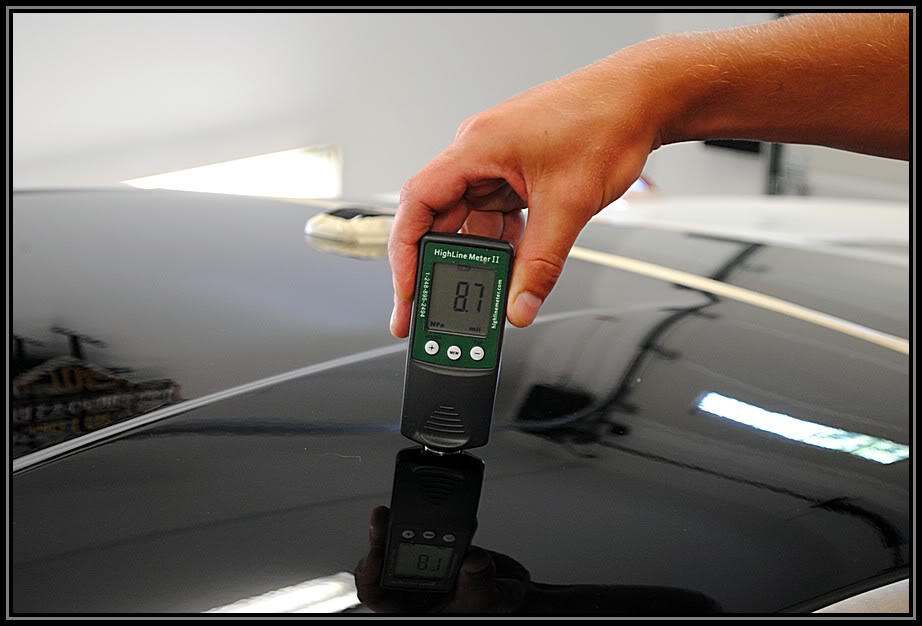

Just to make sure the paint was safe and thick enough to buff on, we took Paint thickness measurements all over the car, The average was about 9mils thick all over. which let us know we had plenty of room to work with.

Name:  5508b818.jpg
Views: 209
Size:  61.0 KB

Name:  7f3df9c1.jpg
Views: 209
Size:  47.9 KB

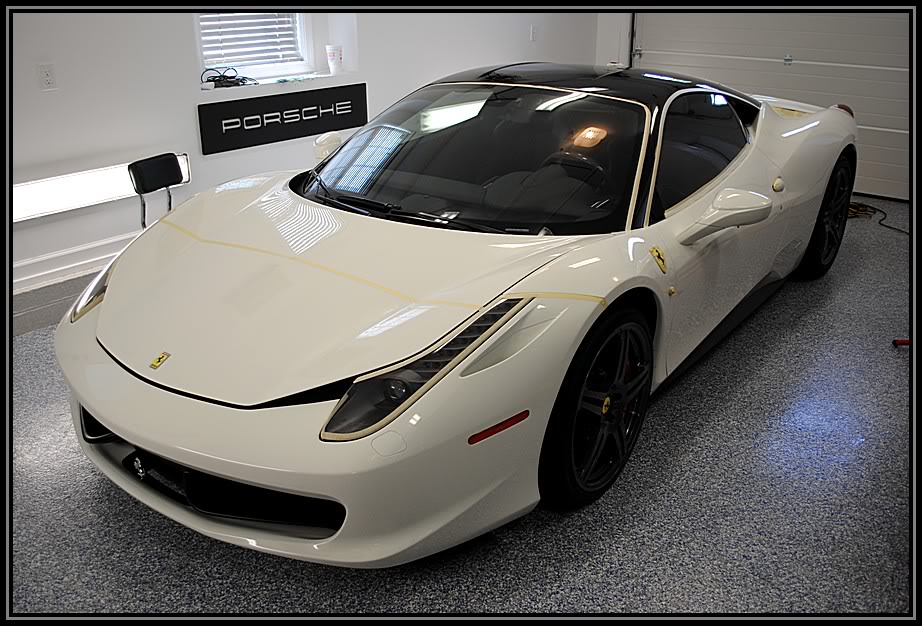

Now that she is all taped up, we can began

Name:  7afed5c0.jpg
Views: 192
Size:  136.0 KB

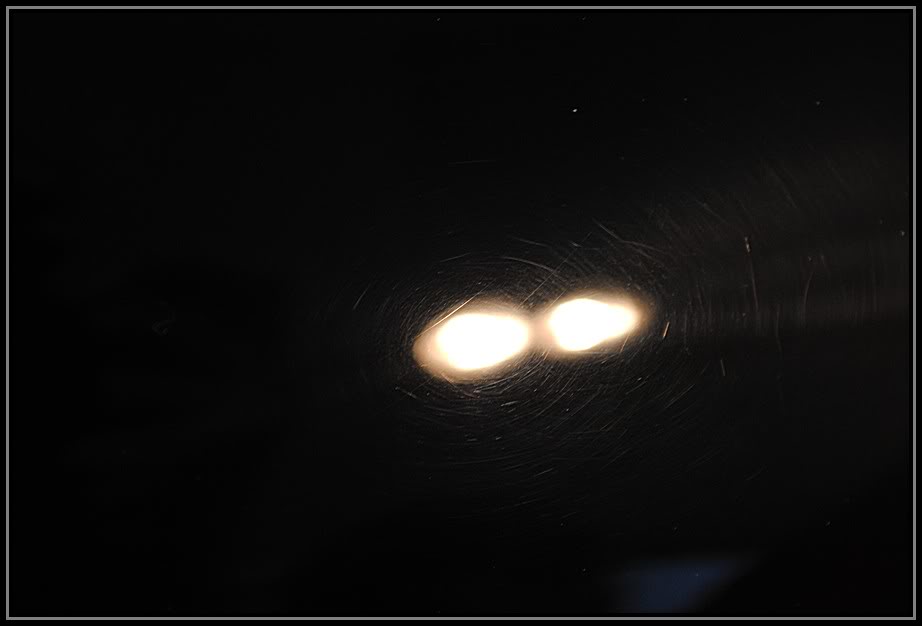

here are some of the swirls and defects found using our Brinkmans Swirl finder light.

Name:  17be5f5e.jpg
Views: 164
Size:  27.1 KB

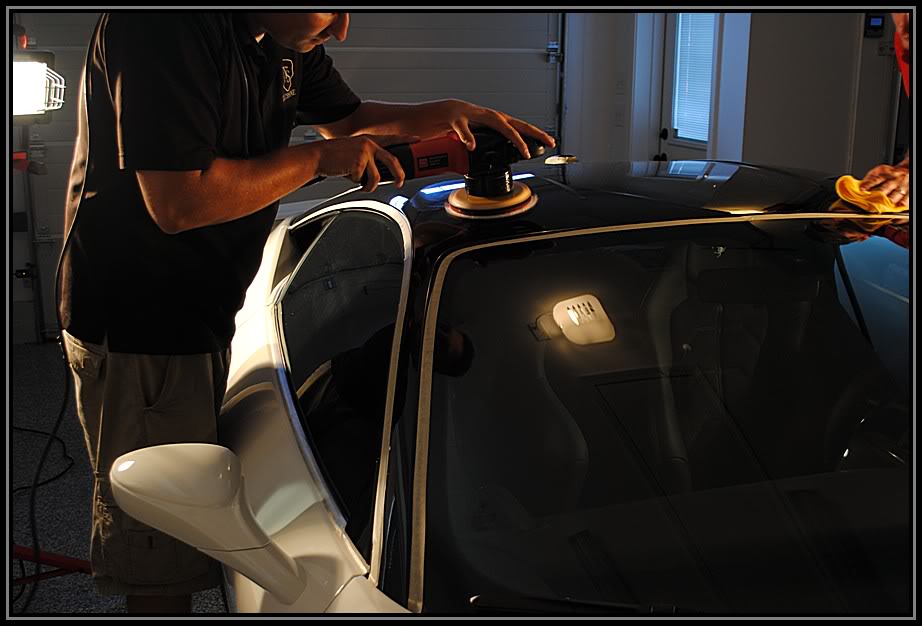

Testing out the new Meguiars DA system (Which worked amazingly)

Name:  570f09ef.jpg
Views: 198
Size:  71.3 KB

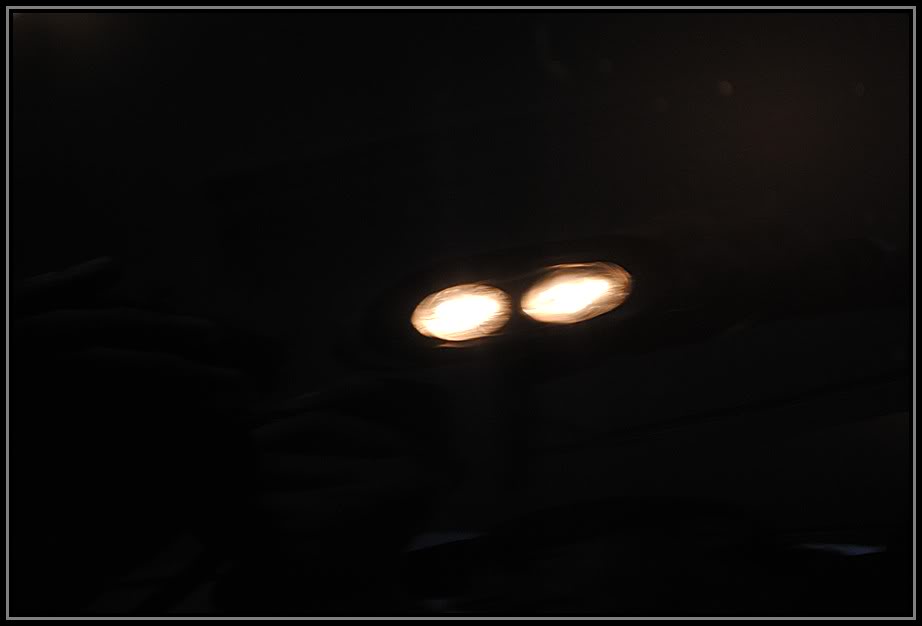

great correction was achieved

Name:  b2f9f154.jpg
Views: 184
Size:  18.7 KB

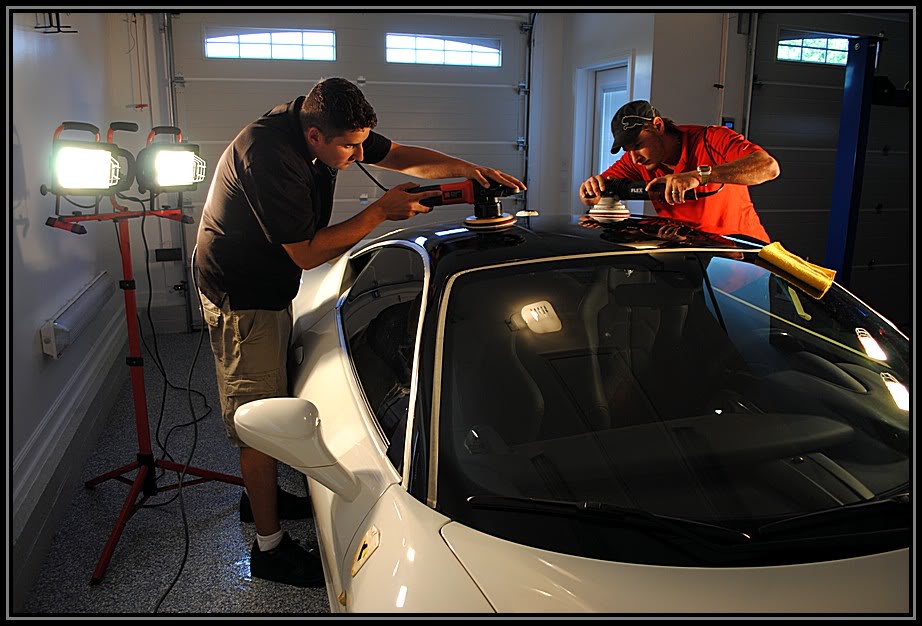

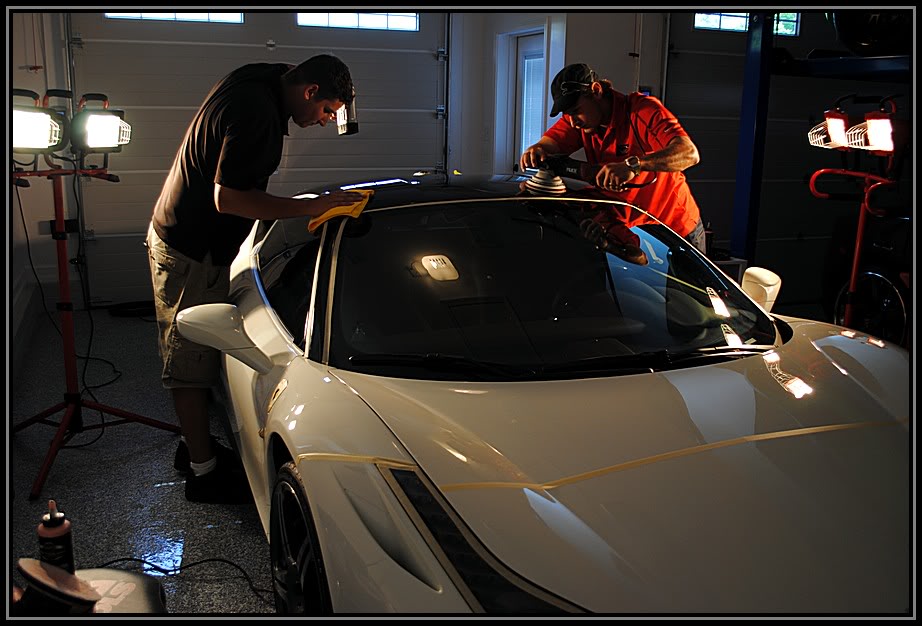

For the Correction process, I used the Griot's 6in DA with the Meguiars DA system and David chose the Flex 3401.

Name:  1682a182.jpg
Views: 258
Size:  106.9 KB

Name:  e47cd313.jpg
Views: 185
Size:  97.7 KB

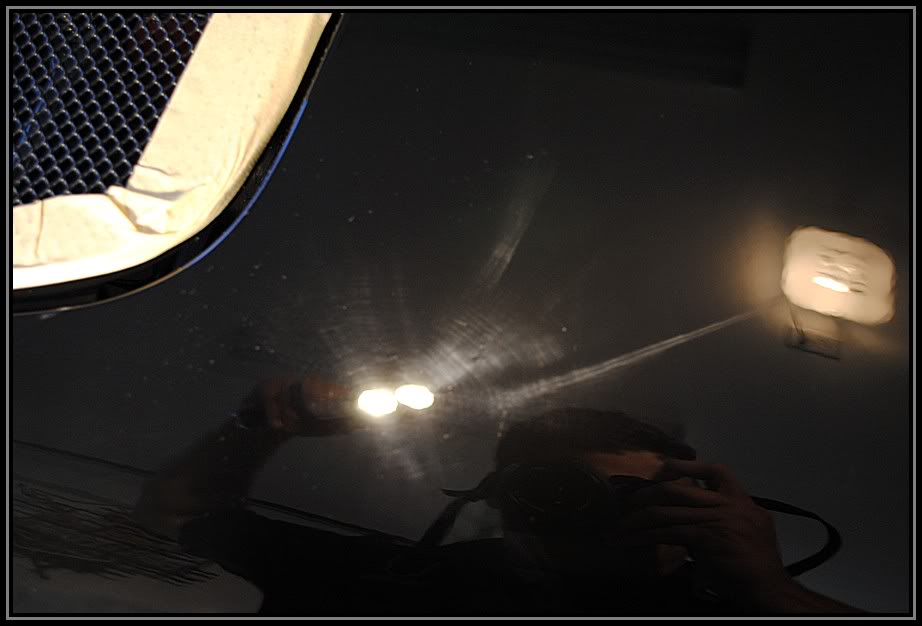

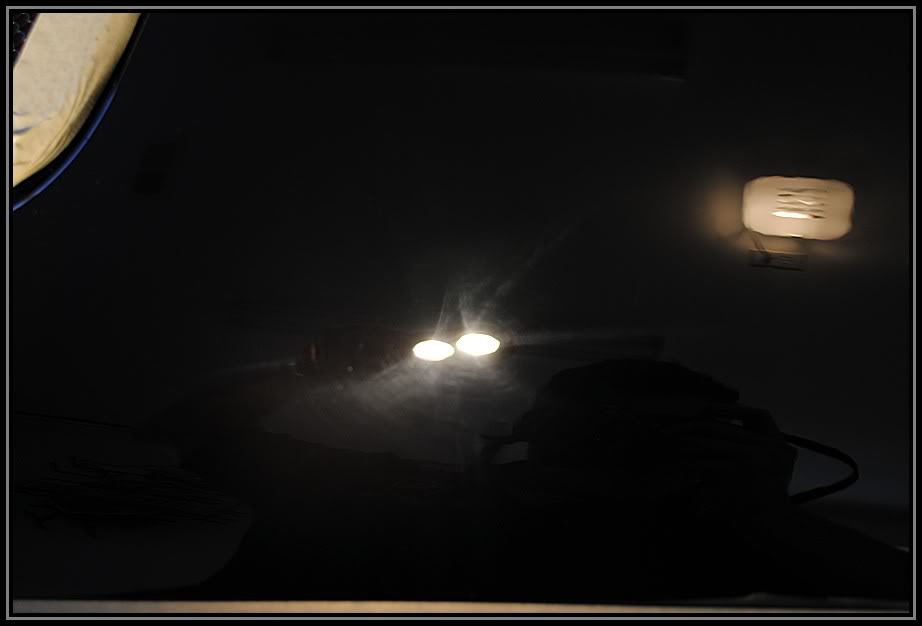

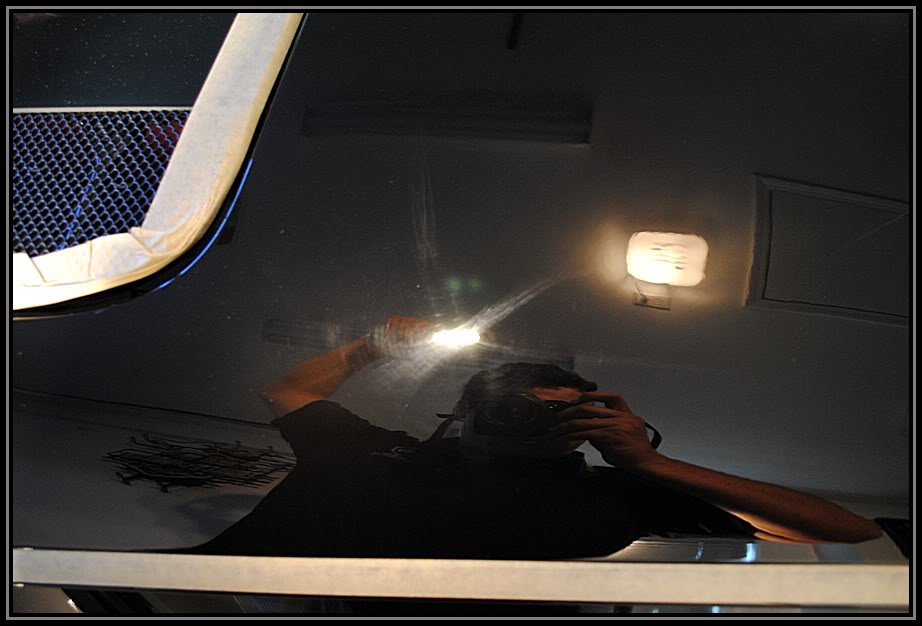

here are some more of the buffer trails and holograms that came from the factory....

Name:  c4807e35.jpg
Views: 203
Size:  26.2 KB

Name:  4e5f27a1.jpg
Views: 192
Size:  62.3 KB

Name:  8cae0541.jpg
Views: 220
Size:  48.7 KB

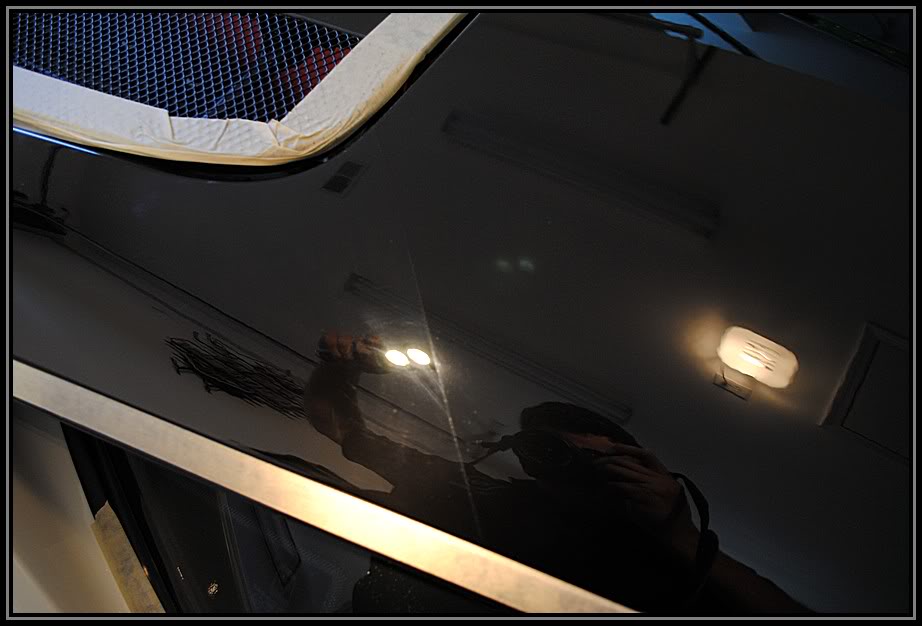

here is a hard to see 50/50 shot

Name:  432b2534.jpg
Views: 189
Size:  63.1 KB

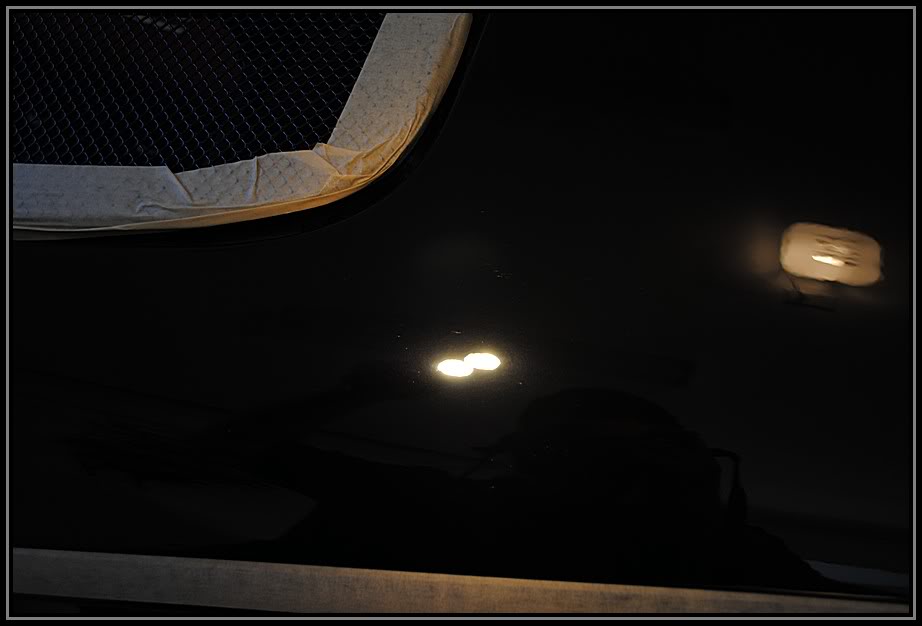

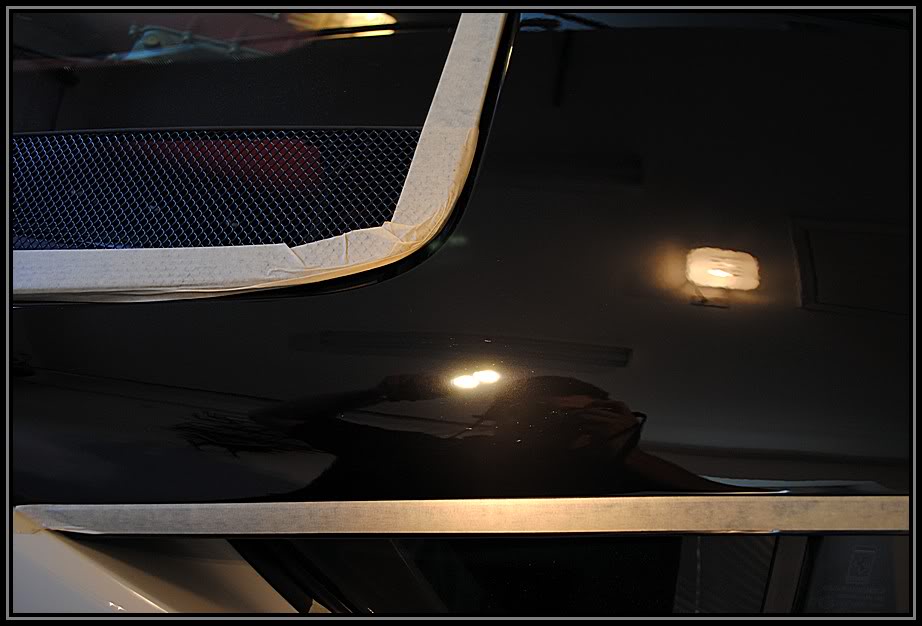

and here it is after the cutting disc and D300

Name:  c1674909.jpg
Views: 184
Size:  42.8 KB

Name:  4ab96340.jpg
Views: 178
Size:  69.4 KB

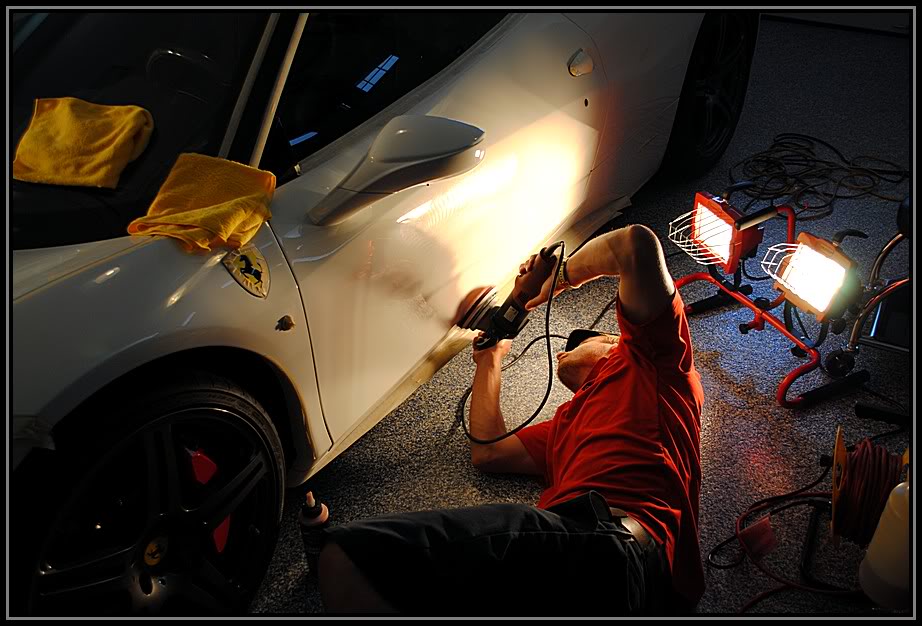

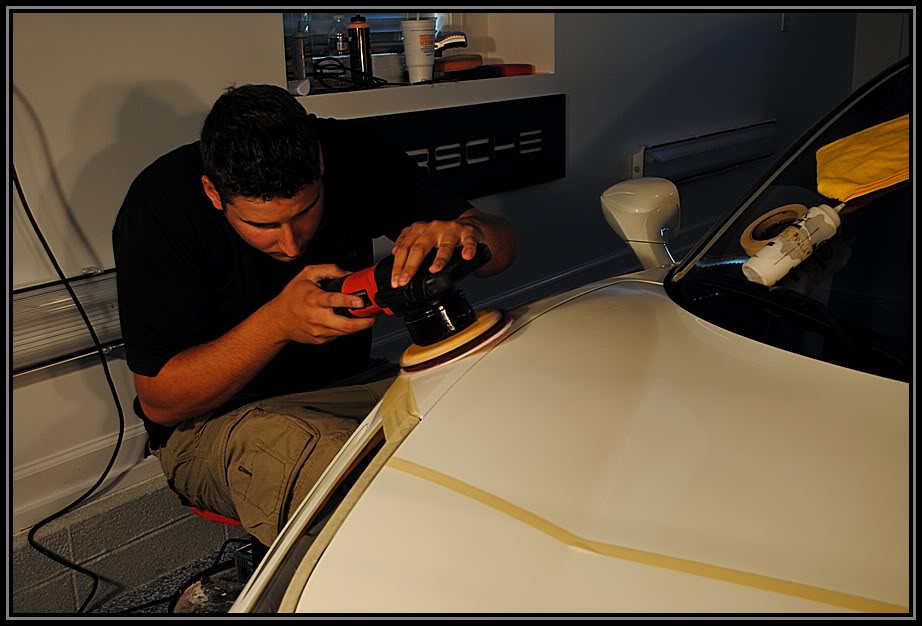

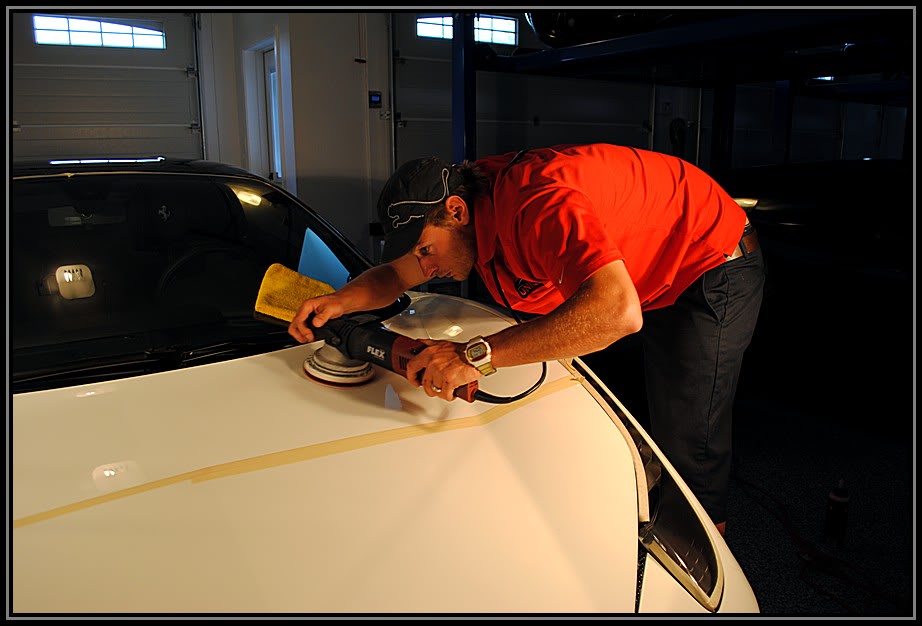

we had the music going and we were getting in the zone!

Name:  3b392c7d.jpg
Views: 167
Size:  103.1 KB

Name:  71677c2a.jpg
Views: 214
Size:  74.9 KB

Name:  a6851ca8.jpg
Views: 190
Size:  77.1 KB

Name:  643a52de.jpg
Views: 182
Size:  106.1 KB

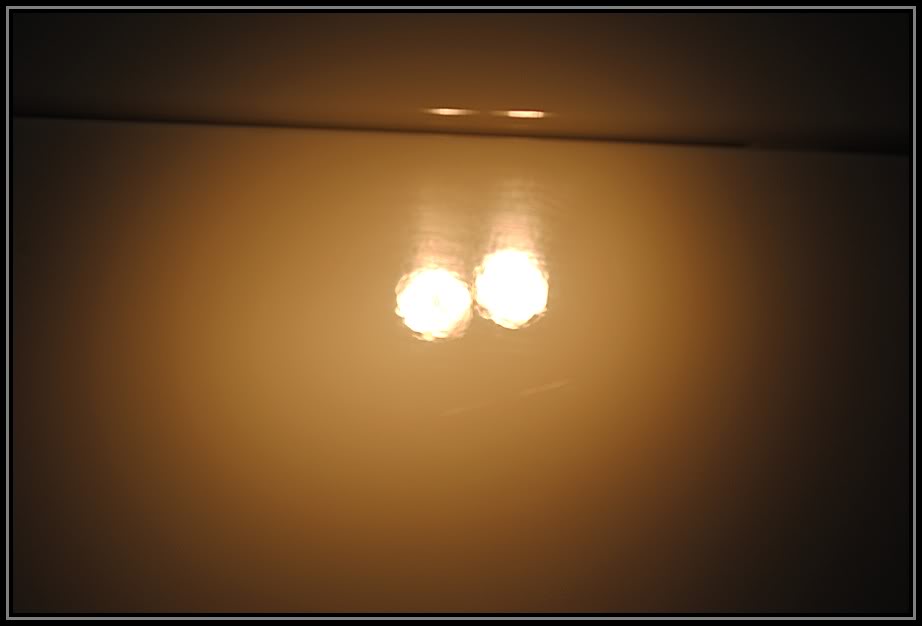

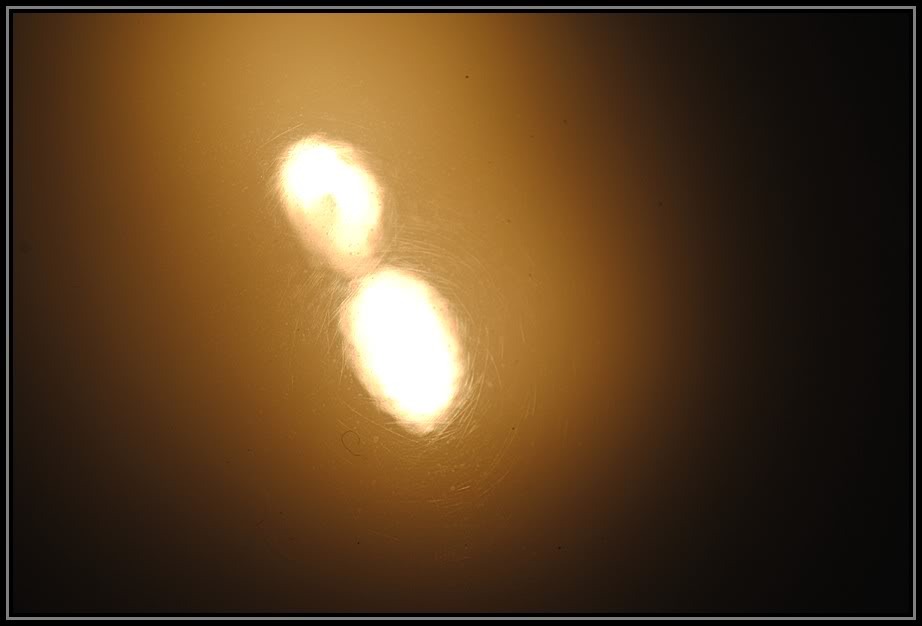

Here are some sand scratches left behind from the factory. These were on the rear lower side skirt on the passenger side.

Name:  7c51fbd2.jpg
Views: 161
Size:  27.3 KB

Name:  dfd7bc5e.jpg
Views: 169
Size:  39.7 KB

Name:  010ed688.jpg
Views: 168
Size:  31.2 KB

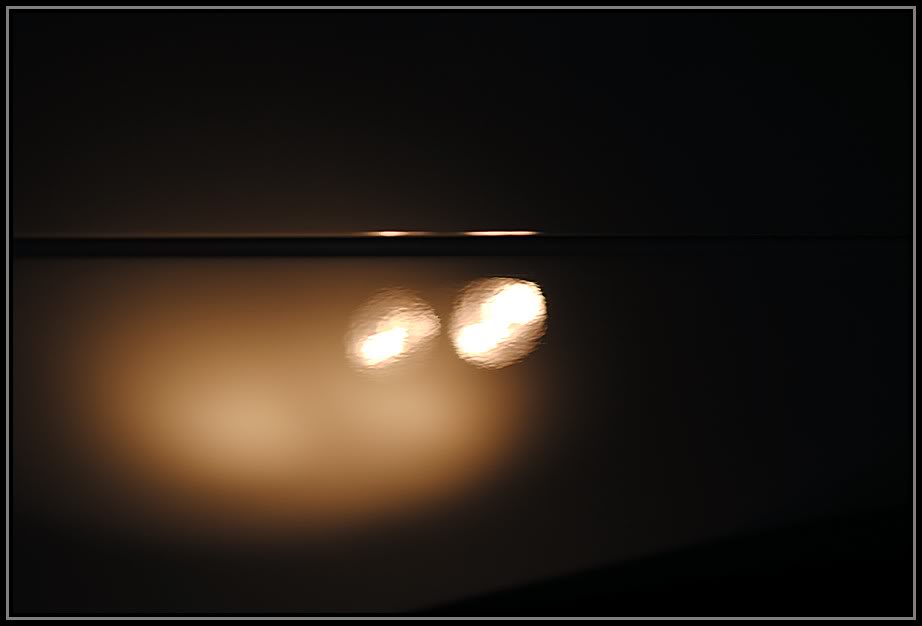

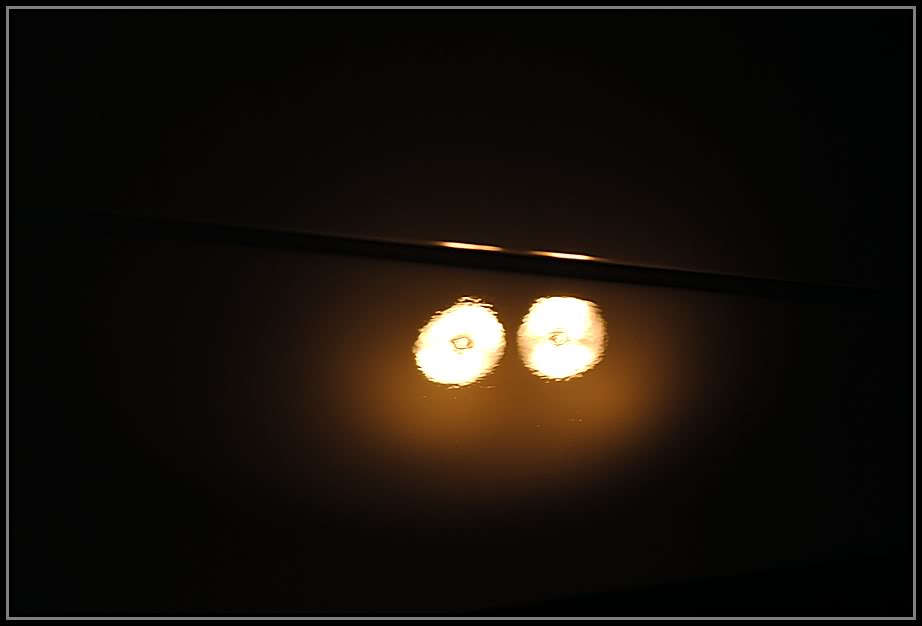

After being buffed out.

Name:  acdc9151.jpg
Views: 218
Size:  23.5 KB

Name:  b1586b19.jpg
Views: 171
Size:  21.7 KB

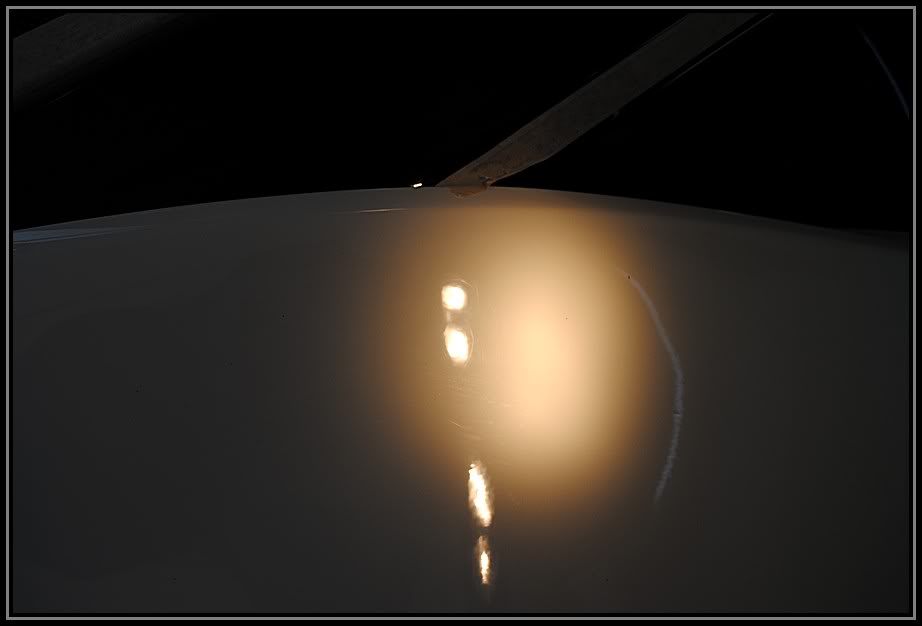

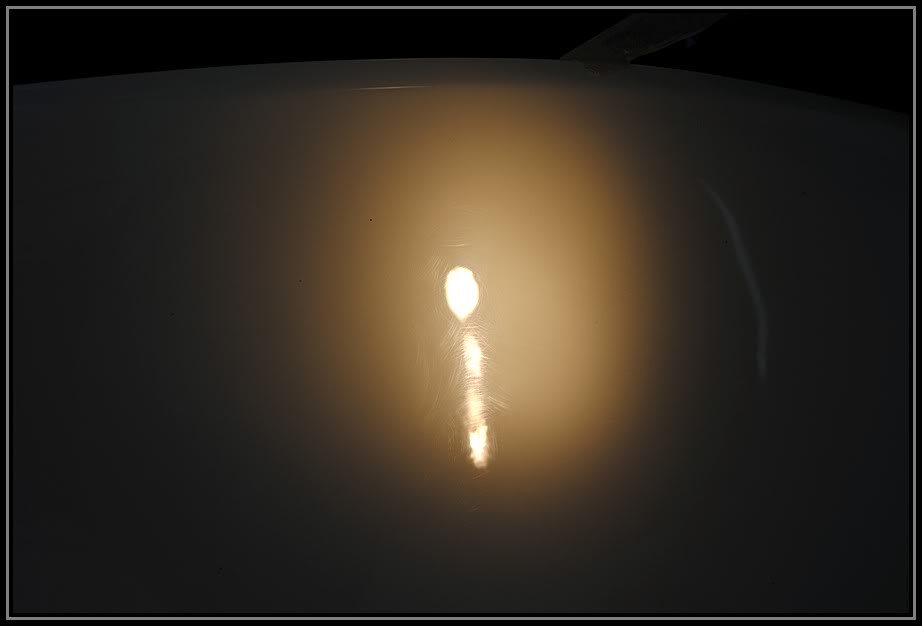

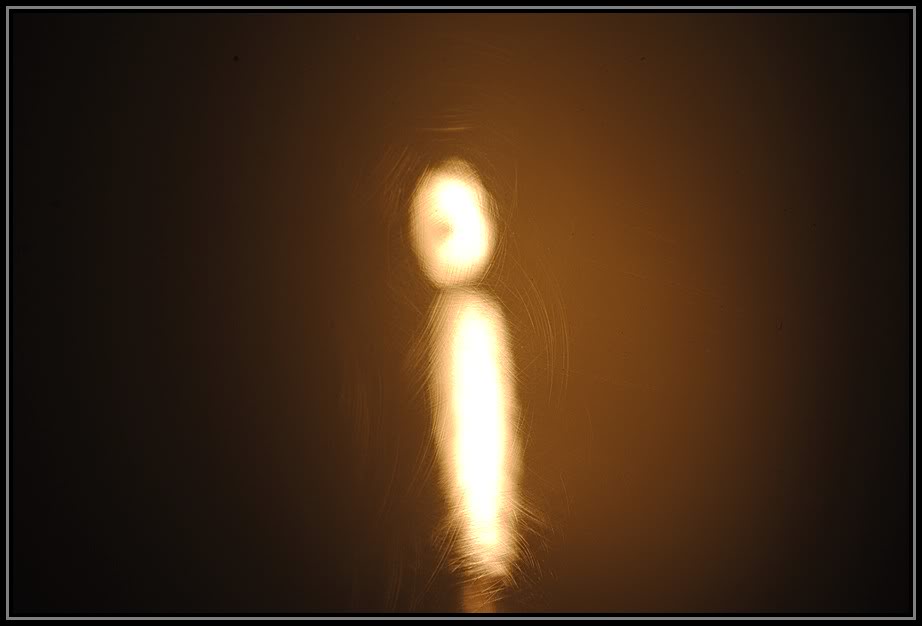

The rear quarter panel had some really bad sand marks

Name:  7efe0a29.jpg
Views: 166
Size:  24.6 KB

Name:  88108a6d.jpg
Views: 177
Size:  24.7 KB

Name:  937fcece.jpg
Views: 185
Size:  30.9 KB

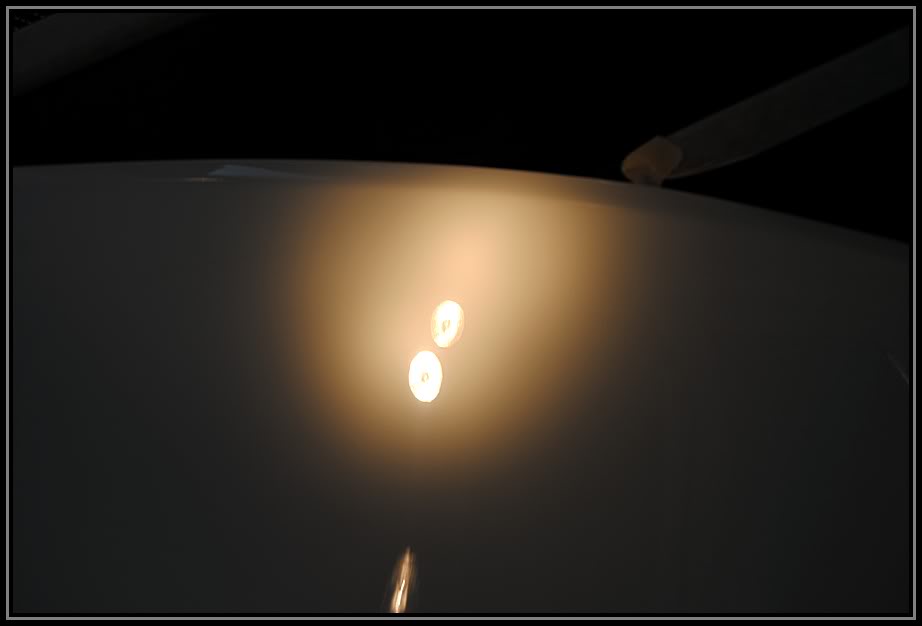

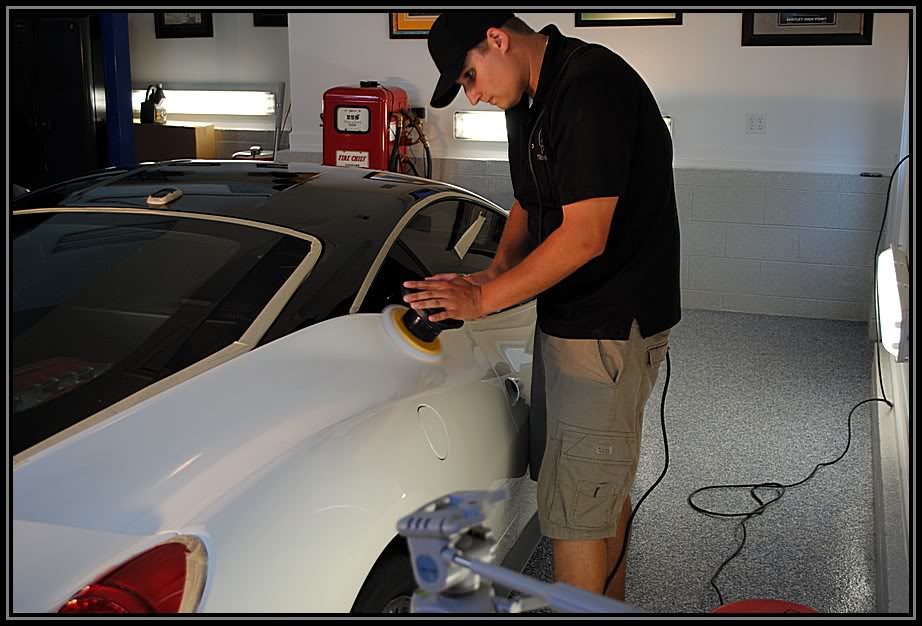

I had to use the Surbuff pad and Meguiars M105 to remove the heavier sand marks.

Name:  5704ccb7.jpg
Views: 192
Size:  96.6 KB

Name:  b4f2dc2e.jpg
Views: 177
Size:  22.0 KB

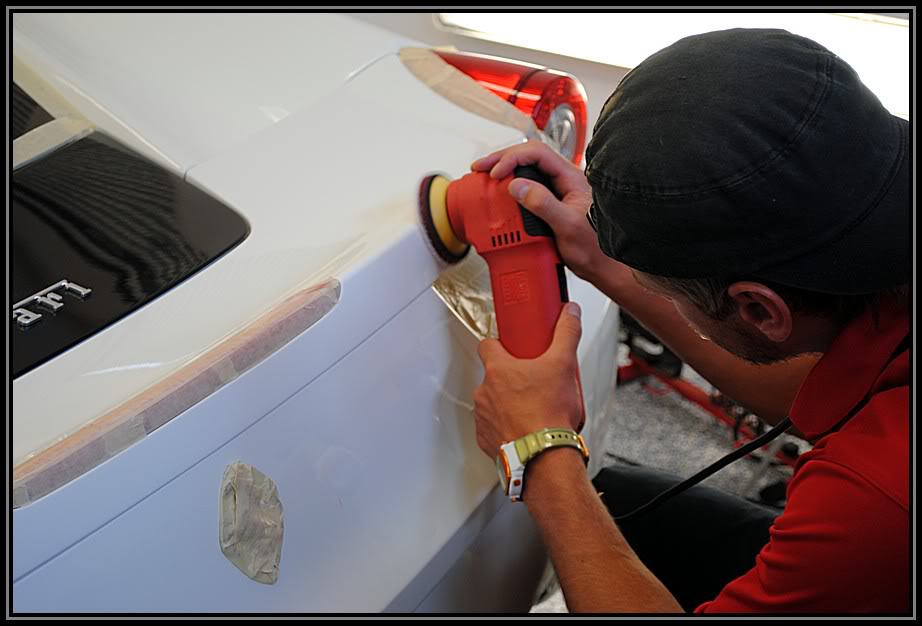

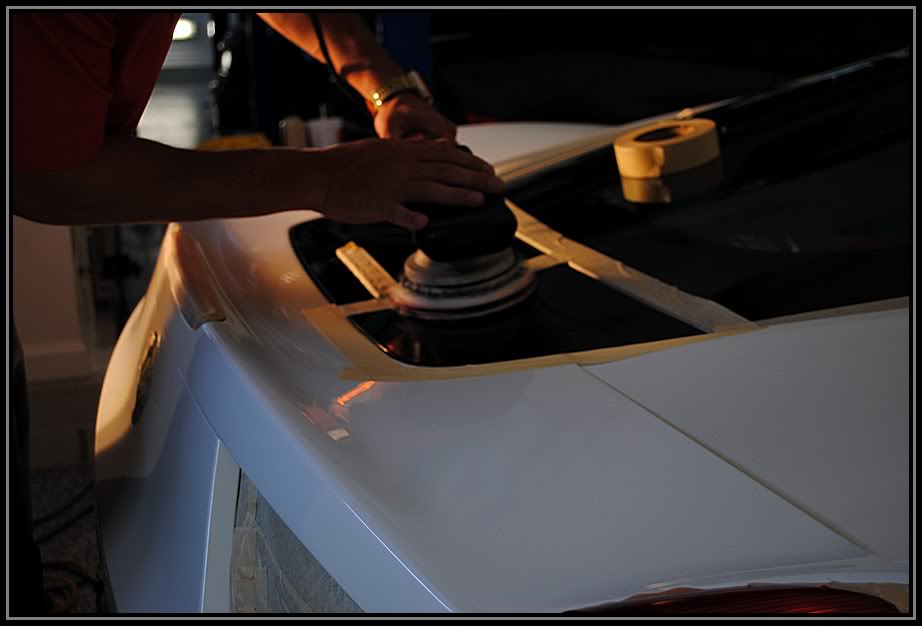

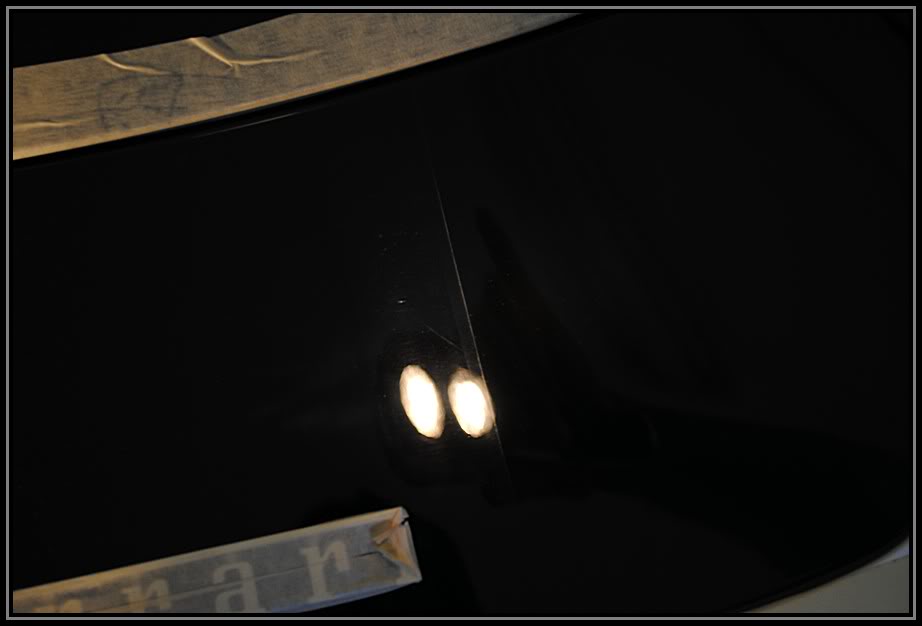

While i was doing that, David was working on the rear

Name:  85353e54.jpg
Views: 182
Size:  45.0 KB

Name:  1744b193.jpg
Views: 172
Size:  27.6 KB

Name:  9db2064f.jpg
Views: 186
Size:  63.3 KB

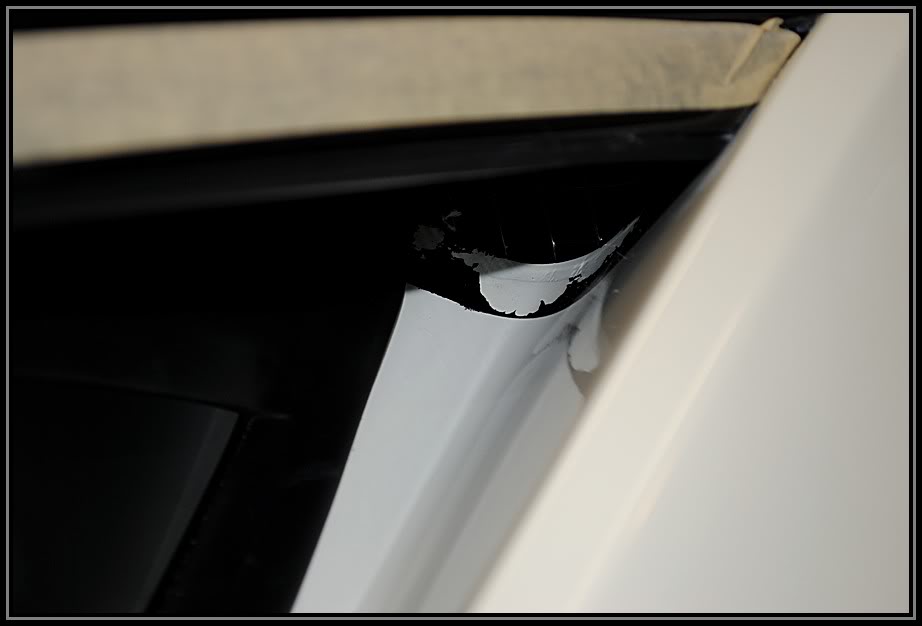

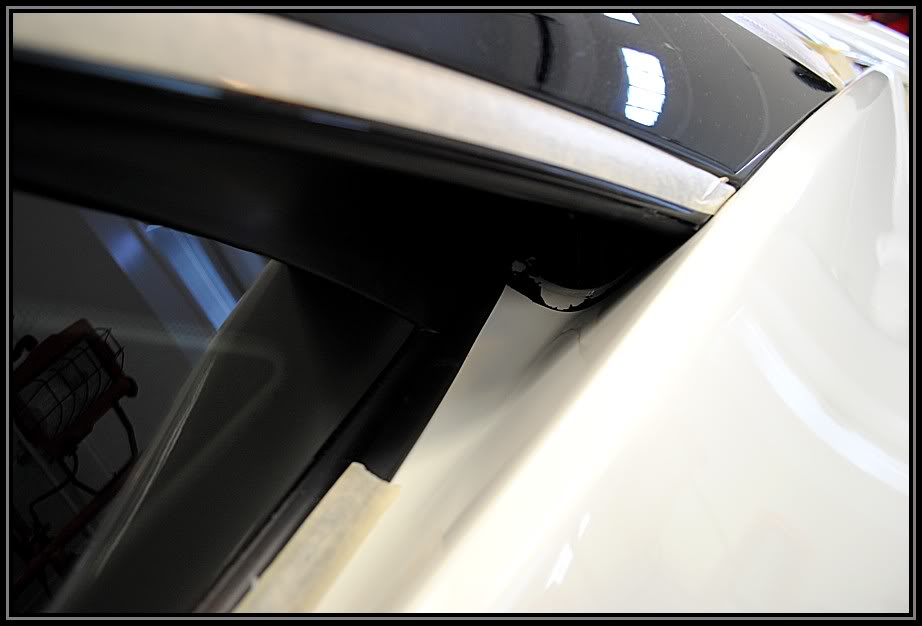

The owner had asked us if we could do anything about some paint flaking off near the rear air vent

Name:  caf9c7ff.jpg
Views: 178
Size:  45.9 KB

Name:  be04cef1.jpg
Views: 172
Size:  31.0 KB

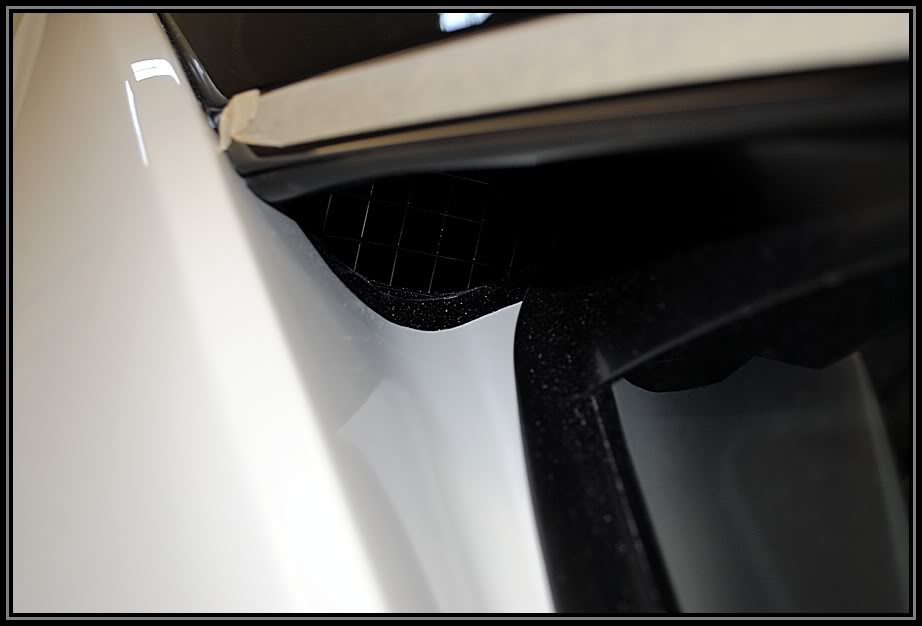

The passenger side was fine but the driver side flaked off a little bit for some reason. This is what it is saposed to look like

Name:  ea194a41.jpg
Views: 182
Size:  37.3 KB

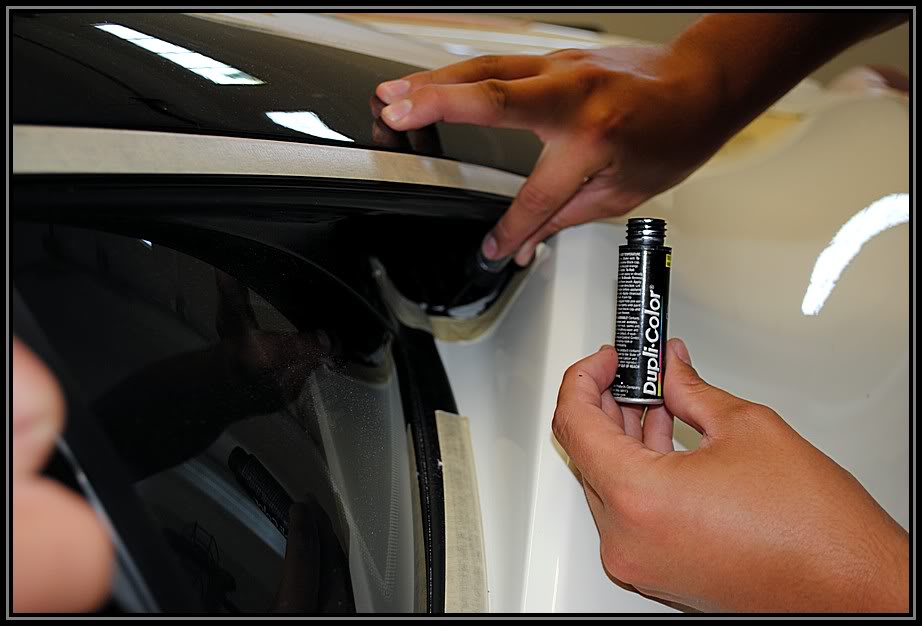

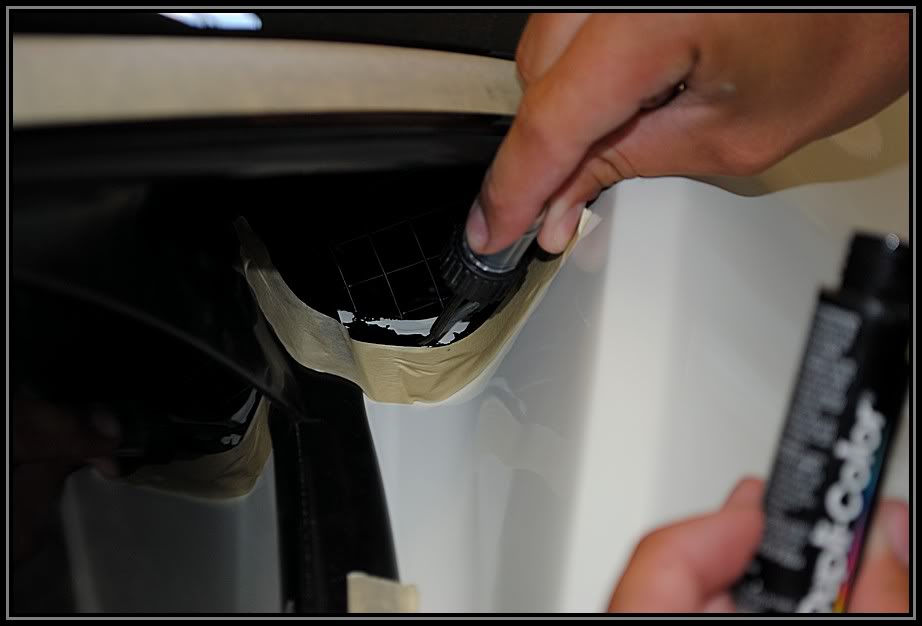

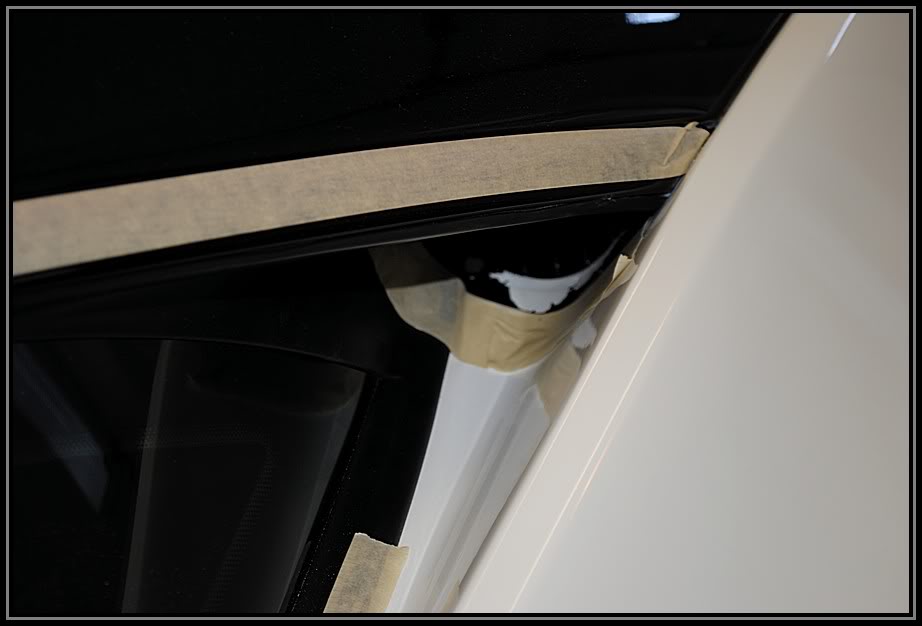

So to fix it, I taped off a straight line and added some black touch up paint.

Name:  3492cc94.jpg
Views: 180
Size:  40.2 KB

Name:  13c09a11.jpg
Views: 181
Size:  64.5 KB

Name:  b3ea1ad5.jpg
Views: 174
Size:  43.3 KB

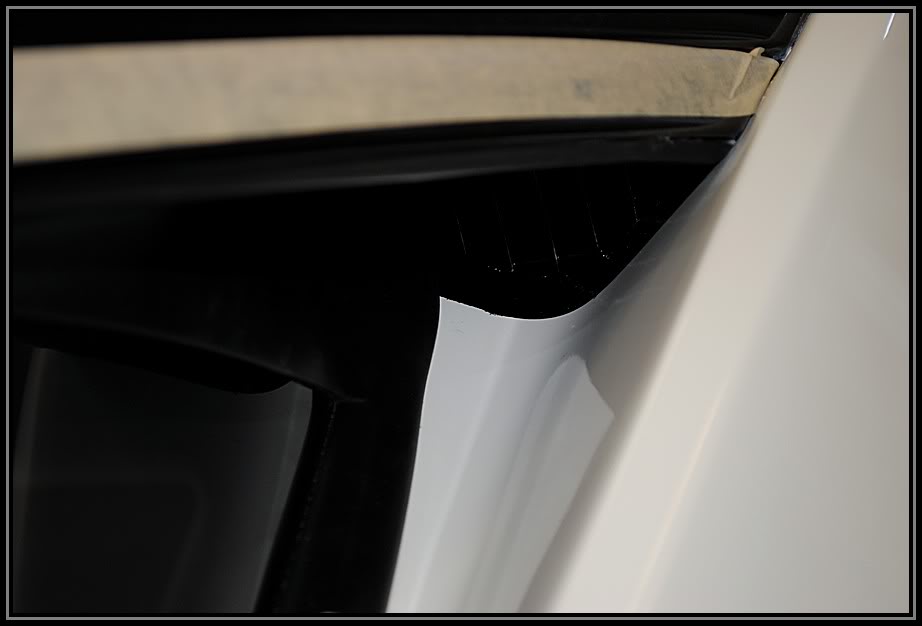

Then removed the tape......and walla! Cant even tell a difference.

Name:  bedfb1af.jpg
Views: 169
Size:  30.9 KB

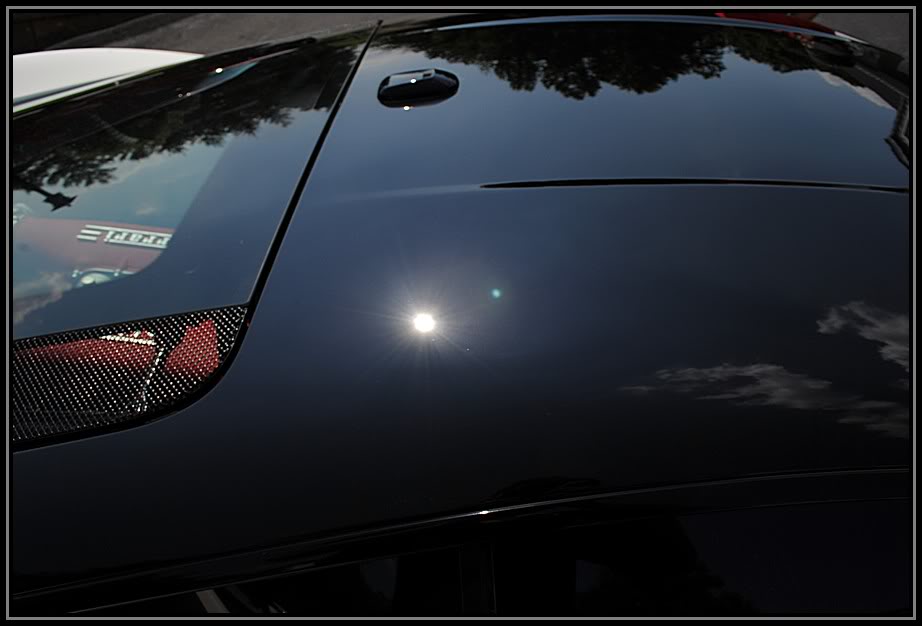

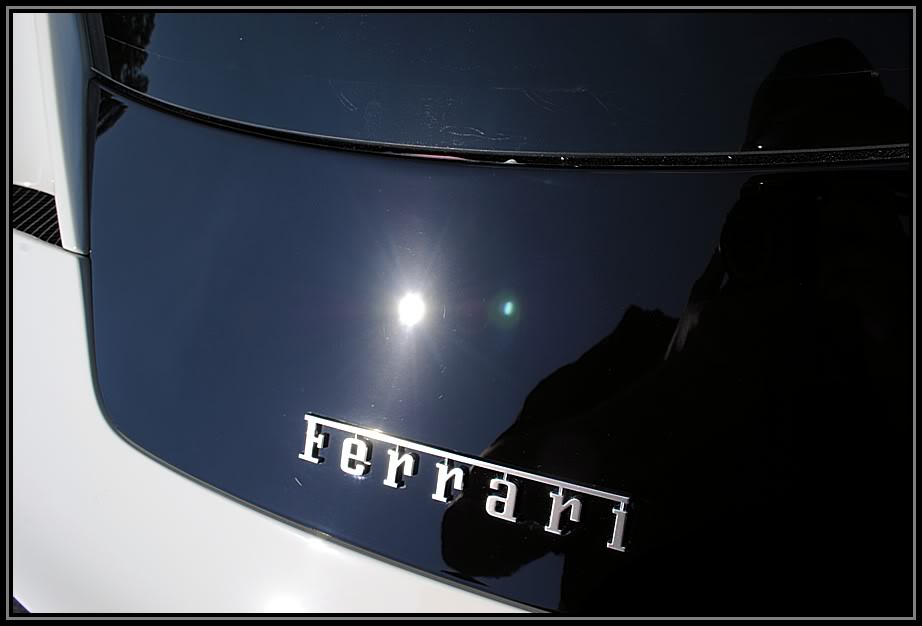

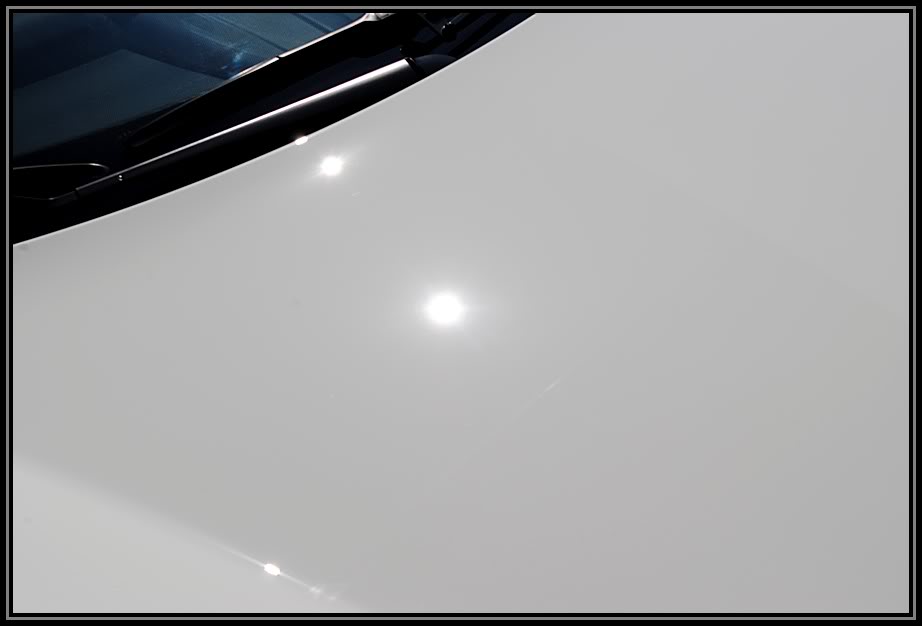

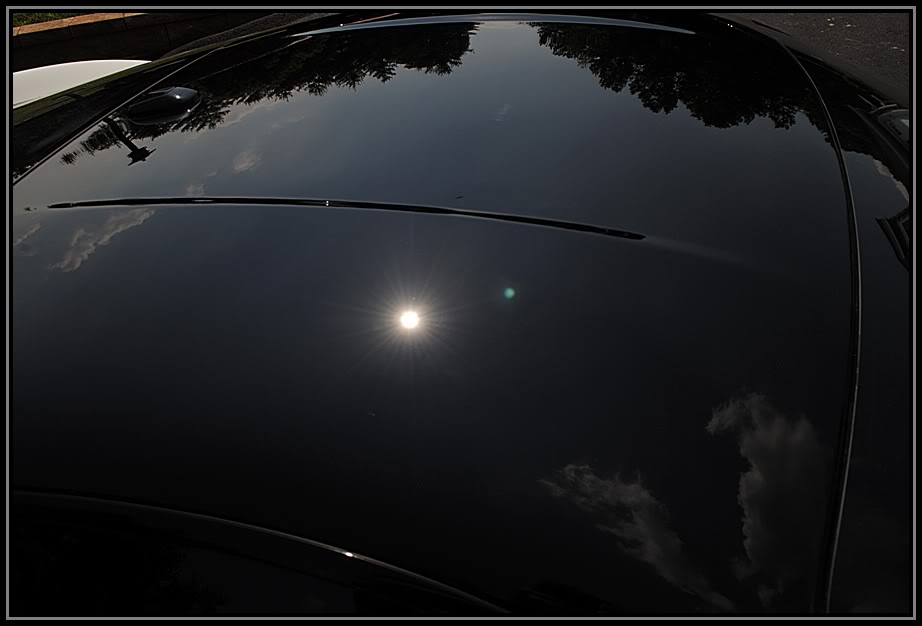

After the Polishing stage, We pulled the car out side to check it over.

Name:  2709bb9e.jpg
Views: 201
Size:  25.4 KB

Name:  a8fbe051.jpg
Views: 178
Size:  43.9 KB

Name:  249898cf.jpg
Views: 204
Size:  50.7 KB

Name:  8108c50c.jpg
Views: 157
Size:  42.0 KB

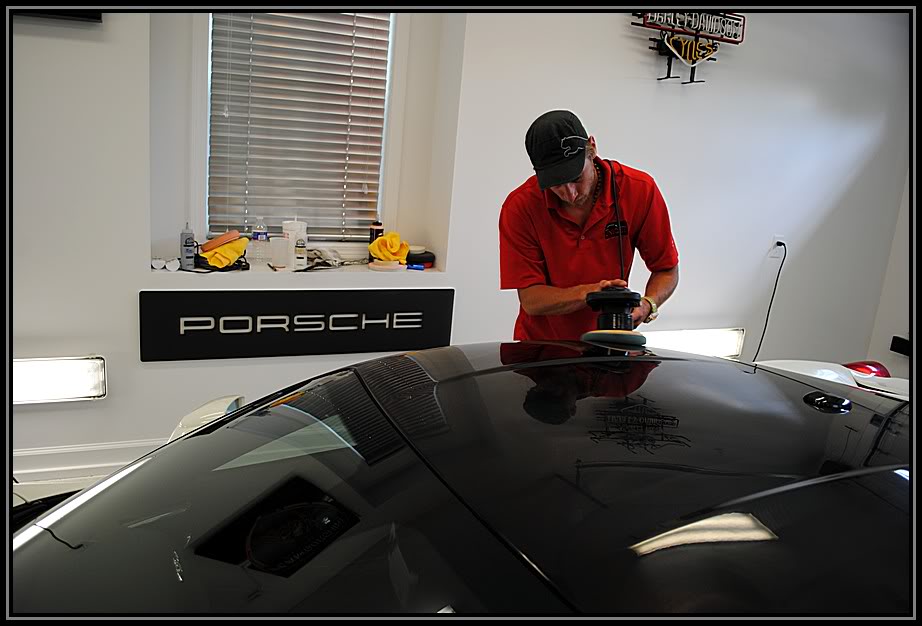

Then we brought it back inside and applied some Black Fire Wet Diamond on a Blue LC pad

Name:  612ffe43.jpg
Views: 176
Size:  74.0 KB

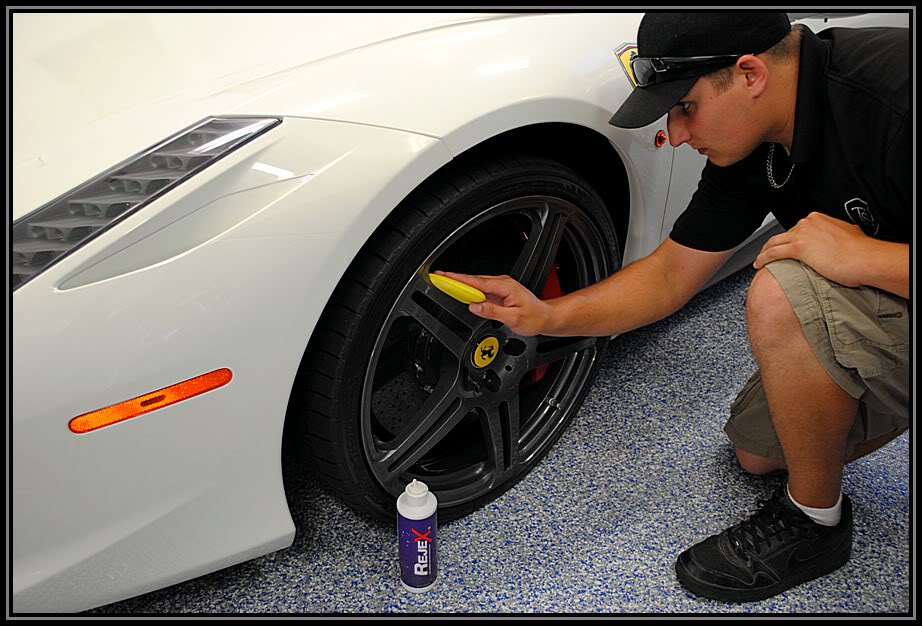

While David was Doing that, I applied some Rejex to the wheels.

Name:  9fa679bd.jpg
Views: 194
Size:  119.1 KB

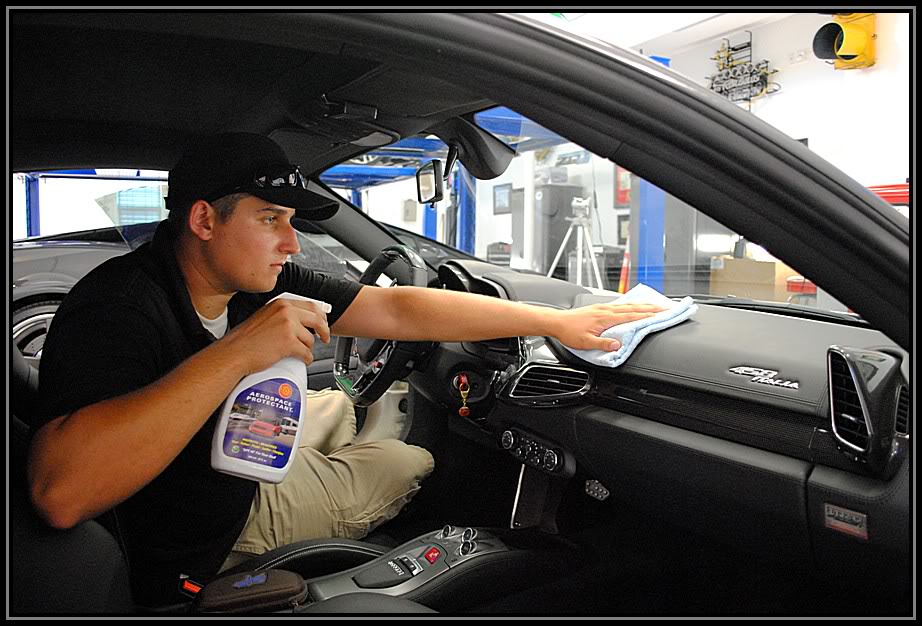

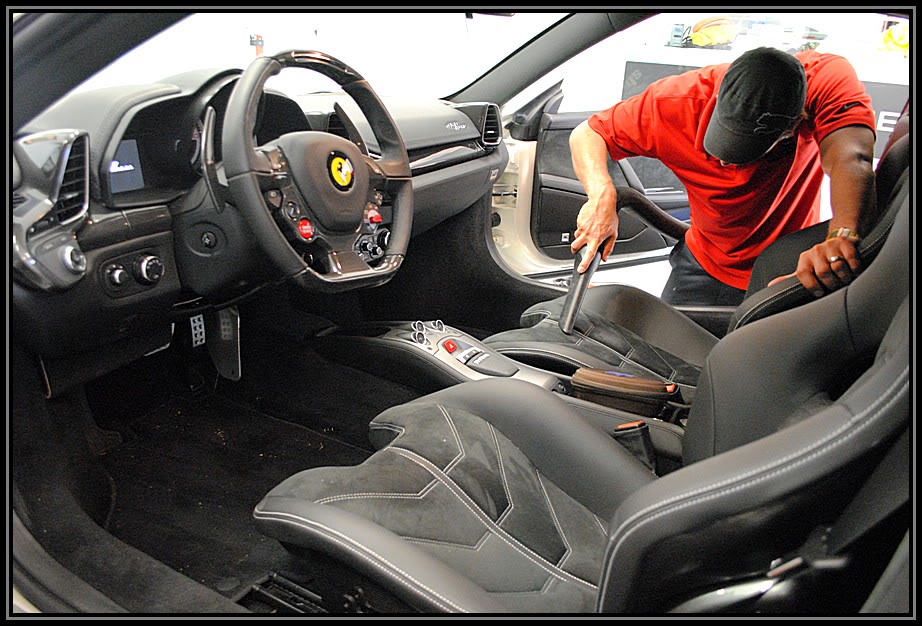

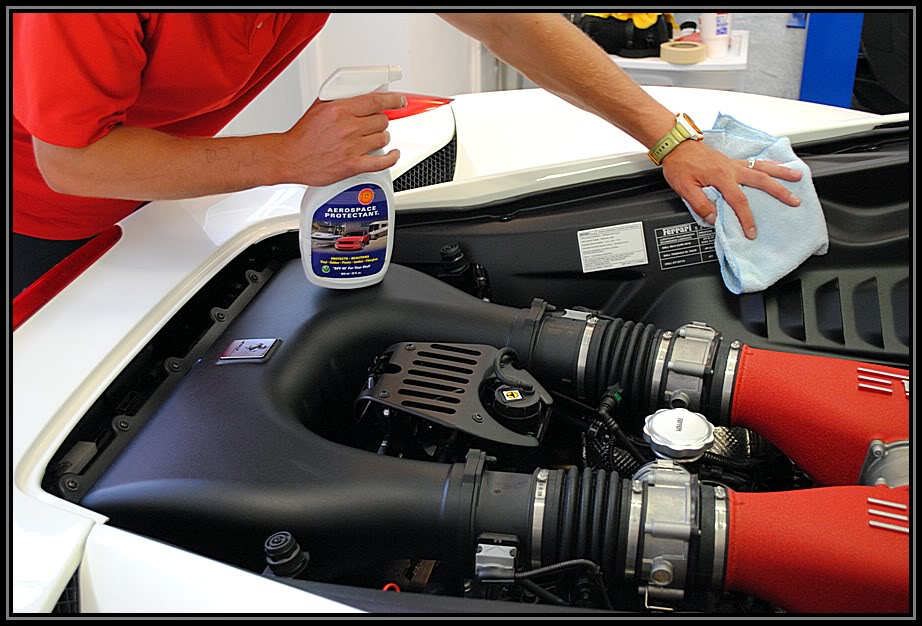

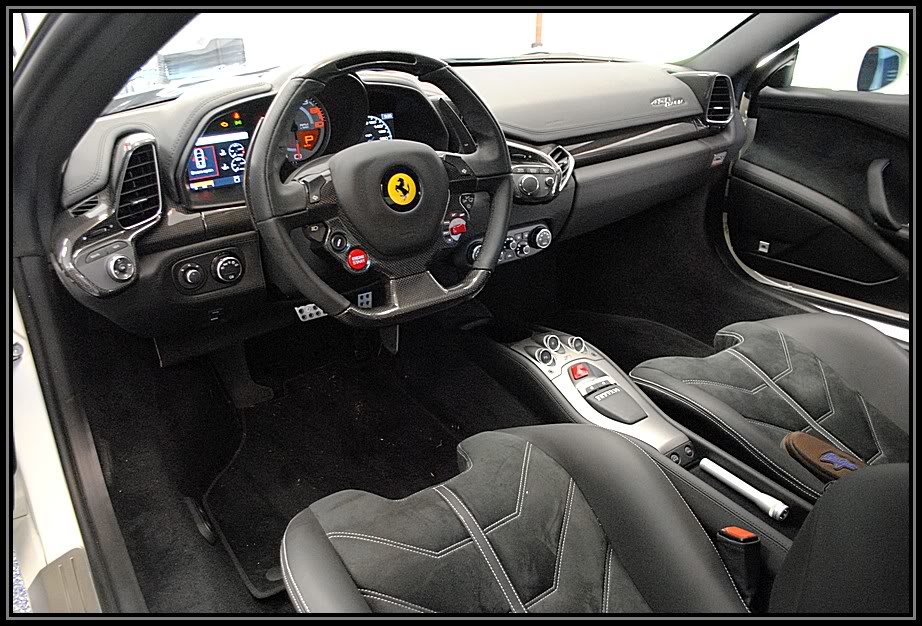

We left the BFWD to cure for a bit while we cleaned up the inside, we did a quick Vacum and Wipe down with some 303

Name:  1a0f91dd.jpg
Views: 227
Size:  142.1 KB

Name:  d2d291ab.jpg
Views: 162
Size:  145.1 KB

Name:  1c06ee5e.jpg
Views: 170
Size:  120.4 KB

Name:  346a0f48.jpg
Views: 193
Size:  113.8 KB

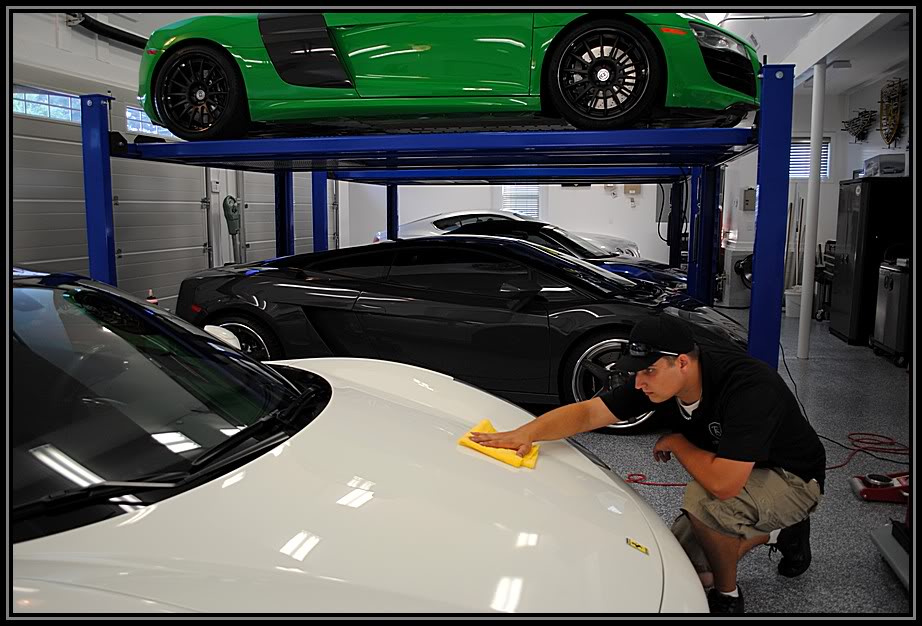

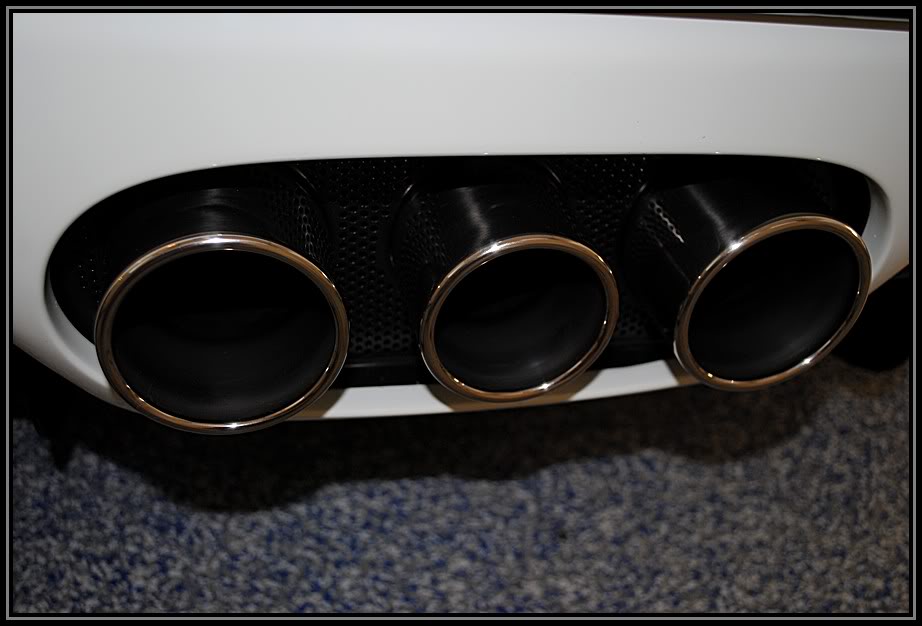

Then it was time to wipe off the BFWD and polish on the tips

Name:  7ae9c9fb.jpg
Views: 195
Size:  109.1 KB

Name:  5aab3294.jpg
Views: 175
Size:  133.1 KB

Name:  54512314.jpg
Views: 170
Size:  60.4 KB

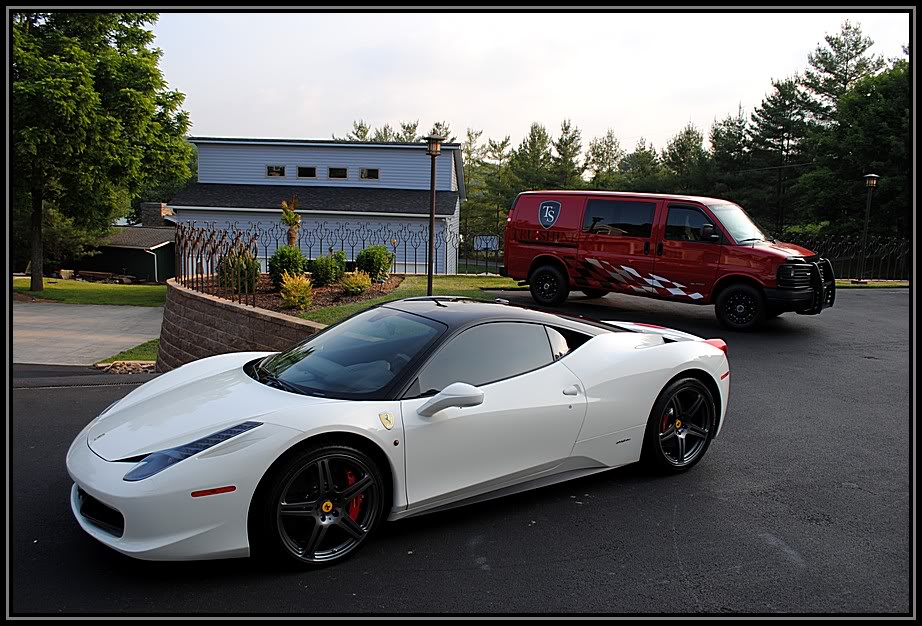

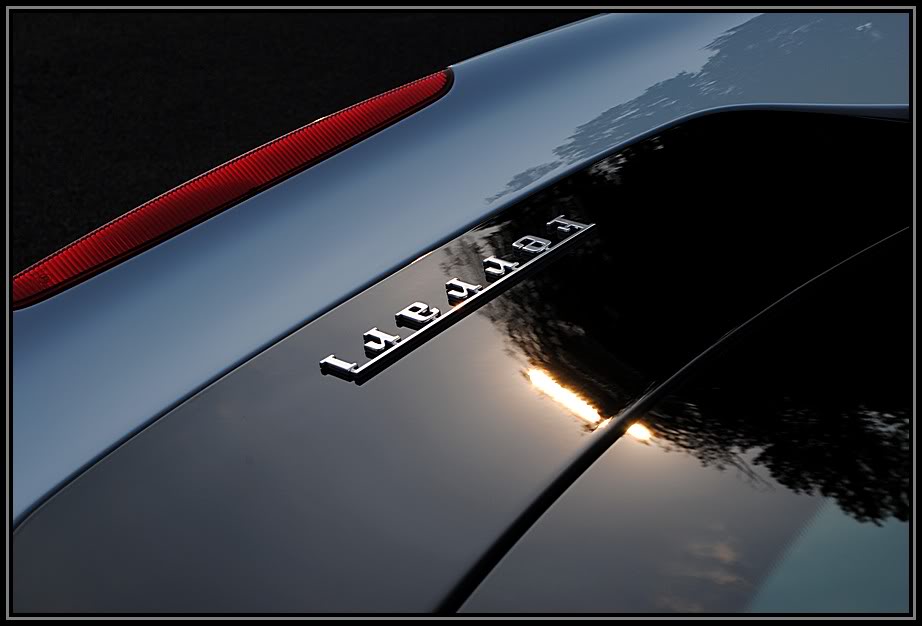

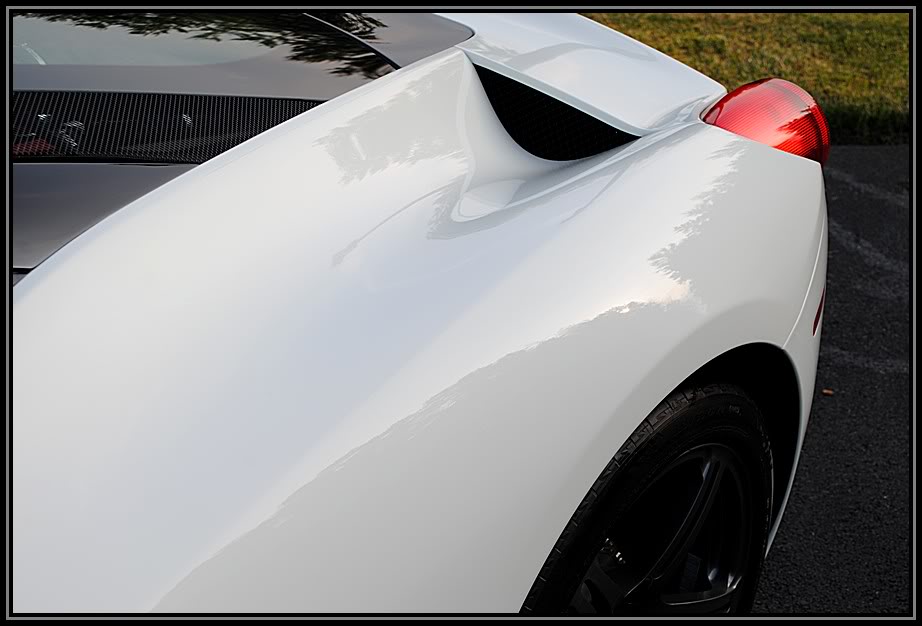

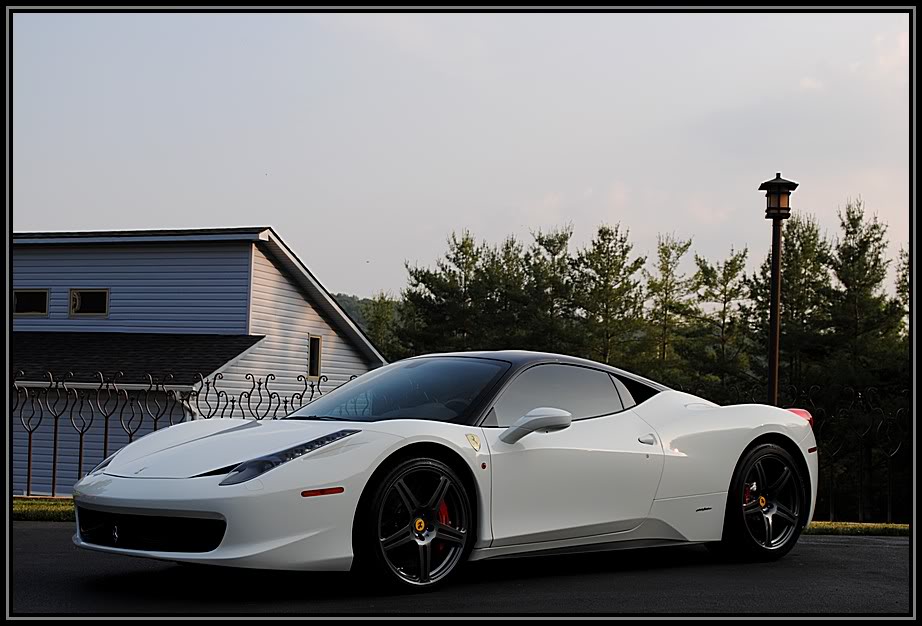

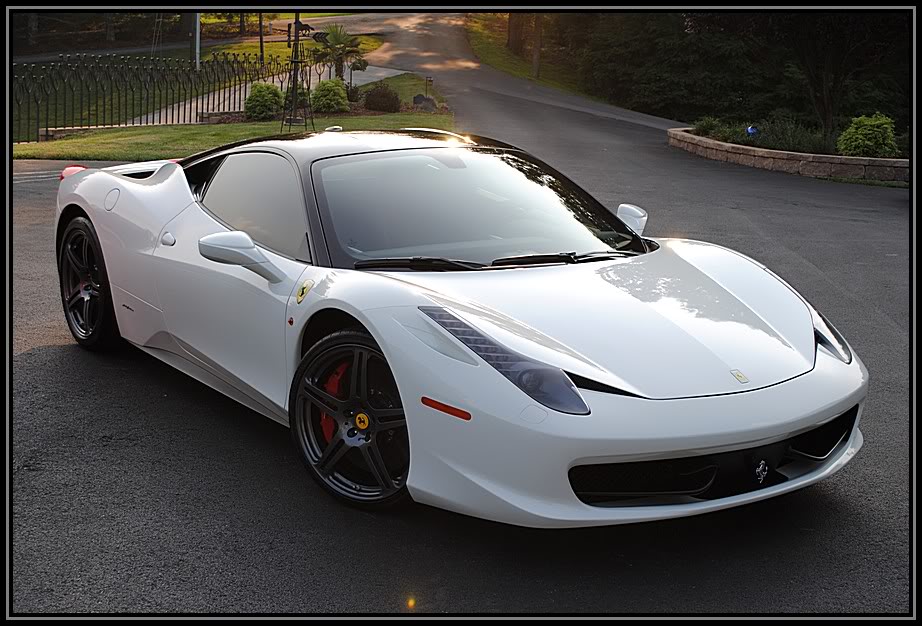

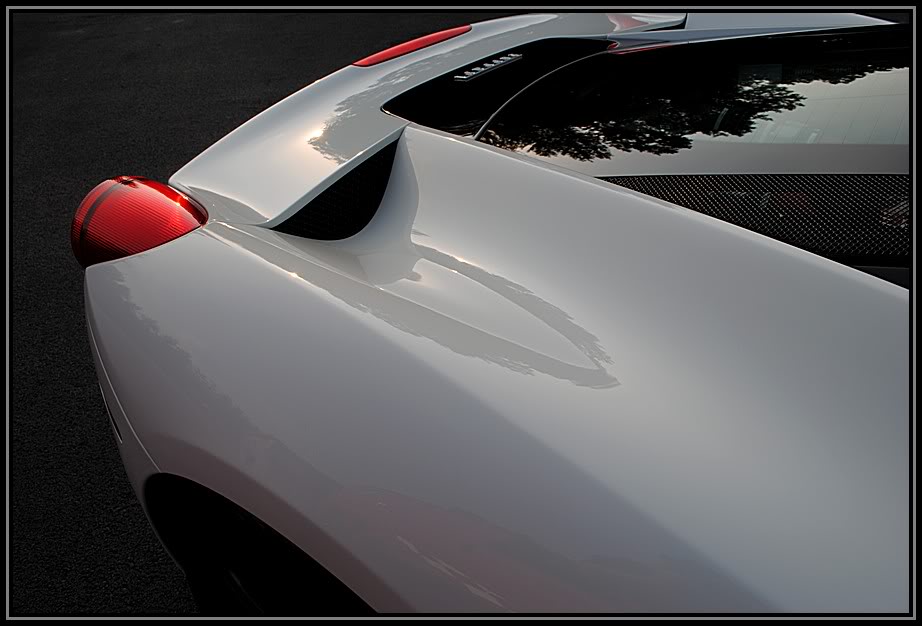

Then backed it out for the Final Pics.


Name:  077fab78.jpg
Views: 182
Size:  121.9 KB

Name:  4fc10d84.jpg
Views: 219
Size:  52.9 KB

Name:  83ad96d9.jpg
Views: 173
Size:  69.3 KB

Name:  3e62eb4d.jpg
Views: 197
Size:  92.5 KB

Name:  b3186cf3.jpg
Views: 216
Size:  63.2 KB

Name:  044a3d1b.jpg
Views: 229
Size:  138.3 KB

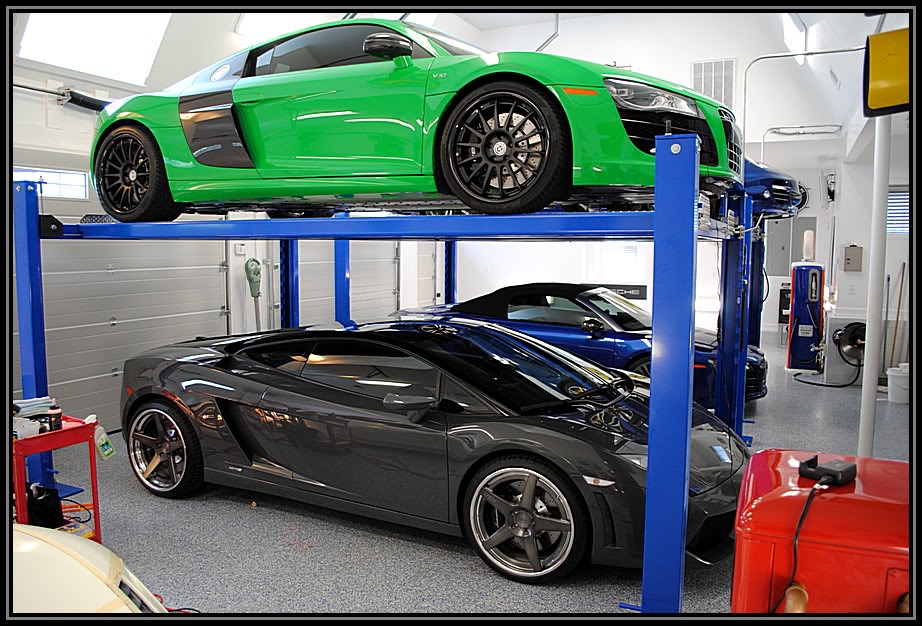

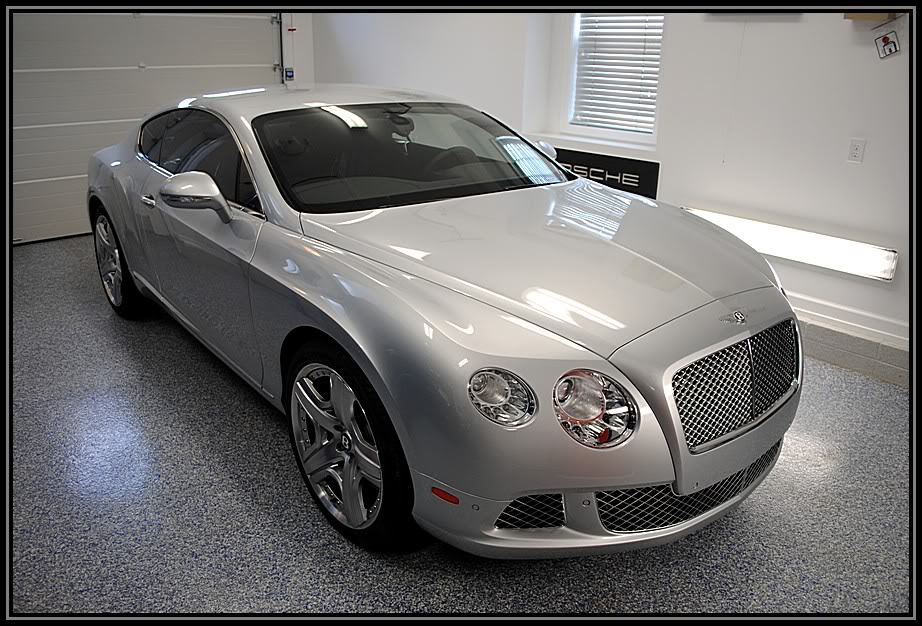

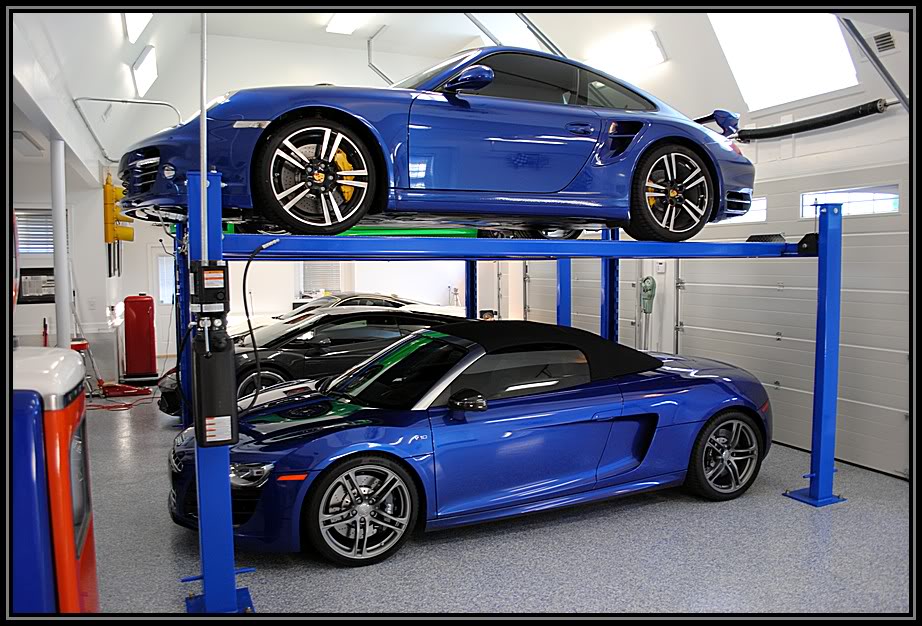

Bonus pics:

The Boss is home!
Name:  9bb0d8b8.jpg
Views: 196
Size:  144.9 KB

Name:  ba3636c5.jpg
Views: 167
Size:  156.0 KB

Name:  ea7c222c.jpg
Views: 151
Size:  142.0 KB


Thanks For Viewing, and Stay tuned for some 911 turbo and R8 Spyder action.....



Old Jun 3, 2011 | 02:43 PM
  #2
Koi's Avatar
Koi
Member
5 Year Member
iTrader: (7)
Joined: Feb 2008
Posts: 1,139
From: California, that's right
Great work as usual... sick garage

Old Jun 3, 2011 | 03:11 PM
  #3
doctordoom's Avatar
Supervillain
iTrader: (7)
Joined: Sep 2006
Posts: 4,261
From: Los Angeles/Orange County
5 Year Member
that guy's garage and fleet of cars are amazing

nice work as always

Old Jun 3, 2011 | 03:17 PM
  #4
JDMxGE8's Avatar
Member
5 Year Member
iTrader: (6)
Joined: Oct 2008
Posts: 5,658
From: Temple City, CA
Is there a Tru Shine in SoCal?

Old Jun 4, 2011 | 01:37 PM
  #5
j1nNju1c3's Avatar
Member
iTrader: (2)
Joined: Aug 2009
Posts: 1,497
From: San Diego CA
5 Year Member
Originally Posted by JDMxGE8
Is there a Tru Shine in SoCal?
x2 on this...

Sick work as usual...love it!

Old Jun 5, 2011 | 02:42 AM
  #6
Hootie's Avatar
Member
iTrader: (3)
Joined: Mar 2008
Posts: 5,093
From: South of Heaven
5 Year Member
Amazing work as always!

I have two detailing related questions for you...

1) The exterior B-pillars on my Fit have gotten a few scratches on them and I'm not quite sure on what items/tools/techniques to use to buff them out mostly due to them having a satin black finish.

What would you recommend doing to restore the pillars without affecting the satin finish?

2) On the exhaust of my uncle's E60 535i and his F10 535I, the exhaust tips become heavily stained with a thick coating of black smut that is very tough to remove with Zaino's car wash and a microfiber car wash sponge. This is even more an issue with the E60 due to the butterfly valve in one of the 2 exhaust pipes remains closed during normal driving until either wide open throttle or VANOS is active. So usually one tip will be as clean as a whistle while the other would be filthier than a Taco Bell restroom.

What would you recommend using and doing to remove the smut as well as prevent it from sticking onto the exhaust tips again?


Last edited by Hootie; Jun 5, 2011 at 02:45 AM.
Old Jun 5, 2011 | 05:21 AM
  #7
Koi's Avatar
Koi
Member
5 Year Member
iTrader: (7)
Joined: Feb 2008
Posts: 1,139
From: California, that's right
I think I've seen him cleaning dirty exhaust tips with a fine steel wool in previous posts.

For the b-pillar you might try mothers back to black or buff it out with a polish. Haven't tried either so don't take my word for it though.

Old Jun 5, 2011 | 11:17 AM
  #8
hayden's Avatar
Member
5 Year Member
Joined: May 2006
Posts: 1,899
From: tx
I'm starting to wonder if auto manufacturers go through this process before photographing their models for advertising, or if they just do a simple wax job. I think it would be interesting to approach an auto manufacturer with this proposition.

Old Jun 21, 2011 | 01:32 PM
  #9
Fallen_Rock's Avatar
Thread Starter
|
Member
iTrader: (2)
Joined: Jun 2009
Posts: 365
From: Knoxville TN
hey guys, sorry it took so long to get back, I dont get on FF much because I sold my fit and I have been crazy busy.

you can take #0000 steel wool and polish to the exhuast tips, and for the satin trim. I am not 100% sure one what you are asking?

Old Jun 21, 2011 | 06:03 PM
  #10
Hootie's Avatar
Member
iTrader: (3)
Joined: Mar 2008
Posts: 5,093
From: South of Heaven
5 Year Member
Originally Posted by Fallen_Rock
hey guys, sorry it took so long to get back, I dont get on FF much because I sold my fit and I have been crazy busy.

you can take #0000 steel wool and polish to the exhuast tips, and for the satin trim. I am not 100% sure one what you are asking?
Its all good and totally understandable. And I'll have to try the steel wool and polish out.

As for the satin B-pillars (the panels between the front and rear door's windows in my signature), I was wondering if there was a way to remove scratches from the pillars without the damaging (glossing up in other words) the satin finish?

Old Jul 6, 2011 | 09:59 PM
  #11
honda2112's Avatar
Member
5 Year Member
iTrader: (1)
Joined: Sep 2006
Posts: 315
From: Springfield, MA
I haven't been around the TID forums and I've been stale on cars of late since I'm re-doing my entire house and my work area is full of siding and insulation. Glad to see your still working on some beauties! How the hell do you get these customers? I've been trying forever!

Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
Fallen_Rock
Fit DIY: Repair & Maintenance
11
Nov 29, 2011 09:22 AM
Fallen_Rock
Fit DIY: Repair & Maintenance
8
Mar 9, 2011 08:29 PM
score04w
Fit Photos & Videos
6
Dec 3, 2009 06:40 PM
Fallen_Rock
For Sale / Want To Buy / Classified Ads for USED Fit Items
5
Jul 19, 2009 12:24 PM
qbmurderer13
Other Car Related Discussions
21
Jun 12, 2009 12:27 PM




All times are GMT -4. The time now is 08:12 AM.
