Acura CL Maplights w/Homelink install
I couldn't get one without the sunglasses compartment here in Canada, so I thought I'll give this bulky one a try... and it worked!
Hope this helps for whoever is interested

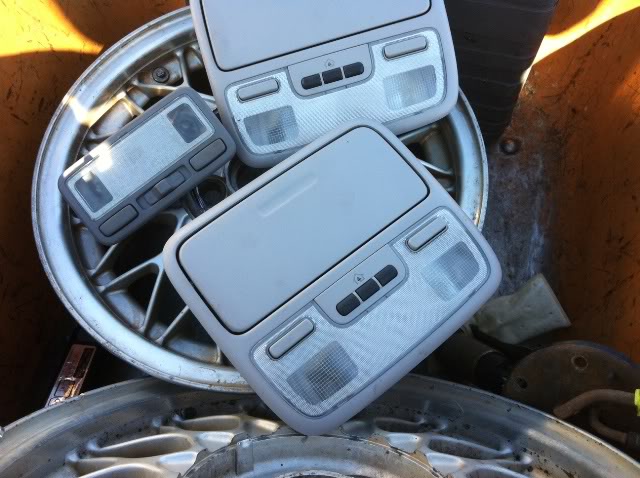

Bought this one off ebay, it's taken from a Honda Pilot. I soldered a connector.
ps. it's a b!tch to solder wires in that tiny space, get a connector if you can.

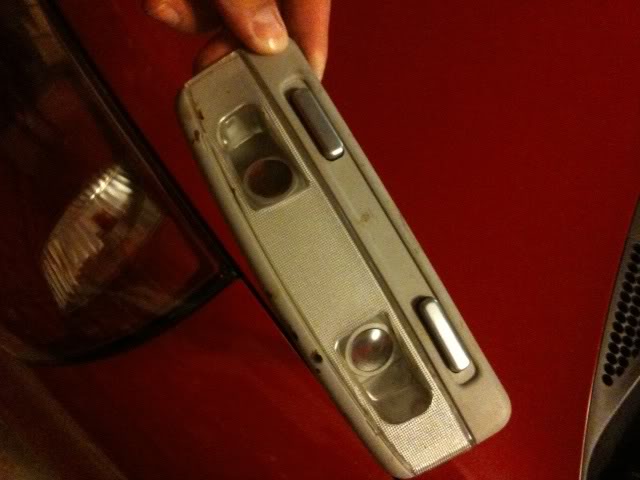

Got it cut like this. Mine didn't come with a bracket, so I use wood
So here's the trick to make it fit: I use two foam blocks to push the headliner out a bit, on mine it's pushed out by roughly 5mm. Just enough so that there's no gap between the unit and the headliner.
I didn't want to mess with the dome light wires, so I made myself some wire connectors, these are very common molex 4pin connectors found in computers.

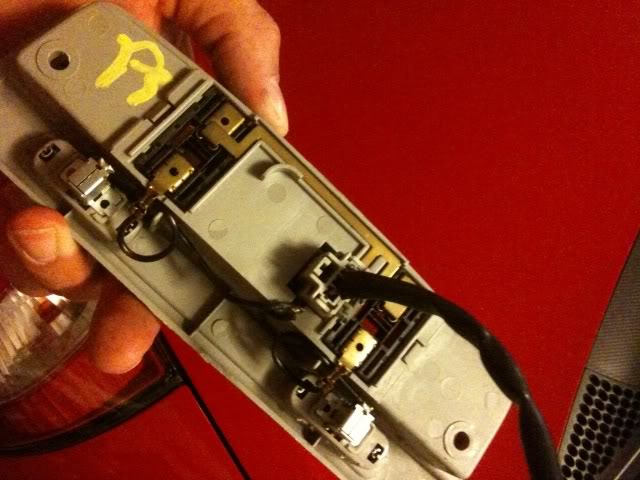

I hooked the wires up like this, wire is clipped with the light bulb. If you do it this way, by switching the dome light to ON it will also turn on your map light! If you don't like that behaviour then just tap into the dome light wires.
Red - 12V
Black - Gnd
Yellow - Door switched Gnd
the black plastic behind is the molex connector
Now put everything back together... Done!
Hope this helps for whoever is interested Bought this one off ebay, it's taken from a Honda Pilot. I soldered a connector.
ps. it's a b!tch to solder wires in that tiny space, get a connector if you can.
Got it cut like this. Mine didn't come with a bracket, so I use wood
So here's the trick to make it fit: I use two foam blocks to push the headliner out a bit, on mine it's pushed out by roughly 5mm. Just enough so that there's no gap between the unit and the headliner.
I didn't want to mess with the dome light wires, so I made myself some wire connectors, these are very common molex 4pin connectors found in computers.
I hooked the wires up like this, wire is clipped with the light bulb. If you do it this way, by switching the dome light to ON it will also turn on your map light! If you don't like that behaviour then just tap into the dome light wires.
Red - 12V
Black - Gnd
Yellow - Door switched Gnd
the black plastic behind is the molex connector
Now put everything back together... Done!
