In for the updates:

- I haven't finished yet.
- I still need to check the valve clearance and adjust if necessary.
-I spent 4 hours on it last night.
-The EGR chamber was crudded up and I cleaned it which took a while and the associated chambers in the intake manifold and block as well. -I replaced the PCV valve and removed and inspected the EGR valve. -The EGR valve appeared to be fine.
-The PCV valve was sluggished compared to the new one(what do you expect for 100k). -
-I also cleaned my air filter
-I lost 2 bolts but I found one; still on the hunt for the 1 bolt.
-Oh, I forgot to order the EGR chamber cover gasket. Hopefully the local dealer will have it or I will have to reuse the old one.
- I didn't take apart the intake manifold completely or remove the throttle body(I won't be using the red gaskets for the manifold that connects the plastic to the aluminum parts)

Pics:

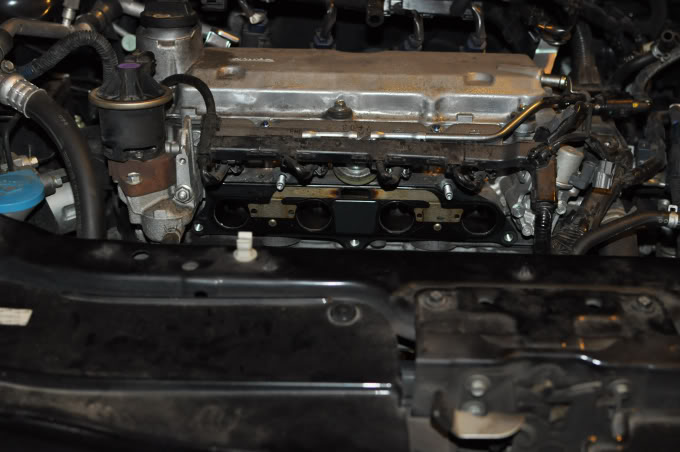

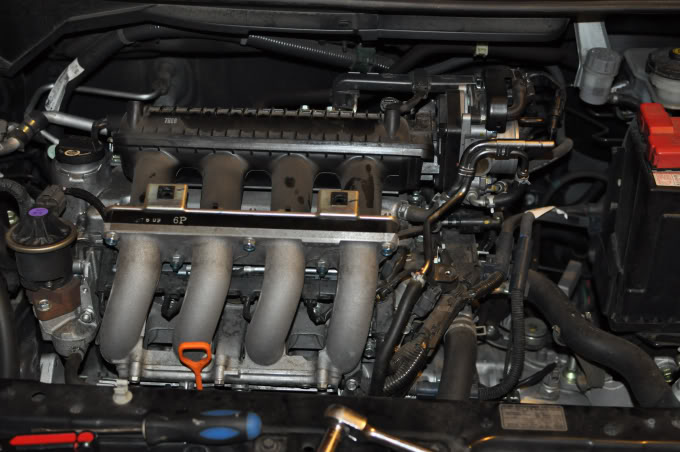

wheres the manifold:

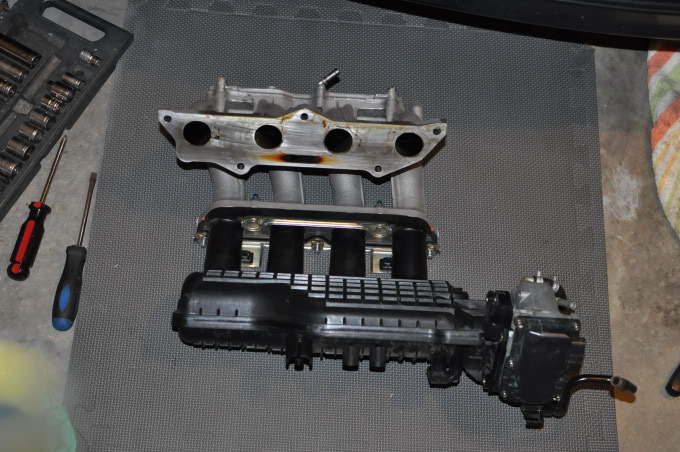

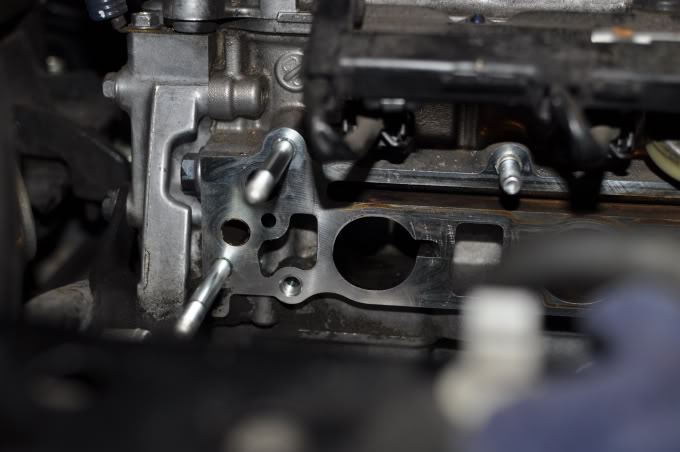

There it is:

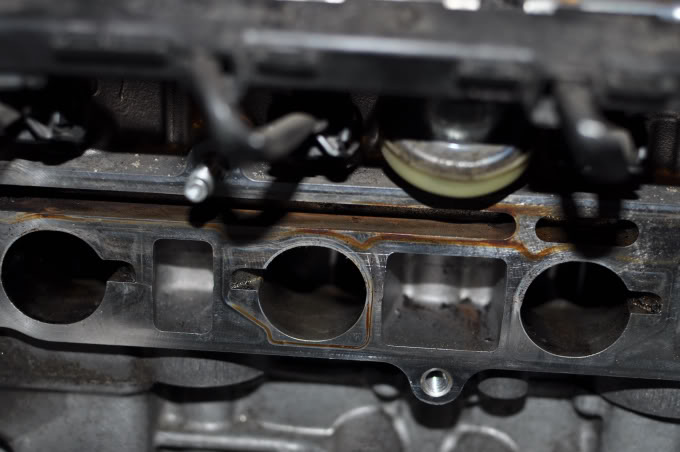

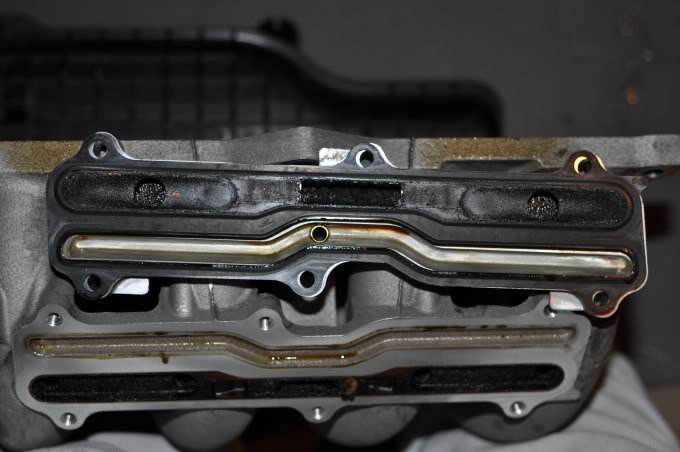

a little build up:


IM gasket:

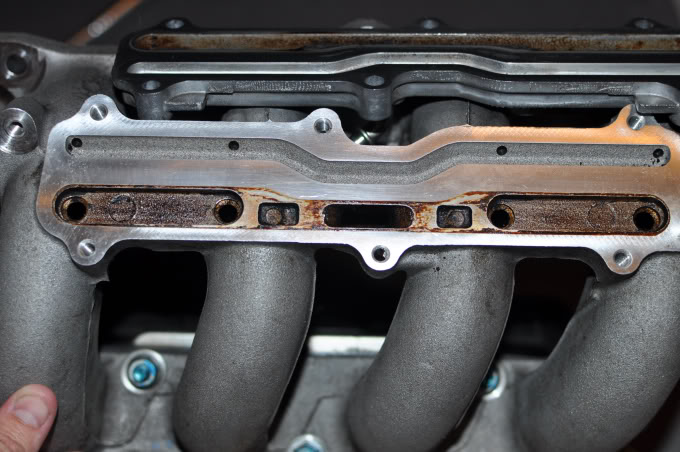

crude:

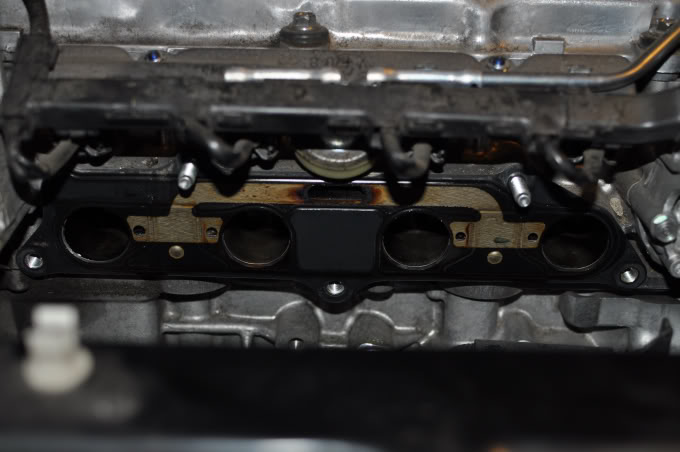

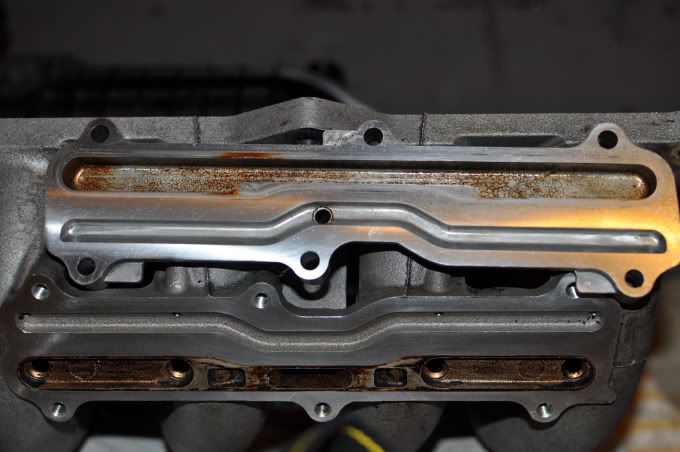

chamber with gasket:

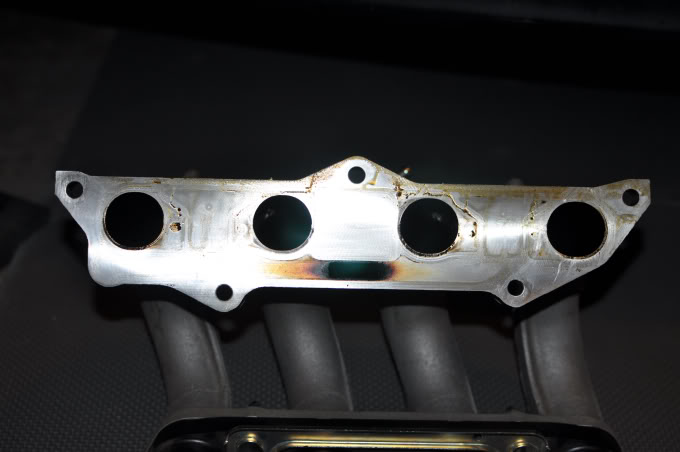

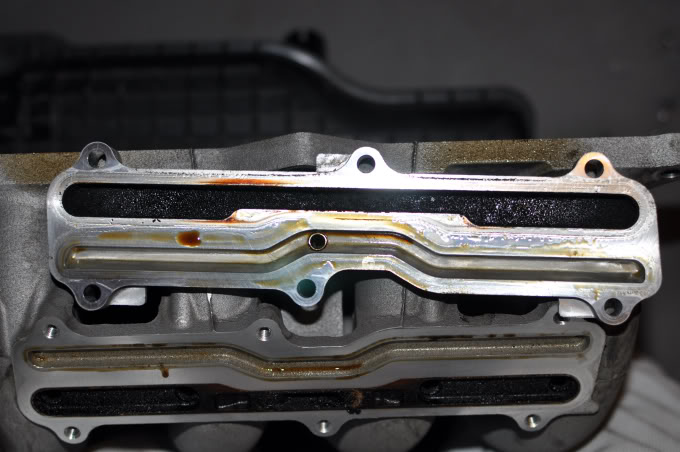

chamber w/o gasket:

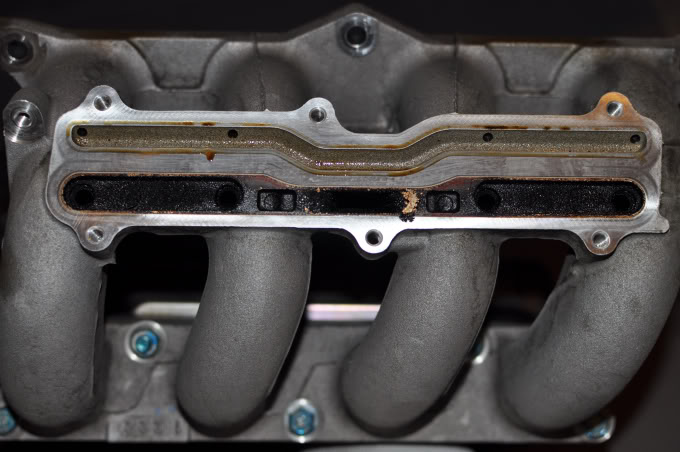

cleaned:




:

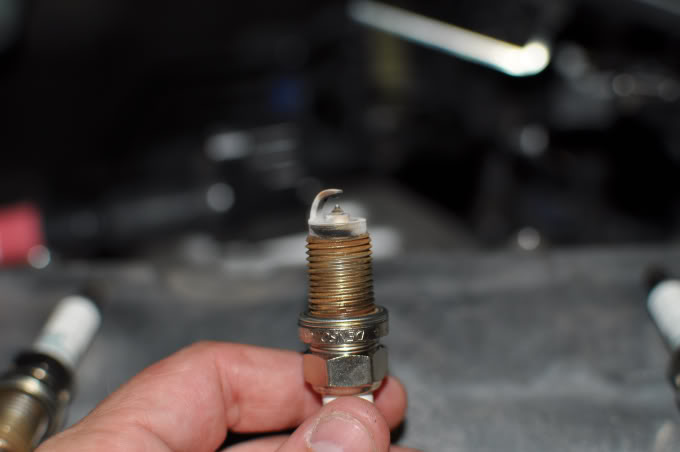

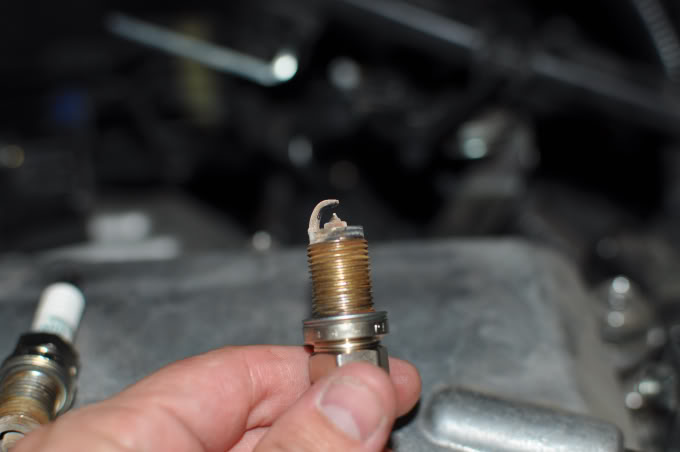

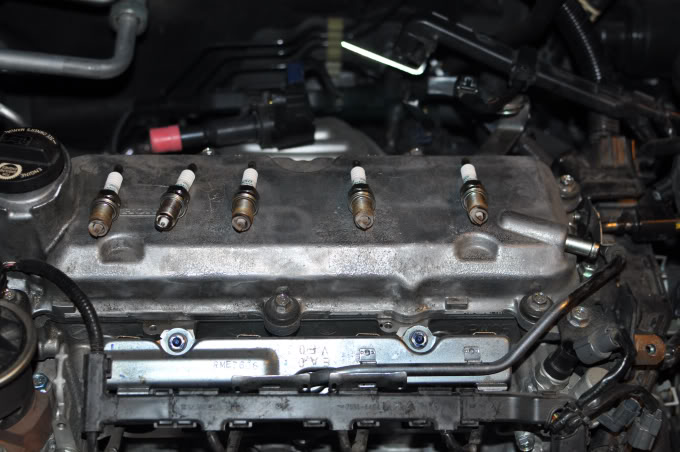

plug1:


plug2:


plug3:


plug4:

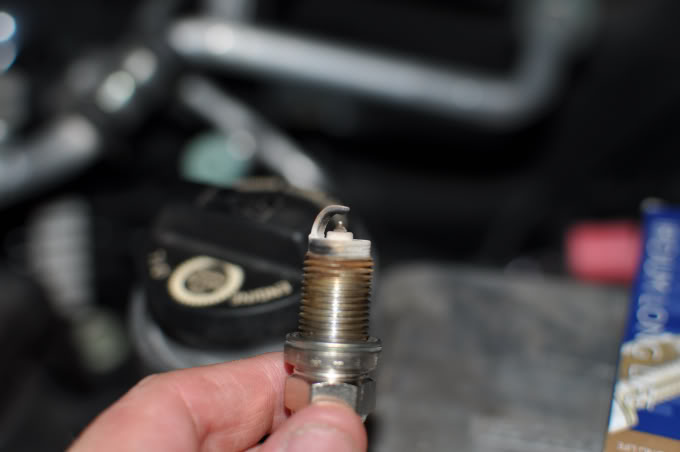

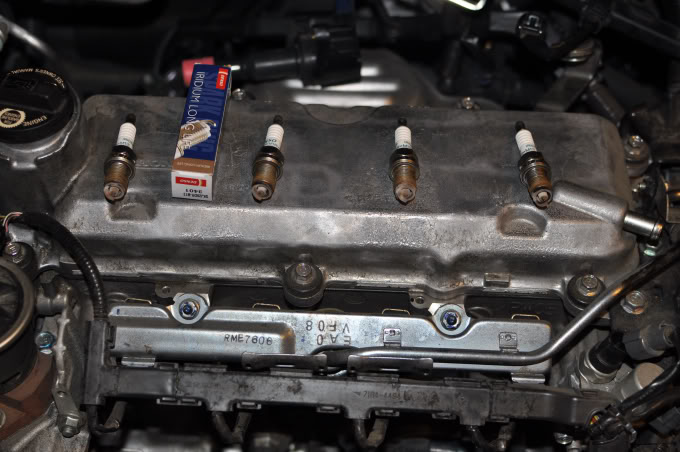

any difference?


EGR:

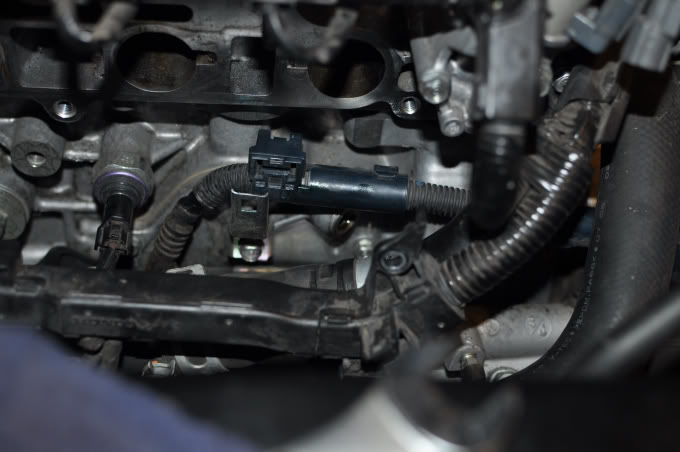

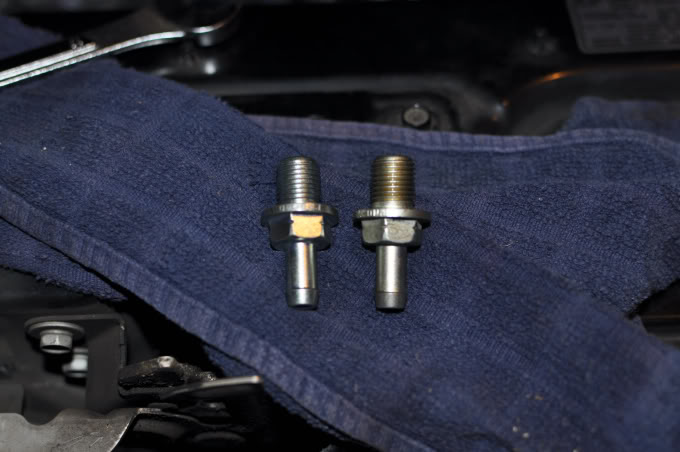

PCV valve, you can't even think about getting to the with the IM on:

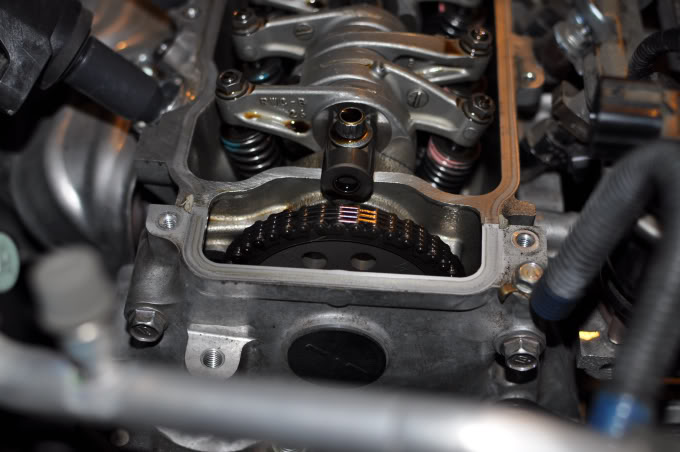

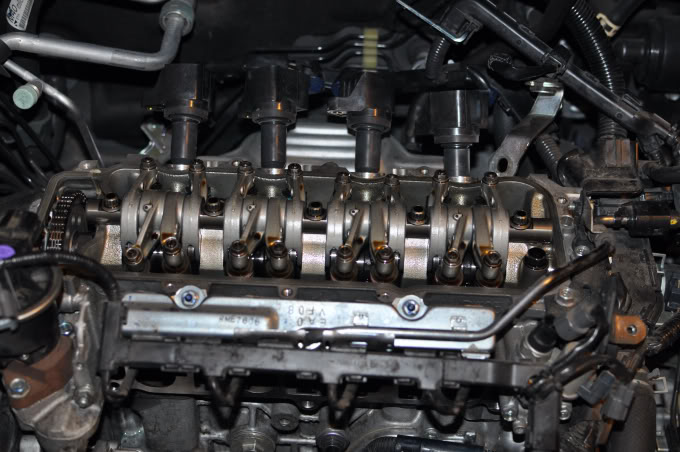

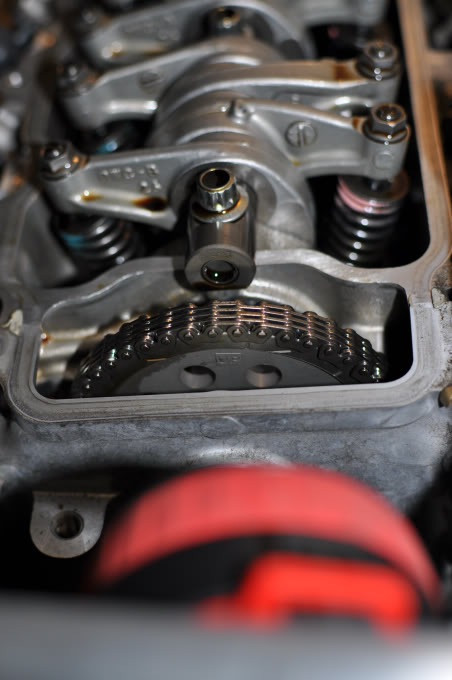

VC removed:



The head looks great no tarnishing, MOBILE 1 0w20 synthetic FTW



Really good photos.

Very interesting to see. Keep the series going.

Found that bolt yet?



updates:

- haven't found the bolt yet. :P
- Well, adjusting the valves was a pain in the ass!!!
here were the clearances:
#1 - I - .009 E - .010
#3 - I - .009 E - .007
#4 - I - .009 E - .011
#2 - I - .009 E - .008

I adjusted them to I - .006 E - .012

I did this because the Intake seemed to loosen up while the Exhaust seemed to tighten up.

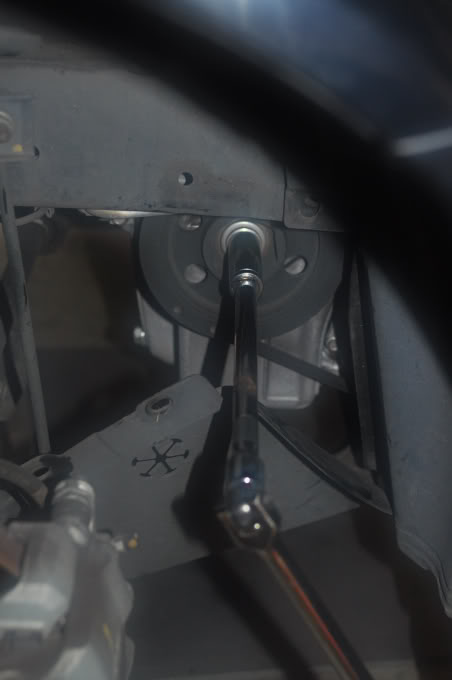

Also, you must remove the passenger tire and part of the under guarding to access the crank bolt in order to rotate the crank. I must have removed about 6 of the plastic nail/screws and luckily none broke. :P

It was hot and my camera fogged up :P


#1


Also, I have drained the coolant and oil and oiled the K&N air filter. All that is left to do is put it back together. :P

Oh, no one has the EGR chamber cover gasket. I will be reusing the original one. It looks fine since I cleaned it off.



I am finally finished! That was an adventure, one lost bolt, a few cuts and I had to reuse a gasket. I just need to wash the car but thunderstorms are brewing. This will be a difficult project for people with big hands. This is very time consuming. I wish everything was easily accessible like the D and B series motors. This is well worth a $100+ dealer charge. I believed I had to remove 6 hoses and 6 senor clips to remove the manifold not to mention the bolts are a pain to get to and the gaskets weren't cheap! I hope I don't have to do this for another 100k.
