Radio removal on a 2015 fit

I was hoping to find some info on removing the radio. I have the non navi touch screen radio. I want to integrate a bazooka sub woofer......also has anyone located the ground wire that disables the video playback to function while driving. Driving off road of course....

  #2
Old 09-25-2014, 12:08 AM
daveds50's Avatar
Member
Join Date: Sep 2014
Location: Las Vegas, NV
Posts: 25
watching this thread... as i will be doing it sometime in the near future for modification of the factory unit.

  #3
Old 10-07-2014, 10:58 AM
ROTTBOY's Avatar
Super Moderator
Join Date: Mar 2014
Location: Hawaii: relocated to Western Canada Sept, 2015
Posts: 1,116
Originally Posted by op420
......hoping to find some info on removing the radio.........
Originally Posted by daveds50
watching this thread......
Now there are three of us wanting some HU removal tips.

If someone could post pics and a step-by-step procedure, I, for one, will be eternally gratefull.

Should be starting the stereo component install by next week when all the sound-deadening is complete.

  #4
Old 10-07-2014, 10:14 PM
Superfly's Avatar
Member
5 Year Member
Join Date: Sep 2014
Location: Cincinnati, OH
Posts: 57
OK, maybe these will help.

This is the lower piece with the aux jacks. There is one screw on the front, not hard to find. Then pull. The rest is clips.

Name:  NoPyYFc.jpg
Views: 334
Size:  90.8 KB

Next remove the gauge trim, then the vent piece above the radio. You have to pull on them. They're only held in with clips but the gauge trim has to come out first.

Name:  KiXDW2R.jpg
Views: 325
Size:  120.1 KB

Name:  ruX8l3u.jpg
Views: 323
Size:  113.0 KB

Name:  86F3gui.jpg
Views: 321
Size:  108.7 KB

Name:  xGcKzss.jpg
Views: 325
Size:  106.0 KB

Then remove the two 8mm bolts on top of the radio.
Name:  8fmFOqY.jpg
Views: 321
Size:  88.4 KB

Finally, one 8mm bolt going up into the radio. It's already removed in the pic but if you remove the glovebox you can see it under the radio.

Name:  twsa7Of.png
Views: 324
Size:  229.9 KB

After that, just grab the top of the radio and pull. It will unclip.

  #5
Old 10-07-2014, 10:21 PM
ROTTBOY's Avatar
Super Moderator
Join Date: Mar 2014
Location: Hawaii: relocated to Western Canada Sept, 2015
Posts: 1,116
[QUOTE=Superfly;1269678].....OK, maybe these will help.............[QUOTE]

Superfly, helpful as always. The pics posted sez it all!!!

A thousand thanks!!!

  #6
Old 10-07-2014, 10:39 PM
Superfly's Avatar
Member
5 Year Member
Join Date: Sep 2014
Location: Cincinnati, OH
Posts: 57
No problem, I'm glad I could help. Sorry for taking so long to get them posted. Been super busy lately.

  #7
Old 10-10-2014, 12:39 AM
payluder's Avatar
Member
5 Year Member
Join Date: Aug 2014
Location: Some where
Posts: 179
Originally Posted by Superfly
No problem, I'm glad I could help. Sorry for taking so long to get them posted. Been super busy lately.
Dude this helps a lot man. Do you also have info on which plug holds the speaker wires? If I can find the speaker wires maybe I won't have to have my amps installed by someone else.

  #8
Old 10-10-2014, 06:16 AM
Superfly's Avatar
Member
5 Year Member
Join Date: Sep 2014
Location: Cincinnati, OH
Posts: 57
It's the big plug on the upper right as you're looking at the back of the unit. After doing some resistance tests I found the red and green pair is right front (red is -,green is +), the black and white pair is left front (white is -, black is +). I know the colors seem backwards from typical +- but they tested correctly on charge when I tested the voltage on them.
I didn't test the rear lines as I'm not going to use them. Just concerned with front soundstage however I do know there are 2 more pairs of wires that are them. There are also 5 more wires but they're all together, not in pairs, and then 2 bigger wires that are obviously main power and ground.

  #9
Old 10-10-2014, 12:55 PM
CIOWN's Avatar
Member
5 Year Member
Join Date: Sep 2014
Location: Coppell,Texas
Posts: 121
Originally Posted by Superfly





I have my TomTom GPS center mounted above the vents but I don't like that its power cable (traffic antenna) has to be routing down to the power outlet in the accesessary area.

Is there any space on the vent trim to mount a 12V Power Outlet?

Like this one:
http://www.ebay.com/itm/110890384306?autorefresh=true
If so, can the new power outlet wiring be sent down inside past the radio to the lower accesessary port area where the other power outlet is?

Thanks

  #10
Old 10-10-2014, 03:01 PM
Superfly's Avatar
Member
5 Year Member
Join Date: Sep 2014
Location: Cincinnati, OH
Posts: 57
That piece looks overly complicated. Just buy this, Robot Check
cut the wire and splice it into the wires on the back of the accessory outlet, run the wires for the all behind the dash and plug it in back there. No need to mount the new outlet, just tuck it in behind the radio/dash.

  #11
Old 10-13-2014, 09:58 PM
ROTTBOY's Avatar
Super Moderator
Join Date: Mar 2014
Location: Hawaii: relocated to Western Canada Sept, 2015
Posts: 1,116
While doing sound deadening to the boot area yesterday, decided to tackle trim removal to access the HU.

Follow Superfly's steps and removal is a breeze.

Name:  2015HondaFitInstrumentsurroundremovalOct122014.jpg
Views: 4014
Size:  48.1 KB


Name:  2015HondaFitACventremovalOct122014.jpg
Views: 4000
Size:  50.3 KB

Should be able to start wiring and component testing by this weekend once I figure out the harness.

  #12
Old 10-15-2014, 03:25 PM
NoVAFit's Avatar
Member
5 Year Member
Join Date: Sep 2014
Location: Nova
Posts: 32
anybody know if the EX-L 2015 fit has a factory amp powering the speakers? I am looking to upgrade the factory speakers as well as adding an amplifier to power them as well as a sub but wasn't sure if something like this would work on our cars...

Alpine KTP-445U Power Pack Upgrade any car radio to 45 watts RMS X 4 at Crutchfield.com

  #13
Old 10-15-2014, 04:34 PM
ROTTBOY's Avatar
Super Moderator
Join Date: Mar 2014
Location: Hawaii: relocated to Western Canada Sept, 2015
Posts: 1,116
Originally Posted by NoVAFit
............EX-L 2015 fit has a factory amp powering the speakers?...........
Unfortunately, it doesn't have an amp. BTW nice components. Ya gotta post your install.

Update Oct. 18, 2014:

Seats are out and proceeded to install CLD, CCF and MLV in the front and rear floor area.

Name:  AllseatsremovedwithcarpetinplaceOct162014.jpg
Views: 3997
Size:  76.7 KB


Factory Sound deadener (no need to overlap these) Rear seat floor

Name:  RearfloorBareOct162014Fromtrunk.jpg
Views: 3998
Size:  54.7 KB

CLD Tiles in Rear floor area

Name:  CLDFrontandrearfloorOct162014LeftVAVApeeping.jpg
Views: 3994
Size:  65.1 KB



MLV/CCF installed REar seat floor

Name:  2015FitMLCCCFInstalledOct172014FrontandRearfloor-1.jpg
Views: 3983
Size:  50.9 KB



CLD on Front floor area

Name:  2015FitMLVCCFInstalledOct172014Rearfloor.jpg
Views: 4038
Size:  68.9 KB


MLV/CFF on right front floor

Name:  2015FitMLVCCFInstalledOct172014Frontrightfloor.jpg
Views: 3985
Size:  53.3 KB


Will lay out the wiring on Monday and hoping I can dry-run the system by next weekend.


Last edited by ROTTBOY; 10-18-2014 at 07:21 PM.
  #14
Old 10-19-2014, 09:53 PM
ROTTBOY's Avatar
Super Moderator
Join Date: Mar 2014
Location: Hawaii: relocated to Western Canada Sept, 2015
Posts: 1,116
Started wire layout and install

Here's the latest (likewise posted in the What Mods...... thread):

..........started on the wiring from the HU to the spare tire storage area.

HU wires will be connected directly to the OEM speaker connector for both the F & R speaker as well as the tweeters on top of the dash.

Name:  StereowiresbehindHUinSplitloomOct192014.jpg
Views: 4607
Size:  88.2 KB

Wires in its own harness cover passing through the center console

Name:  StereowirepassingCenterConsoleinSplitloomOct192014.jpg
Views: 3964
Size:  47.0 KB


Wires in harness cover to the spare tire cover

Name:  TrunkareastereowiresfromHUforAudison-SplitloomOct192014.jpg
Views: 4092
Size:  101.9 KB

Tomorrow will finish up the layout of speaker wires to the doors (finished routing to the left rear door) and to the sub (under the right front seat).


Left rear door wire and speaker install:

Speaker wire from crossover fished through door grommet

Name:  CrossoverrearleftspeakerwooferwirefishedOct192014.jpg
Views: 3980
Size:  70.1 KB

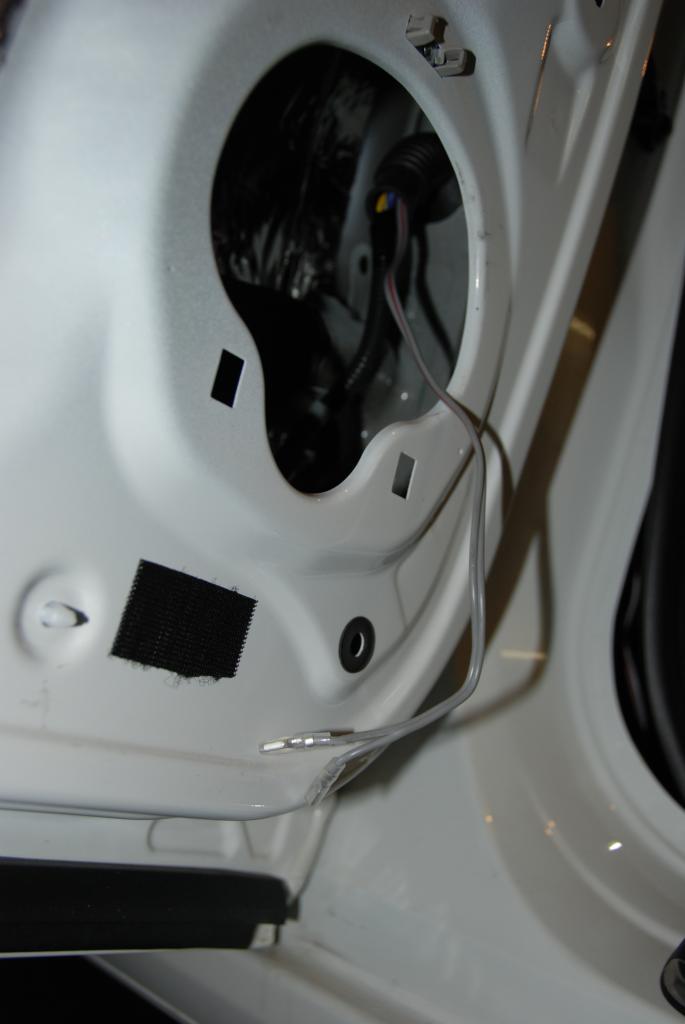

Speaker wire through inner door grommet

Name:  rearleftspeakerwooferwirethroughrubberdoorgrommetOct192014.jpg
Views: 3943
Size:  42.3 KB

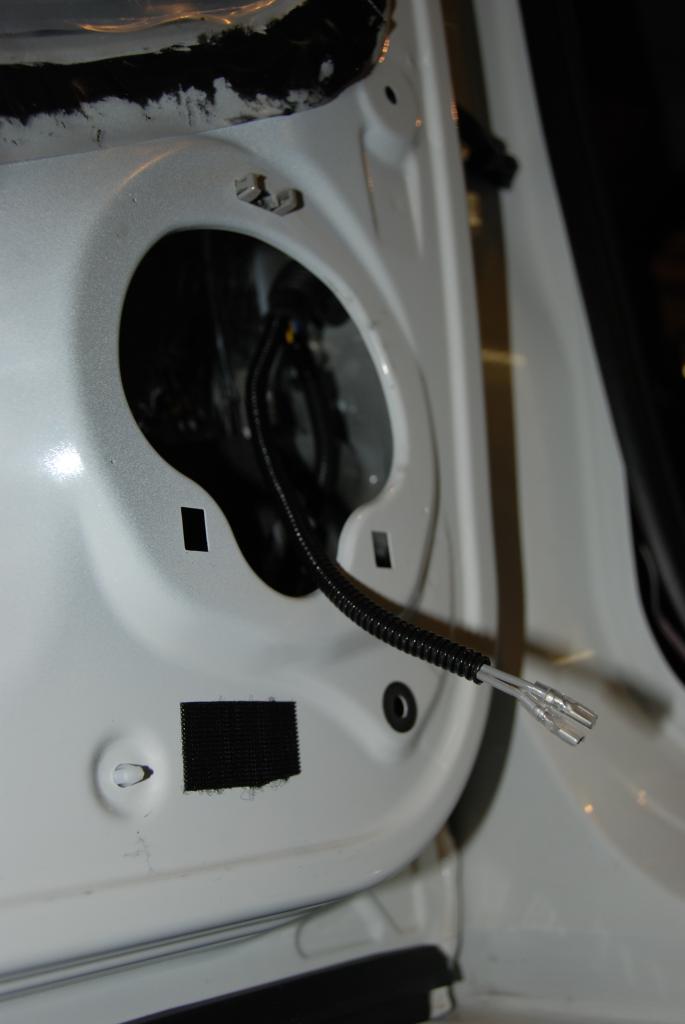

Speaker wire loom covered

Name:  StriploominstalledrearleftspeakerwooferwirethroughrubberdoorgrommetOct192014.jpg
Views: 3955
Size:  44.1 KB


Speaker installed using adaptor brackets.

Name:  PolkspeakerinstalledrearleftdoorOct192014.jpg
Views: 3962
Size:  72.0 KB


Speaker and crossover wired. Crossover will be installed on the pillar (middle portion) behind the seat belt. There's lotsa space there. Being very light, most probably will use industrial double-sided tape. Am not a fan of drilling when I don't really have too.


Name:  PolkspeakerandcrossoverinstalledrearleftdoorOct192014.jpg
Views: 3968
Size:  71.1 KB

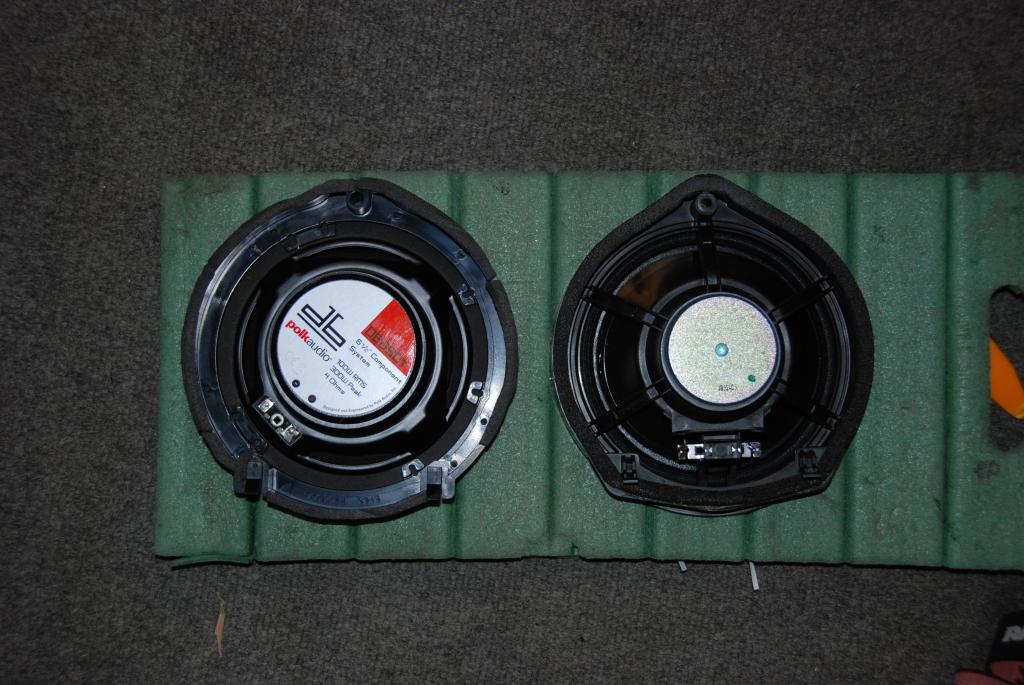

Compare the factory OEM speakers with the mid-range priced Polks. Bigger magnets and twice the weight. Easy to figure out why Honda had to boost equalization from the OEM HU to make those factory tinny speakers sound decent.

Name:  PolkvsOEMspeakerOct202014Top.jpg
Views: 4008
Size:  109.9 KB

Name:  PolkvsOEMspeakerOct202014Top.jpg
Views: 4008
Size:  109.9 KB

Name:  PolkvsOEMspeakerOct202014Side.jpg
Views: 4320
Size:  96.0 KB




Update: remaining doors done today 10/20:




Finished install of speakers and crossovers on the remaining doors. Feeding through the door-grommet was easy enough except for the front driver's door. On the rubber boot attached to the body, there is a plastic surround base. To add to the difficulty, once past, there is a double wall so fishing the wire was tedious.

Rear Right door bare wire

Name:  rearleftspeakerwooferwirethroughrubberdoorgrommetOct192014.jpg
Views: 3943
Size:  42.3 KB


REar right door. Wire with conduit.

Name:  StriploominstalledrearleftspeakerwooferwirethroughrubberdoorgrommetOct192014.jpg
Views: 3955
Size:  44.1 KB


Speaker connected to crossover - Right rear door

Name:  SpeakerandcrossoverinstalledOct202014Rightreardoor.jpg
Views: 4029
Size:  53.3 KB

Right front door Wire ready for install w/ conduit

Name:  SpeakerwireloomedandinstalledOct202014Rightfrontdoor.jpg
Views: 3938
Size:  51.4 KB


Speaker, tweeter connected to crossover Right front door




Speaker ready for install Left front door

Name:  SpeakerwireloomedandinstalledOct202014Leftfrontdoor.jpg
Views: 3967
Size:  41.1 KB


Speaker, tweeter connected to crossover Left Front door

Name:  SpeakerandcrossoverinstalledOct202014Leftfrontdoor.jpg
Views: 3974
Size:  59.2 KB


Next, will layout the remaining wires and will make a temporary hook-up to the powered components. Can't wait to test.

Won't be till this weekend though - wife arrives in a couple of days so will be busy doing my regular errands.



UPDATE: Wires, wires and more wires 10/21


Speaker wires laid out from sound processor and connected to crossovers.

Name:  WireslaidouttodoorspeakercrossoversOct212014.jpg
Views: 4193
Size:  91.1 KB

A mess of wires getting ready for hook-up to sound processor (to be mounted on spare tire cover right beside the amp.)

Name:  AudisonwiringbeginsOct212014.jpg
Views: 3980
Size:  78.4 KB

Speaker wires and Remote ON soldered and shrink-wrap connected to sound processor harness.

Name:  AudisonHarnesswiredOct212014.jpg
Views: 4200
Size:  85.7 KB


Tomorrow will mount and wire the power and negative cables from the battery will go to respective blocks to provide "juice" for the processor, amp. and powered sub.


Last edited by ROTTBOY; 10-22-2014 at 01:49 AM.
  #15
Old 10-22-2014, 08:10 PM
ROTTBOY's Avatar
Super Moderator
Join Date: Mar 2014
Location: Hawaii: relocated to Western Canada Sept, 2015
Posts: 1,116
Power and components wired

Wires and components finally laid out

Name:  DSC_0001.jpg
Views: 3944
Size:  123.0 KB

Power Blocks installed.

Positive block straight to battery. 4 gauge cable was fished through the rubber boot located on the engine firewall slightly below the brake reservoir.

Name:  DSC_0005.jpg
Views: 3949
Size:  82.7 KB

Negative block connected to rear seat bolt

Name:  DSC_0006.jpg
Views: 3955
Size:  88.2 KB

Kenwood Amp and Sound processor wired

Name:  DSC_0002.jpg
Views: 4071
Size:  117.7 KB


Kenwood powered sub wired


Name:  DSC_0004.jpg
Views: 4288
Size:  95.3 KB


Before starting all my projects, had so much time and thought everything was covered. NADA! Will go to Autozone or our local parts store tmrw and score 4 gauge and 6 gauge power cables for the amp.

As previously mentioned, OEM HU connector should arrive this weekend and am targeting Sat. for the first sound test. Should that fare well, it'll be another couple of days to tidy and secure up all wires, power blocks, components.

Finally, interior reinstall and then DRIVE, DRIVE, DRIVE at long last!!!!!!!!!


UPDATE 10/23: Clean-up of wires started today. Will make things permanent once the testing and calibration are done.


Name:  Cleaningupwires-initialworkclose-up.jpg
Views: 4396
Size:  122.9 KB


UPDATE 10/25: Sound test done today with temporary power wires in place.

Let me say that the objective of getting the sounds to be as good than my wife's OEM Mark L. has not only been achieved but surpassed.

The sound processor is amazing. Volume can be pumped up all the way resulting is super clean sound w/ zero distortion. The key is to get the initial sensitivity right. That took me less than 10 minutes to finalize.

De-equalizing the HU was a different story. After finally figuring out the blinking light sequence, it achieved Equalization. That took 1 hour.

Hooked up the amp and sub. The initial sounds were already better than the HU but not up to par with the money spent. Proceeded to adjust the amp. sensitivity and hi/lo filters.

THAT DID IT! IMO, it now sounds audiophile quality or damn close to it. Clean, undistorted music with a full firm bass. That little self-powered Kenwood sub is pretty amazing for its size.

After 3 hours of listening, will take a break and re-listen tomorrow after my football games. Am quite stoked with these results!!!!


Last edited by ROTTBOY; 10-25-2014 at 09:26 PM.
  #16
Old 10-28-2014, 03:08 PM
Join Date: Jul 2014
Location: Los Angeles
Posts: 227
I know what you mean by de-equalizing, but the head unit cannot do this on its own right? You are using your sound processor to de-equalize?
Any way to get signal going to the front speakers that ISN'T jacked up, without additional hardware?

  #17
Old 10-28-2014, 03:32 PM
NoVAFit's Avatar
Member
5 Year Member
Join Date: Sep 2014
Location: Nova
Posts: 32
Originally Posted by Bigbadvoodooguru
I know what you mean by de-equalizing, but the head unit cannot do this on its own right? You are using your sound processor to de-equalize?
Any way to get signal going to the front speakers that ISN'T jacked up, without additional hardware?

The sound processors purpose is to de-equalize whatever signal the factory HU is sending to the speakers. In this case, his audison is whats performing this process.

I don't know of any other way to do this (signal processor) other than adding an aftermarket HU, meaning you will need some type of hardware.

Instead of the Audison Rottboy is using, I purchased the Audiocontrol LSQ-1. It's not as pricey and not as customizable as the Audison and it's also not able to be tuned using a laptop like the Audison is. There are also a few complaints the Audiocontrol introduces sound (hiss) into the speakers whereas the Audison is silent. Hope that helps



ADDL. comments:
There are many SP's in the market (e.g. JL Clean Sweep, JBL MS8, Mosconi 6to8, Alpine EX series, and the list goes on). It all depends on what you want to accomplish as they mostly do a good job.
In my case, will be going to a audio shop in the next two weeks, once I've installed some other non-ICE related accessories, and finally reinstall the interior. Sadly, will be paying the bucks to have my system professionally EQ'd (was quoted a range from $50 - $150 depending on time spent). Its good now but since the time and money was spent, I figure, might as well do it right all the way.
Superfly is on the right track. He's using the laptop to configure the EQ settings to get the optimum sound for his listening. Have to admit that my computer skills leave lots to be desired, plus my listening abilities are not what they used to be.
NovaFit, am sure you can eliminate the "hiss" from the LSQ-1. Join DIY Audio Forum and those guys are always ready to give a helping hand. Just from reading the various threads, my learning curve jumped dramatically making my install less stressful.
Good luck and keep us informed. - rttby


Last edited by ROTTBOY; 10-28-2014 at 04:44 PM.
  #18
Old 10-28-2014, 03:38 PM
Superfly's Avatar
Member
5 Year Member
Join Date: Sep 2014
Location: Cincinnati, OH
Posts: 57
Just installed a bit ten this weekend and got to tweak it last night on the laptop. It's a really cool piece of hardware and definitely allows you to fine tune in a way you couldn't do otherwise. I can definitely notice a difference already and I'm not finished tweaking. I've got plenty of equalizing to do on that 31 band eq.

  #19
Old 11-02-2014, 07:26 PM
ROTTBOY's Avatar
Super Moderator
Join Date: Mar 2014
Location: Hawaii: relocated to Western Canada Sept, 2015
Posts: 1,116
XM radio hooked

Before and in between today's football games, found to time to temporarily power-up the sat radio. Pre-fed the line the day before.

Except for a faulty audio cable (had to take apart the center console again - which serves me right for not testing first), it works great and sounds deadly, clear and firm. Have the sat radio's audio out (mini-jack) go into the Audison SP's Aux input thereby having its volume controlled by the Audison's DRC (Digital Remote Control). Very clean sounding indeed!!!

Name:  SatelliteradiohookeduptoAudisonAuxinputNov22014Worksperfectafterchangingfaultycable.jpg
Views: 3889
Size:  22.0 KB

Haven't decided on the best placement for the XM radio. Most probably will attach it to the cubby hole in front of the dual cupholders on the center console.

The ICE installs are now complete. System sounds great but will report once the professional EQ'ing is done. Let's see if they can get the Fit to sound better than my B&W home system.

  #20
Old 11-03-2014, 10:29 AM
Join Date: Aug 2014
Location: Connecticut
Posts: 1,616
There are some beautiful installs on this thread! Love them! Its too bad the stock speakers and head unit don't have the balls to push out some decent Hi-Fi sound. I looked at the door speakers yesterday and man they are weak. Sure built tough for the application but not meant for high power application. Even just changing out the speakers for more power handling ones will help.


The trouble when putting in custom systems I've found is matching the driver for the cubic space inside the door itself. The technical/engineer side of me would want to do the Thiel/Small calculations for the volume of air the driver displaces is most efficient at. Sometimes even the highest priced speaker will not yield a good sound. Often times a cheaper driver is the better choice. Not doing this calculation means less sound db's and more heat which leads to driver failure.

With all the pro audio gear I have, the quicker and easier method for me is to throw a few powered PA speakers in the back running off my pure sine power inverter, run some volume control to them and let'er rip!



Quick Reply: Radio removal on a 2015 fit



All times are GMT -4. The time now is 06:31 PM.
