They did not come powder coated, appears to be anodized. I didn't have time this past weekend to put everything on. Hopefully this week. I'll take some pictures before I put everything on. The price for the lines seemed like a lot, but once I had them in my hands they seemed worth it. The stainless is covered so they won't rub on anything and I would guess stay nicer/cleaner longer, the fronts have the correct pieces on them for attachment. I'll try to get some decent photos of the fronts before I put them on. And I bought some flat black caliper paint...

  #22
Old 04-12-2015, 12:16 AM
ragingti's Avatar
Member
5 Year Member
Join Date: May 2011
Location: Pittsburgh
Posts: 164
I have functioning rear disc, woo hoo! The Scarebird brackets are zinc coated according to their website. I'll post pics and a few issues I ran into when I get some time.

  #23
Old 04-12-2015, 08:55 AM
ragingti's Avatar
Member
5 Year Member
Join Date: May 2011
Location: Pittsburgh
Posts: 164
Got everything on and working yesterday.
Name:  IMG_0290_zpsny9eybxe.jpg
Views: 3467
Size:  221.9 KB
Name:  IMG_0301_zps49kpsicb.jpg
Views: 3321
Size:  212.0 KB
Name:  IMG_0300_zps59vqrgak.jpg
Views: 3358
Size:  205.6 KB
Name:  IMG_0297_zpsbn22paax.jpg
Views: 3272
Size:  201.5 KB
Name:  IMG_0307_zps4d48wjmg.jpg
Views: 3387
Size:  257.4 KB
Name:  IMG_0303_zpsnehwvt9f.jpg
Views: 3247
Size:  190.4 KB




The parking brake cables were the toughest part as apex said, the gas tank is just in the way. I ended up painting the calipers and the mounting brackets.


I did run into a few problems. I was test fitting things as I was going and discovered that the hub wouldn't sit flush inside the rotor. Not sure if the crappy Advance rotors I got weren't machined correctly or if the hub face on an Integra is slightly smaller than our Fits. I ended up putting the rotor on the lathe and machining the lip out. You can see in the pic the area I'm talking about at the tip of the screwdriver. The second pic shows a close up of the area I machined off.
Name:  IMG_0292_zpsuw6ylmu3.jpg
Views: 3251
Size:  258.0 KB
Name:  IMG_0293_zpszm3hkxmu.jpg
Views: 3255
Size:  343.3 KB


Next problem was the caliper carrier. I was bolting it up to the Scarebird brackets and it kind of felt funny as I was tightening the bolts. I pulled it back off and could see were it was hitting the bracket, both pieces had been painted so I could see were they had touched, preventing the carrier form sitting squarely on the bracket. I took a die grinder to the carrier, I didn't want to grind on the Scarebird piece. Here are pics of were I had to make a little extra room.
Name:  IMG_0299_zps9ihljpdr.jpg
Views: 3246
Size:  214.5 KB
Name:  IMG_0298_zpsmvsihcln.jpg
Views: 3332
Size:  196.7 KB


Other than that it went well. So far I only drove home with a trunk full of winter wheel and boxes so I didn't get a chance to see how it feels. I plan to go for a drive today and test everything out. A huge THANK YOU to apex for making this easy for the rest of us!!! And sorry for the crappy potato phone pics.


Last edited by ragingti; 04-12-2015 at 09:09 AM.
  #24
Old 04-12-2015, 09:58 AM
apexanimal's Avatar
Member
5 Year Member
Thread Starter
iTrader: (2)
Join Date: Jan 2010
Location: MI
Posts: 1,213
looks good!

i didn't have either of the issues you did with the rotor and caliper bracket... but glad you got it sorted!

  #25
Old 04-21-2015, 12:47 AM
ragingti's Avatar
Member
5 Year Member
Join Date: May 2011
Location: Pittsburgh
Posts: 164

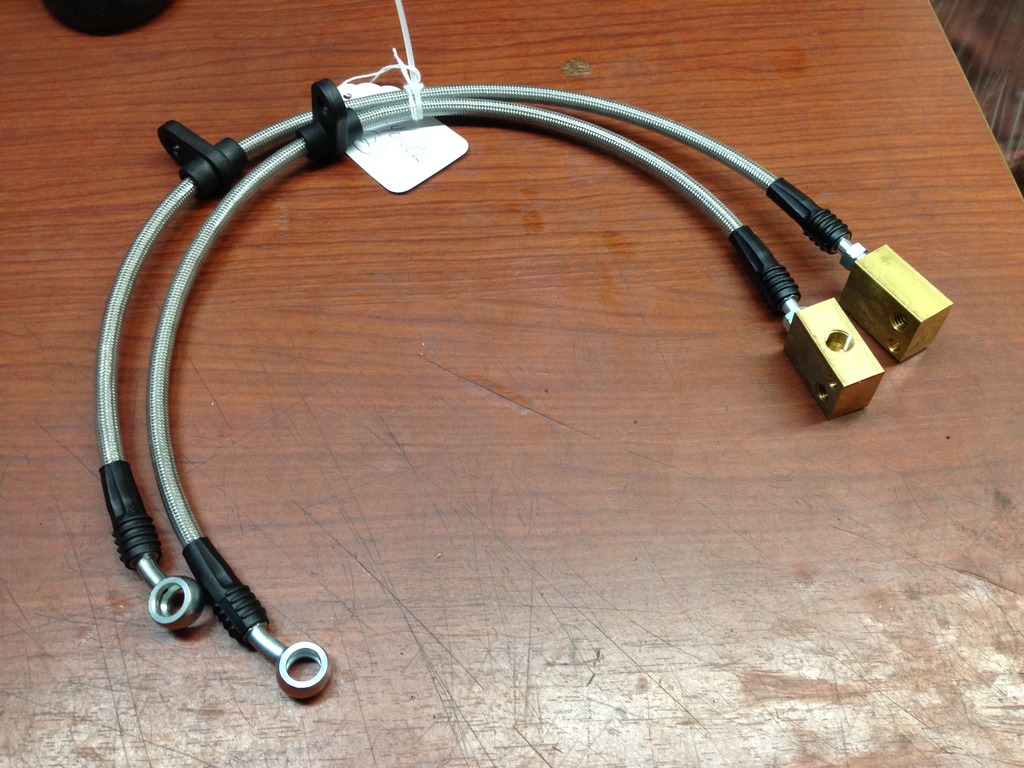

Here are the front brake lines Fastbrakes sent...
Name:  IMG_0308_zpsgd9jpb3q.jpg
Views: 3256
Size:  238.9 KB

  #26
Old 04-21-2015, 07:29 PM
apexanimal's Avatar
Member
5 Year Member
Thread Starter
iTrader: (2)
Join Date: Jan 2010
Location: MI
Posts: 1,213
fancy... i guess i hadn't looked... those connection blocks are interesting - i didn't know that's how the fit was connected

  #27
Old 04-21-2015, 08:01 PM
Hootie's Avatar
Member
5 Year Member
iTrader: (3)
Join Date: Mar 2008
Location: South of Heaven
Posts: 4,784
Yup! Those aren't too shabby... though I am curious with how they will move with the strut/caliper as you go from lock to lock. With my first set of Techna-Fit lines they actually would either stretch completely out and bind with a similar design OR rub against the inside of my wheel.

This was with my GD being about 1/2 to a full inch lower than stock... After contacting Techna-Fit, they sent me new lines and updated their product afterwards. ^.^ So be mind full of this please after install and check your clearances.

  #28
Old 05-03-2015, 03:30 PM
apexanimal's Avatar
Member
5 Year Member
Thread Starter
iTrader: (2)
Join Date: Jan 2010
Location: MI
Posts: 1,213
just emailed fastbrakes and a pair of front ss lines are 75 shipped

  #29
Old 05-03-2015, 09:34 PM
ragingti's Avatar
Member
5 Year Member
Join Date: May 2011
Location: Pittsburgh
Posts: 164
Originally Posted by Hootie View Post
Yup! Those aren't too shabby... though I am curious with how they will move with the strut/caliper as you go from lock to lock.
So far so good, I've had the front wheels off a few times and no signs of rubbing. I also checked the clearance with the wheels on turning from lock to lock and everything looks good. Thanks for the heads up on checking those.


Last edited by ragingti; 05-05-2015 at 07:03 PM.
  #30
Old 05-05-2015, 05:18 PM
New Member
5 Year Member
Join Date: Jun 2011
Location: Miami, FL
Posts: 16
Wilwood Scarebird question

Great thread. Thanks for all the information from everyone.

I just got my Scarebird brackets in. I was hoping to use the brackets to install Wilwood 1997 Integra rear brake kit 11". Does anyone think this will work? Will the parking brake cable from Wilwood for the 97 Integra work with the Fit? Will the Wilwood brake lines fit appropriately?

Scarebird bracket for GD Fit
Wilwood 1997 Integra rear brake kit 140-10206-D
Wilwood 1997 Integra rear line kit 220-10840
Wilwood 1997 Integra parking brake cable 330-10966

Does this sound possible as a bolt-on project?

Thanks for reading

  #31
Old 05-05-2015, 07:07 PM
apexanimal's Avatar
Member
5 Year Member
Thread Starter
iTrader: (2)
Join Date: Jan 2010
Location: MI
Posts: 1,213
no idea about the parking brake... best i can say is look at the pics of the parking brake cables i used, their ends, and length, and compare that to what you want to use... same for the brake lines...

i would THINK that if the wilwood was designed to be installed on a 97 integra, then it should work here...

  #32
Old 05-05-2015, 07:09 PM
ragingti's Avatar
Member
5 Year Member
Join Date: May 2011
Location: Pittsburgh
Posts: 164
Originally Posted by Jaime Gonzo View Post
Great thread. Thanks for all the information from everyone.

I just got my Scarebird brackets in. I was hoping to use the brackets to install Wilwood 1997 Integra rear brake kit 11". Does anyone think this will work? Will the parking brake cable from Wilwood for the 97 Integra work with the Fit? Will the Wilwood brake lines fit appropriately?

Scarebird bracket for GD Fit
Wilwood 1997 Integra rear brake kit 140-10206-D
Wilwood 1997 Integra rear line kit 220-10840
Wilwood 1997 Integra parking brake cable 330-10966

Does this sound possible as a bolt-on project?

Thanks for reading
If I had to guess the brake lines and parking brake cables won't work. There aren't pictures or lengths of the parking brake cables on Wilwood's site(or I couldn't find them). Apex may have more insight. The bracket on bracket part should work. That's going to be a LOT of rear brake. Is this just for show or performance?

  #33
Old 05-05-2015, 07:39 PM
New Member
5 Year Member
Join Date: Jun 2011
Location: Miami, FL
Posts: 16
Thanks for the replies

Wilwood parking brake cable seems to be 68", the shortest as far as I can tell that has been used on Fitfreak. Did you guys have any length of cable "leftover"? It seems to be 2 inches shorter than Apex, I think. I have been reading too much, I will go back and try to make a spreadsheet so I can better decide. I am going with the Wilwood rear because the other rears I have seen for under $1500 have the, I think its called floating, caliper and they don't look as nice. I think I can get the wilwood rear for $830, not including lines or parking cable. So basically, they are the cheapest, nicest looking ones I could find. Unless I missed something?

Do you guys still have the original parking cable? Could you measure it?

Thanks

  #34
Old 05-06-2015, 09:20 PM
apexanimal's Avatar
Member
5 Year Member
Thread Starter
iTrader: (2)
Join Date: Jan 2010
Location: MI
Posts: 1,213
there is leftover length on the legend cables, 2" shorter SHOULD be ok... i'm pretty sure you'll be fine, the only reason i say "should" is so you can't blame me if it doesnt work

  #35
Old 06-08-2015, 07:47 PM
Member
5 Year Member
Join Date: Apr 2010
Location: Quebec
Posts: 56
Wow, that's a cool mod. I think the Fit have really good braking as it is, but that's a good mod and not to expensive. I guess if your Cars is modified with engine swap or turbo it's important to have more braking power. maybe a future mod I could do.

One question, does the ABS and all the brake force balancing stuff still work? Because I do like the FIT ABS, not to sensible, and I like it in winter.


Last edited by Sylak; 06-19-2016 at 01:02 PM.
  #36
Old 06-08-2015, 09:08 PM
apexanimal's Avatar
Member
5 Year Member
Thread Starter
iTrader: (2)
Join Date: Jan 2010
Location: MI
Posts: 1,213
abs is unaffected

  #37
Old 06-09-2015, 09:52 AM
Member
5 Year Member
Join Date: Apr 2010
Location: Quebec
Posts: 56
This mod is a lot cooler then. Also It does look awesome :-). After that you need more power :-)

  #38
Old 08-20-2015, 11:29 AM
New Member
5 Year Member
Join Date: Mar 2014
Location: Charlottesville, VA
Posts: 11
Does anyone know about the effects of this in regards to the OEM master cylinder?

How is the pedals feel? Mushy, stiffer?


Last edited by Bumnah; 08-20-2015 at 11:35 AM.
  #39
Old 08-21-2015, 09:22 PM
apexanimal's Avatar
Member
5 Year Member
Thread Starter
iTrader: (2)
Join Date: Jan 2010
Location: MI
Posts: 1,213
i mentioned pedal feel earlier in the thread and r&d thread...

what do you mean about the master cylinder?

  #40
Old 09-07-2015, 01:38 PM
space egg's Avatar
Member
Join Date: Mar 2015
Location: West Midlands UK
Posts: 249
is the GE similar? any different parts?
