CAI custom build :D
Member
Joined: Nov 2010
Posts: 92
From: Santa Barbara, CA

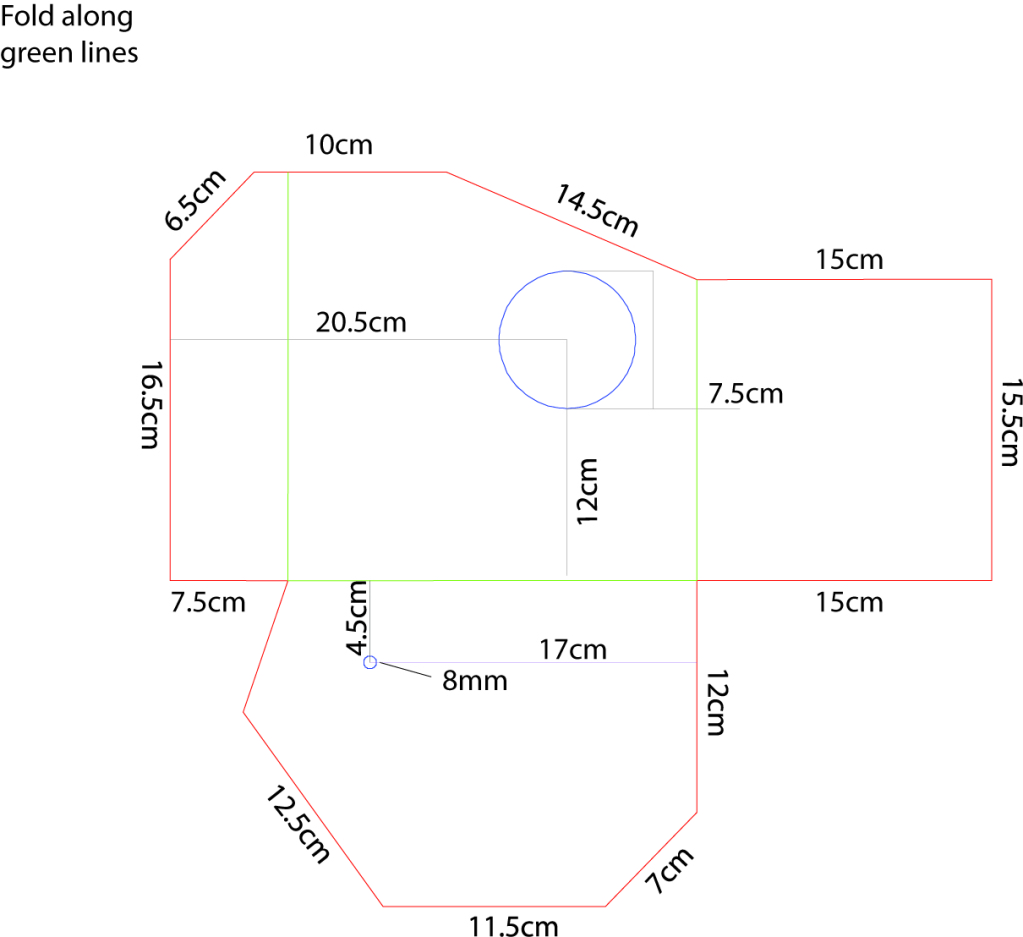

I drew up a 'real life scale' schematic for this heat shield design as provided by MADMAN-_-zZ here:
AutoCAD DWG file and 4 part PDF (So you can print the 4 pages 11"x17", tape together and use as cutting template in case you dont have a large format drafting plotter handy):
UPDATED LINK: https://ryangielow.sharefile.com/?cm...df7d19742d4088
AutoCAD DWG file and 4 part PDF (So you can print the 4 pages 11"x17", tape together and use as cutting template in case you dont have a large format drafting plotter handy):
UPDATED LINK: https://ryangielow.sharefile.com/?cm...df7d19742d4088
Last edited by 12toothassassin; Nov 20, 2012 at 01:31 PM.
Thread Starter
|
Member
Joined: Mar 2010
Posts: 82
From: Australia
I drew up a 'real life scale' schematic for this heat shield design as provided by MADMAN-_-zZ here:
AutoCAD DWG file
http://www.compsolserv.com/fit/cai/fit_cai.dwg
4 part PDF (So you can print the 4 pages, tape together and use as cutting template in case you dont have a large format drafting plotter handy)
http://www.compsolserv.com/fit/cai/fit_cai_1.pdf
http://www.compsolserv.com/fit/cai/fit_cai_2.pdf
http://www.compsolserv.com/fit/cai/fit_cai_3.pdf
http://www.compsolserv.com/fit/cai/fit_cai_4.pdf
AutoCAD DWG file
http://www.compsolserv.com/fit/cai/fit_cai.dwg
4 part PDF (So you can print the 4 pages, tape together and use as cutting template in case you dont have a large format drafting plotter handy)
http://www.compsolserv.com/fit/cai/fit_cai_1.pdf
http://www.compsolserv.com/fit/cai/fit_cai_2.pdf
http://www.compsolserv.com/fit/cai/fit_cai_3.pdf
http://www.compsolserv.com/fit/cai/fit_cai_4.pdf
Nice nice, did you make one? or only schematics? would like to see it!
