GE8 Lowered Thread - Post your pics!!!

Reply




  #1
Old 04-30-2009, 10:33 AM
panda1314's Avatar
Member
5 Year Member
Thread Starter
Join Date: Nov 2008
Location: Toronto, ON
Posts: 214
GE8 Lowered Thread - Post your pics!!!

So I made an exhaust thread earlier with video clipsand it became a sticky, I'm gonna try to make a thread for springs / suspension / lowered pics. I'll try to update and gather as much info as I can. I hope the owners of the original vehicles wouldn't mind me using their pics.

Eibach Pro-Kit Ride Height Drop: F-1.2 in / R-1.4 in
T1R S-Coils Ride Height Drop: F-1.3 in / R-1.5 in Spring Rates: F-2.9kg/mm / R-2.5kg/mm
Tanabe NF210 Ride Height Drop F-1.0 in / R-1.5 in Spring Rates: F-1.7kg/mm / R-2.0kg/mm
Tanabe DF210 Ride Height Drop F-1.3 in / R-1.8 in Spring Rates: F-1.7kg/mm / R-2.0kg/mm
Tein S Tech Ride Height Drop F-1.4 in / R-1.6 in Spring Rates F- 2.3kg/mm/ R-2.4kg/mm
Tein High Tech Ride Height Drop F-1.0 in / R-1.2 in Spring Rates F- 2.1kg/mm/ R-2.3kg/mm
RSR Suspension Coil Drop F-0.8 in / R-1.0 (???) in Spring Rates F- 2.26kg/mm/R-2.3kg/mm
RSR Ti2000 Drop F-2.0 in / R-1.8 in Spring Rates F- 2.26kg/mm/R-2.3kg/mm

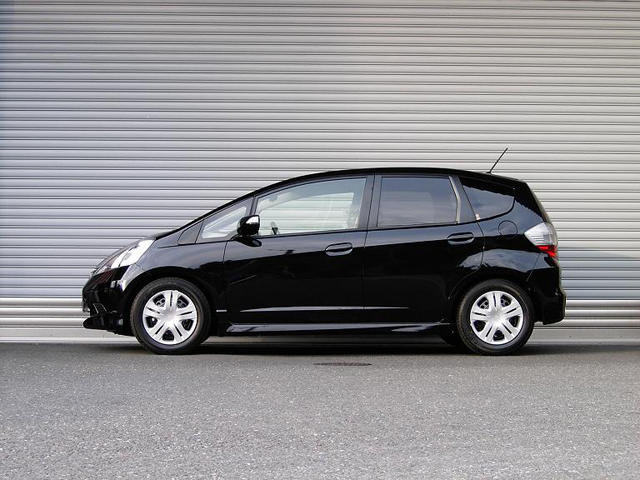

stock
Name:  2008_1227Fit0008.jpg
Views: 1781
Size:  45.8 KB

Eibach Pro-Kit Ride Height Drop: F-1.2 in / R-1.4 in
Name:  8143a6a4.jpg
Views: 2050
Size:  62.2 KB
some interesting videos on eibach products:
YouTube - Stock vs. Eibach (HD)
YouTube - Eibach Springs - Slalom Comparison Test

T1R S-Coils Ride Height Drop: F-1.3 in / R-1.5 in Spring Rates: F-2.9kg/mm / R-2.5kg/mm



Tanabe NF210 Ride Height Drop F-1.0 in / R-1.5 in Spring Rates: F-1.7kg/mm / R-2.0kg/mm




Tanabe DF210 Ride Height Drop F-1.3 in / R-1.8 in Spring Rates: F-1.7kg/mm / R-2.0kg/mm




Tein S Tech Ride Height Drop F-1.4 in / R-1.6 in Spring Rates F- 2.3kg/mm/ R-2.4kg/mm



RSR Suspension Coil Drop F-0.8 in / R-1.0 in Spring Rates F- 2.26kg/mm/R-2.3kg/mm



RSR Ti2000 Drop F-2.0 in / R-1.8 in Spring Rates F- 2.26kg/mm/R-2.3kg/mm



Feel free to post your pictures below, I will update periodically when more products are released.


Last edited by panda1314; 05-08-2009 at 10:14 PM. Reason: RSR edit
Reply With Quote
  #2
Old 04-30-2009, 11:09 AM
Tork's Avatar
Member
5 Year Member
iTrader: (2)
Join Date: Mar 2007
Location: Winthrop Harbor Illinois/ Presque Isle Wisconsin
Posts: 1,251
Lowered with RS*R Ti 2000 Down springs
** Note car normally looks lower than this but when the pic was taken, rear seats were out along with spare tire + I got a lightweight battery and bracket + lightweight Unorthodox Racing pulley set.


Reply With Quote
  #3
Old 04-30-2009, 11:17 AM
niko3257's Avatar
FitFreak GE8 DIY Guy
5 Year Member
iTrader: (3)
Join Date: Aug 2008
Location: Palm Coast FLA
Posts: 1,927

Last edited by niko3257; 04-30-2009 at 11:22 AM.
Reply With Quote
  #4
Old 04-30-2009, 11:35 AM
Member
Join Date: Feb 2009
Location: Hotlanta
Posts: 119
I had really intended on getting DF210s initially. However, the more I compare them to the drops some of the other springs have to offer, the more I dislike them. Looks like the nose of the car is pointing up - not a very aggressive look. What's worse is if you put actual weight back there.

Reply With Quote
  #5
Old 04-30-2009, 11:54 AM
kenchan's Avatar
Official Fit Blogger of FitFreak
5 Year Member
iTrader: (4)
Join Date: Dec 2007
Location: OG Club
Posts: 19,689
looks good guys. yah, tanabe has a werd taste of making most of their springs so that the rear sits low. not ideal at all on a fwd car.

Reply With Quote
  #6
Old 04-30-2009, 12:17 PM
luv4jdm's Avatar
Member
Join Date: Jan 2009
Location: IL
Posts: 186
Judging from the pics it does look like the tanabe's are pointing up. Hmmm, nvm about getting tanabe's I might just get the RSR or the Eibach...

Reply With Quote
  #7
Old 04-30-2009, 01:14 PM
Holy_Fit_Batman!'s Avatar
Member
iTrader: (1)
Join Date: Apr 2009
Location: Austin, TX
Posts: 102
Damn, those RSRs look niiiiice. But its either Eibach or the T1Rs for me.

Reply With Quote
  #8
Old 04-30-2009, 01:22 PM
Spiritborn's Avatar
Member
5 Year Member
iTrader: (1)
Join Date: Dec 2008
Location: Bay Area, California
Posts: 116
Tanabe NF210 Ride Height Drop F-1.0 in / R-1.5 in Spring Rates: F-1.7kg/mm / R-2.0kg/mm




Tanabe DF210 Ride Height Drop F-1.3 in / R-1.8 in Spring Rates: F-1.7kg/mm / R-2.0kg/mm





I think you have the pictures reversed. The DF210's should sit lower than the NF210's.

Reply With Quote
  #9
Old 04-30-2009, 01:24 PM
1FiTpINOY's Avatar
Member
iTrader: (4)
Join Date: May 2008
Location: Miramar, FL
Posts: 693
Originally Posted by luv4jdm View Post
Judging from the pics it does look like the tanabe's are pointing up. Hmmm, nvm about getting tanabe's I might just get the RSR or the Eibach...
I don't see how you guys are saying the front is higher. I have them on and my front's are lower than the rear. The reason why they did this is because they took the factor of daily routines in putting stuff in the trunk, so the rear would have to be a bit higher in order to compensate for that


I also think it's best to make a guideline for not only specs but posting pictures as well. A full side shot, front wheel up close, rear up close, and then a full shot of the car.
And also when you guy's quote, :: PLEASE REMOVE THE PICTURE TAGS :: Threads get annoying when a picture is repeated several times on one page >_<

kthnx


Last edited by 1FiTpINOY; 04-30-2009 at 01:27 PM.
Reply With Quote
  #10
Old 04-30-2009, 02:13 PM
qbmurderer13's Avatar
Touched by his noodly appendage
iTrader: (6)
Join Date: Oct 2008
Location: Orlando, FL
Posts: 2,373
Any chance to whore my car out

Tanabe DF210's here

Name:  vinylroof013.jpg
Views: 1620
Size:  119.5 KB
Name:  vinylroof012.jpg
Views: 1606
Size:  124.8 KB
Name:  vinylroof008.jpg
Views: 1732
Size:  121.5 KB

Not the best pictures to show the drop but its the most recent. Ill get 'guideline' pictures up soon


Last edited by qbmurderer13; 04-30-2009 at 02:45 PM.
Reply With Quote
  #11
Old 04-30-2009, 02:39 PM
Member
iTrader: (2)
Join Date: Oct 2008
Location: Signal Mountain, TN
Posts: 411
I was considering NF's but looking at all the images I'm going to say I'm leaning towards the pro kit. I just wish I could find the Pro Kit plus with the shocks and stabilizer bar for our vehicles!

Reply With Quote
  #12
Old 04-30-2009, 04:25 PM
projekz's Avatar
Member
Join Date: Oct 2008
Location: Calgary,Alberta,Canada
Posts: 465
I'll post pics of my T1R tonight or tomorrow.

Reply With Quote
  #13
Old 04-30-2009, 04:54 PM
Scaldy's Avatar
Member
5 Year Member
Join Date: Dec 2008
Location: Far far away
Posts: 194
Originally Posted by projekz View Post
I'll post pics of my T1R tonight or tomorrow.
I was just at AJR looking at their GE dropped on the T1R's and the drop looked perfect. I asked the GE's owner/mechanic and he recommended the T1R's over the Eibach's, RS*R and the Tannabes. AJR has installed the RSR's and Tannabes for comparison. The price and the drop seem perfect... can anyone comment on the T1R's ride quality?

Reply With Quote
  #14
Old 04-30-2009, 05:34 PM
Benggolf's Avatar
Member
5 Year Member
iTrader: (1)
Join Date: Sep 2006
Location: Richmond, B.C., Canada
Posts: 1,119
Jason was kind enough to take me around the block some weeks ago, that was before we took delivery of our GE8. The ride is noticeably stiffer than OEM, now that I have been driving our new FiT for a bit.

Not harsh, but you will notice the difference. Price-wise AJ is offering a good deal at $225 + $85 for installation + taxes. Hard to beat if you are looking at buying at a reasonable price.

Scaldy, best you ask for a demo and see for yourself.

Reply With Quote
  #15
Old 04-30-2009, 05:39 PM
kevvur's Avatar
Member
5 Year Member
Join Date: Sep 2008
Location: Vancouver
Posts: 219
$225??

Website says $199CAD

Reply With Quote
  #16
Old 04-30-2009, 06:43 PM
projekz's Avatar
Member
Join Date: Oct 2008
Location: Calgary,Alberta,Canada
Posts: 465
Here it is---T1R S coils
Name:  DSC00284.jpg
Views: 1594
Size:  96.3 KB

Name:  DSC00286.jpg
Views: 1588
Size:  96.9 KB

Reply With Quote
  #17
Old 04-30-2009, 07:49 PM
runbikerun's Avatar
Member
5 Year Member
Join Date: Dec 2007
Location: Detroit City
Posts: 451
Originally Posted by Scaldy View Post
I was just at AJR looking at their GE dropped on the T1R's and the drop looked perfect. I asked the GE's owner/mechanic and he recommended the T1R's over the Eibach's, RS*R and the Tannabes. AJR has installed the RSR's and Tannabes for comparison. The price and the drop seem perfect... can anyone comment on the T1R's ride quality?
Did he say why he recommended the T1R's over the others?

Reply With Quote
  #18
Old 04-30-2009, 08:23 PM
Scaldy's Avatar
Member
5 Year Member
Join Date: Dec 2008
Location: Far far away
Posts: 194
Originally Posted by runbikerun View Post
Did he say why he recommended the T1R's over the others?
He thought the drop on the Tannabe's was not low enough in the front (he felt the rears sat lower than the front). I believe he liked the comfort of the T1R's over the RS*R's and He felt the Eibach's were too pricey and didn't lower the car enough.

Reply With Quote
  #19
Old 04-30-2009, 08:59 PM
qbmurderer13's Avatar
Touched by his noodly appendage
iTrader: (6)
Join Date: Oct 2008
Location: Orlando, FL
Posts: 2,373
Wow the T1R drop is perfect. Wouldve gotten it over my DF's. Oh well ill just save up for coilovers.

Reply With Quote
  #20
Old 04-30-2009, 09:10 PM
Choro-Q_Fit's Avatar
Member
5 Year Member
iTrader: (2)
Join Date: Nov 2008
Location: Tri-State
Posts: 375
Is T1R working on a Damper kit to go with the springs?

Reply With Quote
