Starting a Lowering Springs Pic Thread.

Alright I want to start a pic thread of different springs on different cars pic thread just like I did with the %tint pic thread.

So if people could do me the favor or posting up what springs or coilovers they have how much of a drop it is and a pic of their car. if you could also include what size wheel/tire combo you are rocking with the offset. for example 205/40/17 w/ 17x7 +42mm.

Once we get enough people I will start a new thread with a first post that is really organized with pic of peoples car under the right category of springs and coilovers.

Thanks a bunch I appreciate it and I am sure many forum members will appreciate it once everything is said and done.

Will spread the rep to everyone that posts up their stuff.

Last edited by Fitcapo; 07-27-2008 at 05:07 PM.

07-27-2008, 05:11 PM

Fitcapo

Member

Thread Starter

iTrader: (5)

Join Date: Mar 2008

Location: Pleasant Prairie, Wisconsin

Posts: 2,257

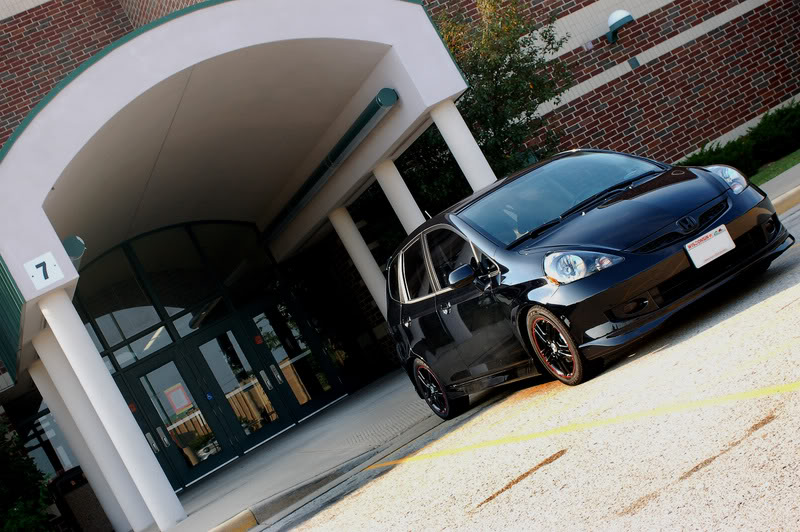

Name: Myfit23.jpg
Views: 1070
Size: 114.7 KB

I think stocks are 15x5.5" +55mm /w 195/55/15 tire lowered on Eibach Prokit Springs 1.6 f and 1.3 r.

07-27-2008, 06:29 PM

moegenki

Member

Join Date: Apr 2008

Location: Secret Underground VIP Crepe Shop

Posts: 87

Skunk2 lowering springs/OEM Sport wheels:

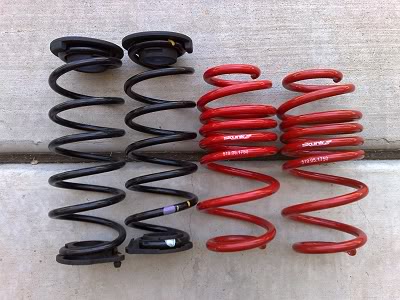

Name: rs.jpg
Views: 1083
Size: 35.3 KB

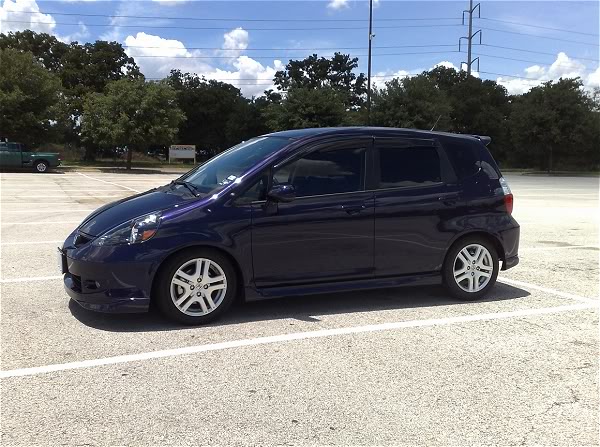

Name: profile2.jpg
Views: 1376
Size: 84.8 KB

Drop: 1.5” front and 1” rear
Rate: Front 175 lbs./in. - 3.1kg/mm
Rear 350 lbs./in. - 6.2kg/mm

Last edited by moegenki; 07-27-2008 at 06:32 PM.

07-27-2008, 08:34 PM

Fitcapo

Member

Thread Starter

iTrader: (5)

Join Date: Mar 2008

Location: Pleasant Prairie, Wisconsin

Posts: 2,257

Thank you

rep for you

07-27-2008, 09:31 PM

osborne

Member

iTrader: (1)

Join Date: Feb 2007

Location: Seminole, Florida, USA

Posts: 1,164

This is from the Honda Jazz / Fit Suspension Thread. It hasn't been updated in a long while.

Quote:

Originally Posted by scsi

If you are able to provide or correct any information on springs, please do so in this thread and I'll try to keep this updated. Also, if you feel other information should be added, please suggest.

If you have side-view photos of your car, preferrably on stock wheels and tires, please post them here and I will add them as well. If you have aftermarket wheel or tire sizes, please post those as well. Again, stock wheels and tires are preferred for comparison.
__________________________________________________

Key Information
Advertised Drop: Front/Rear in. (Front/Rear mm)
Advertised Spring Rate: Front/Rear lbs./in. (Front/Rear kgmm)
Linear or Progressive
__________________________________________________

OEM
Spring Rates?
__________________________________________________

Eibach Pro-Kit
Advertised Drop: 1.6/1.3 (40.6/33.0)
__________________________________________________

Eibach Sportline
Advertised Drop: 2.0/1.8 (50.8/45.7)
__________________________________________________

H&R Sport
Advertised Drop: 1.6/1.4 (40.6/35.6)
__________________________________________________

Progress
Advertised Drop: 1.5/1.3 (38.1/33.0)

(CarDemon)

__________________________________________________

Skunk2
Advertised Drop: 1.5/1.0 (38.1/25.4)
Advertised Spring Rates: 175/350
__________________________________________________

Spoon
Advertised Drop: 1.5/1.0 (25.4/25.4)
Advertised Spring Rates: 195/291

(macks75)

__________________________________________________

Sprint
__________________________________________________

Swift
(Jimmy101)

__________________________________________________

T1R S-Coil V2
Advertised Drop: 1.6/1.4 (40.6/35.6)
Advertised Spring Rates: 179/342

(aj-racing.com)

__________________________________________________

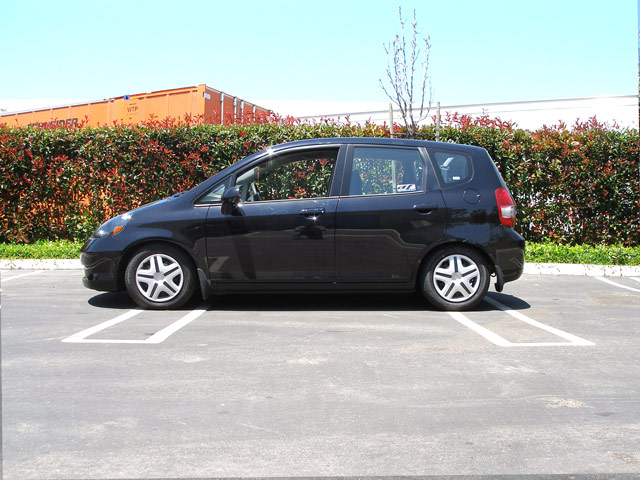

Tanabe DF210
Advertised Drop: 1.8/1.3 (45.7/33.0)
Advertised Spring Rates: 174/274 (3.1/4.9)

()

(jits14)

__________________________________________________

Tanabe GF210
Advertised Drop: 1.5/0.9 (38.1/22.9)
Advertised Spring Rates: 190/279 (3.4/5.0)

(bulletproofautomotive.com)

(4dr4life!)

__________________________________________________

Tein H.Tech
__________________________________________________

Tein S.Tech
Advertised Drop: 1.8/1.2 (46/31)
Advertised Spring Rates: 163/336 (2.9/6.0)
__________________________________________________

Vogtland
Advertised Drop: 1.6/1.0 (40.6/25.4)

(RacerDre)

__________________________________________________

Zeal X-Coil
Advertised Drop: 1.0/1.2 (25/30)
__________________________________________________

This is the only picture I have of my Fit on Tein S.Techs.

Last edited by osborne; 07-27-2008 at 09:37 PM.

07-27-2008, 09:47 PM

Fitcapo

Member

Thread Starter

iTrader: (5)

Join Date: Mar 2008

Location: Pleasant Prairie, Wisconsin

Posts: 2,257

Thanks osborne huge help

07-28-2008, 12:45 PM

wait4thefit

Member

iTrader: (2)

Join Date: Jun 2008

Location: orlando

Posts: 735

i would like to see a fit on some t1r springs pleaseeee

do you think i would need a camber kit? i am getting these springs friday

07-28-2008, 03:16 PM

Fitcapo

Member

Thread Starter

iTrader: (5)

Join Date: Mar 2008

Location: Pleasant Prairie, Wisconsin

Posts: 2,257

Its up to people posting up their cars that is what I am waiting for so I can make a more organized thing.

07-28-2008, 03:26 PM

Mr08FiT

Member

iTrader: (3)

Join Date: Aug 2007

Location: N. Brook, Chi

Posts: 424

Taken with Razor Phone.....

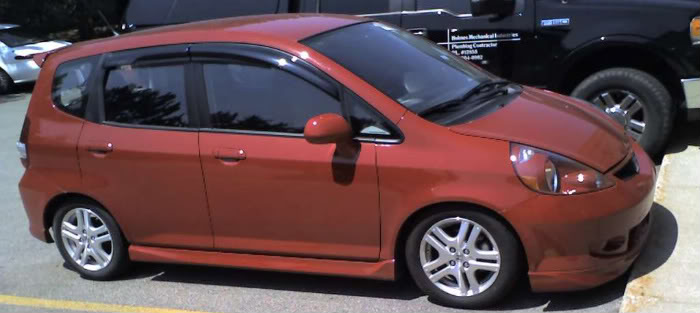

Name: 07-28-08_1410-1.jpg
Views: 1090
Size: 40.4 KB

Lowered on Tein S-Techs. Stock wheels. 1.8"-front 1.2"-rear.

#10

07-28-2008, 03:36 PM

BlueCell

Member

iTrader: (4)

Join Date: May 2007

Location: Yeehaw!

Posts: 2,847

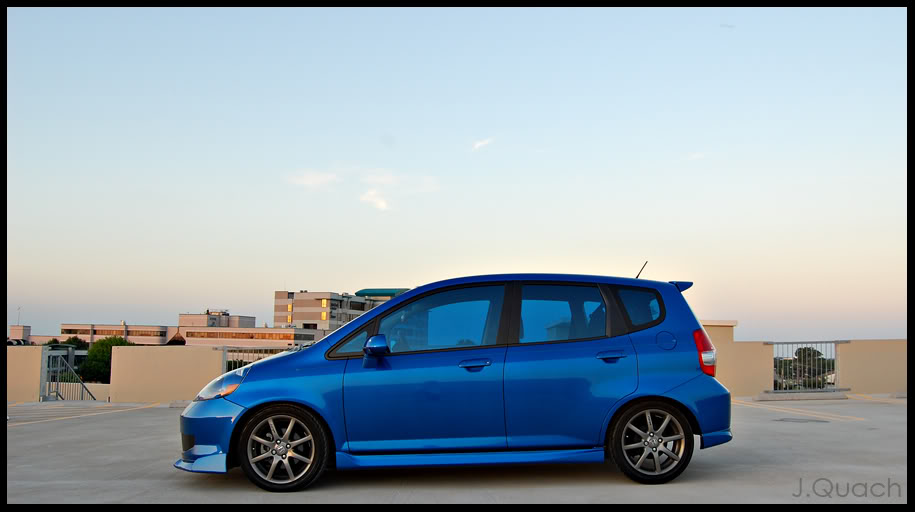

Name: 2576661971_452f00e8a6_o.jpg
Views: 1747
Size: 52.2 KB

Tanabe Gf210's 1.5 front and .9 rear. Front is lower than normal because of the Turbo.
HFP rims 205/45/16 at +55 offset.

#11

07-28-2008, 08:57 PM

eldaino

Member

iTrader: (1)

Join Date: May 2007

Location: North Carolina

Posts: 2,705

blue do you rub? probably not with that nice stock offset huh?

#12

07-28-2008, 09:11 PM

BlueCell

Member

iTrader: (4)

Join Date: May 2007

Location: Yeehaw!

Posts: 2,847

Quote:

Originally Posted by eldaino

blue do you rub? probably not with that nice stock offset huh?

I never ever rubbed. I bought those rims with the car(incredibly large mark up) and turn hard daily. I fill up my car with 4 other people and trunk loaded with 8 cases of drinks for the store and still never rubbed.

#13

09-18-2012, 11:19 AM

sloganmartin

Member

Join Date: Mar 2012

Location: Arlington, Tx

Posts: 116

Quote:

Originally Posted by osborne

This is from the Honda Jazz / Fit Suspension Thread. It hasn't been updated in a long while.

This is the only picture I have of my Fit on Tein S.Techs.

Just curious, are you running the 16'' rota spectrum or svn? What offset and tire size? I just installed tein s techs, love the way these match up with the spring drop

Thanks buddy

#14

09-18-2012, 01:12 PM

Speedlimitz

Member

iTrader: (5)

Join Date: Sep 2011

Location: Arizona

Posts: 720

Might not get an answer, last post was from 08

#15

09-21-2012, 11:56 PM

osborne

Member

iTrader: (1)

Join Date: Feb 2007

Location: Seminole, Florida, USA

Posts: 1,164

Quote:

Originally Posted by sloganmartin

Just curious, are you running the 16'' rota spectrum or svn? What offset and tire size? I just installed tein s techs, love the way these match up with the spring drop

Thanks buddy

Shows what the guy just above this knows! lol

They are KONIG Runaways in Shadow Black and are 17x7 +40 wrapped in Falken Azenis 205/40R17. It's a shame that you don't live close. I still have them and want to sell.

#16

09-22-2012, 12:04 AM

mike410b

Member

iTrader: (12)

Join Date: Feb 2010

Location: .

Posts: 7,544

Osborne! Father of the original post whore thread?! I don't even remember you posting when I first joined up here many moon ago.

#17

09-22-2012, 03:26 AM

sloganmartin

Member

Join Date: Mar 2012

Location: Arlington, Tx

Posts: 116

17s??? Wow, I mean they looked a little bigger, but I wasn't thinking 17 big hah...you wouldn't happen to have any straight side shots at that stage would you?

Me deciding on 16s was hard enough but I want a better stance with these s techs, considering the rear is much higher...now you got me thinkin...lol you have any wheel/tire spec reccomendations for these springs?

Thanks for the reply brotha! Bring the thread back!! xD

#18

09-22-2012, 07:10 PM

osborne

Member

iTrader: (1)

Join Date: Feb 2007

Location: Seminole, Florida, USA

Posts: 1,164

Quote:

Originally Posted by mike410b

Osborne! Father of the original post whore thread?! I don't even remember you posting when I first joined up here many moon ago.

lol In the 0s and 1s. I have been gone quite a while. I think my last posts were from three years ago and that was when I was trying to sell off my '07-'08 Fit bits. I really stopped coming on here after I sold my '09 Fit. Very sad days my friend. I get an email from time to time when certain threads are replied to and this happened to be one of them. I love to help when I can.

Quote:

Originally Posted by sloganmartin

I will have to look through some photos from a meet up to see what was taken, but I do not have anything on my computer any more. As for the wheel/tire spec, IMHO my setup was the best look out there as far as size and fit go. 17s fill out the wheel well so nicely and the 205s give you that little bit of width to make it look like you aren't riding on life savers. Also, that is the biggest and widest you can go without having to make any modifications, i.e. rolling fenders.
