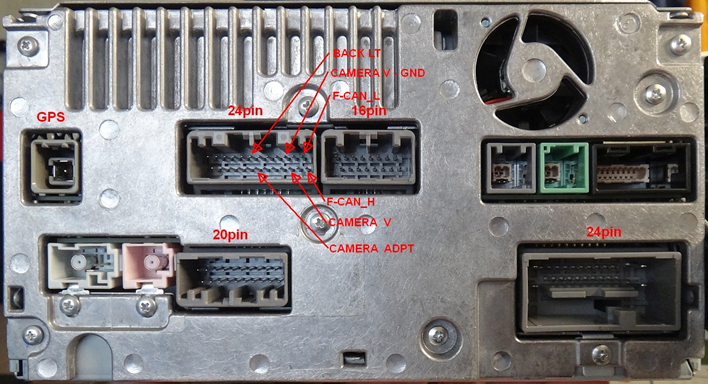

I have a Honda Jazz 2018 with the exact head unit in the picture below (picture from this post https://www.fitfreak.net/forums/3rd-...t-gk5-car.html)

I'm going to connect a OEM head unit and I need the full pinout of the original head unit in order to match everything up.

Does anyone have the full pinout for this model or know where I can find it?



I found some info about the 16-pin connector, it is for the microphone according to:

https://xdaforums.com/t/recommendati...#post-88984153

https://www.fitfreak.net/forums/3rd-...ket-radio.html



Top right green and gray square connectors are USB connectors. The gray one goes to the front USB connector, the green one to the compartment at the handbrake.

Top right rectangular connector next to them goes to the HDMI connector in the front. This is called a "HDMI type E connector".

The GPS connector is called a "HRS" connector and for a android head unit I needed a converter from "SMA Male to HRS GT5".
