DIY Guide: Wiring lights along w/ the dome light.

Fit Interior & Exterior Illumination Threads discussing interior and exterior lighting modifications for the Fit/Jazz

DIY Guide: Wiring lights along w/ the dome light.

  #101
Old 02-03-2011, 04:56 AM
Black3sr's Avatar
Member
5 Year Member
iTrader: (3)
Join Date: Jul 2009
Location: Kitchener,Ont Canada
Posts: 4,134
Some US company.

Here are all my blue interiors

https://www.fitfreak.net/forums/fit-...iny-again.html


A bit brighter but waaaaaaay more cool.

  #102
Old 02-24-2011, 05:01 PM
DSC's Avatar
DSC
DSC is offline
Member
iTrader: (1)
Join Date: Jul 2010
Location: Honolulu
Posts: 107
Originally Posted by Black3sr View Post
I assume the very first fuse box pic is from a GD. Anyone point out the spots to wire a GE? I am just looking for the simple lights on when door open thing. Thanks.
Is it the same? I am trying to do the same... hook up LED's to work with the dome light.

  #103
Old 02-25-2011, 04:54 AM
Black3sr's Avatar
Member
5 Year Member
iTrader: (3)
Join Date: Jul 2009
Location: Kitchener,Ont Canada
Posts: 4,134
Originally Posted by DSC View Post
Is it the same? I am trying to do the same... hook up LED's to work with the dome light.

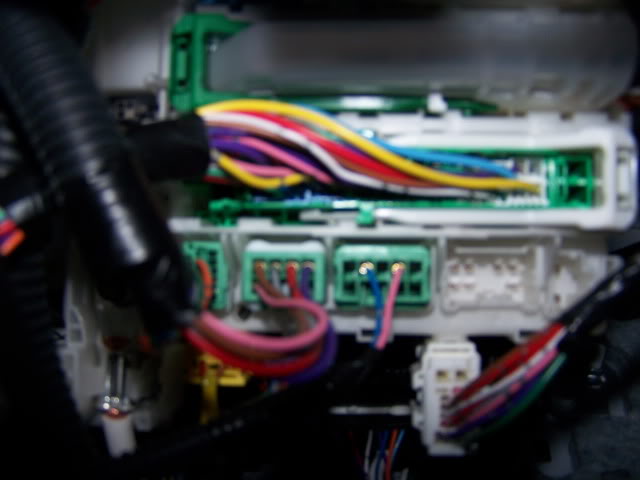

Here is the GE8 box

It is the plug with blue and pink wires. One wire to each.


Name:  003.jpg
Views: 197
Size:  35.6 KB


  #104
Old 02-25-2011, 01:14 PM
DSC's Avatar
DSC
DSC is offline
Member
iTrader: (1)
Join Date: Jul 2010
Location: Honolulu
Posts: 107
Originally Posted by Black3sr View Post
Here is the GE8 box

It is the plug with blue and pink wires. One wire to each.

Cool thanks man. Appreciate it.

  #105
Old 02-15-2013, 08:46 PM
New Member
Join Date: Feb 2013
Location: Daphne, AL
Posts: 3
thanks for the wiring on this -- its all i needed to get started on my additional lighting -

The plug in the lower left corner of the switch is an always on power. For JUST adding lights to work with the dome light, this is an easy spot to plug in. Power on bottom left, Ground on top right. However, it's the ground on the top right that is switched on and off, that's the important one.

  #106
Old 02-27-2013, 09:13 PM
connor55's Avatar
Member
5 Year Member
Join Date: Apr 2012
Location: edmonton, canada
Posts: 1,760
Anyone know the load limit for the GE dome light circuit?

I have door sill LEDs already attached in parallel and want to add some small strips in my door handles.

The strips are 4.5ma each, think it'll be a problem to install 4-8 of them? Keeping in mind what I already have installed.

  #107
Old 09-16-2013, 04:33 AM
New Member
Join Date: Jul 2013
Location: Turkey
Posts: 1
i did mine today. i used led strip. thanks for the manual.



  #108
Old 08-19-2017, 10:35 AM
tbFit's Avatar
Member
Join Date: Dec 2014
Location: San Diego - Carlsbad, CA
Posts: 645
Originally Posted by Black3sr View Post
Here is the GE8 box

It is the plug with blue and pink wires. One wire to each.


Attachment 38311

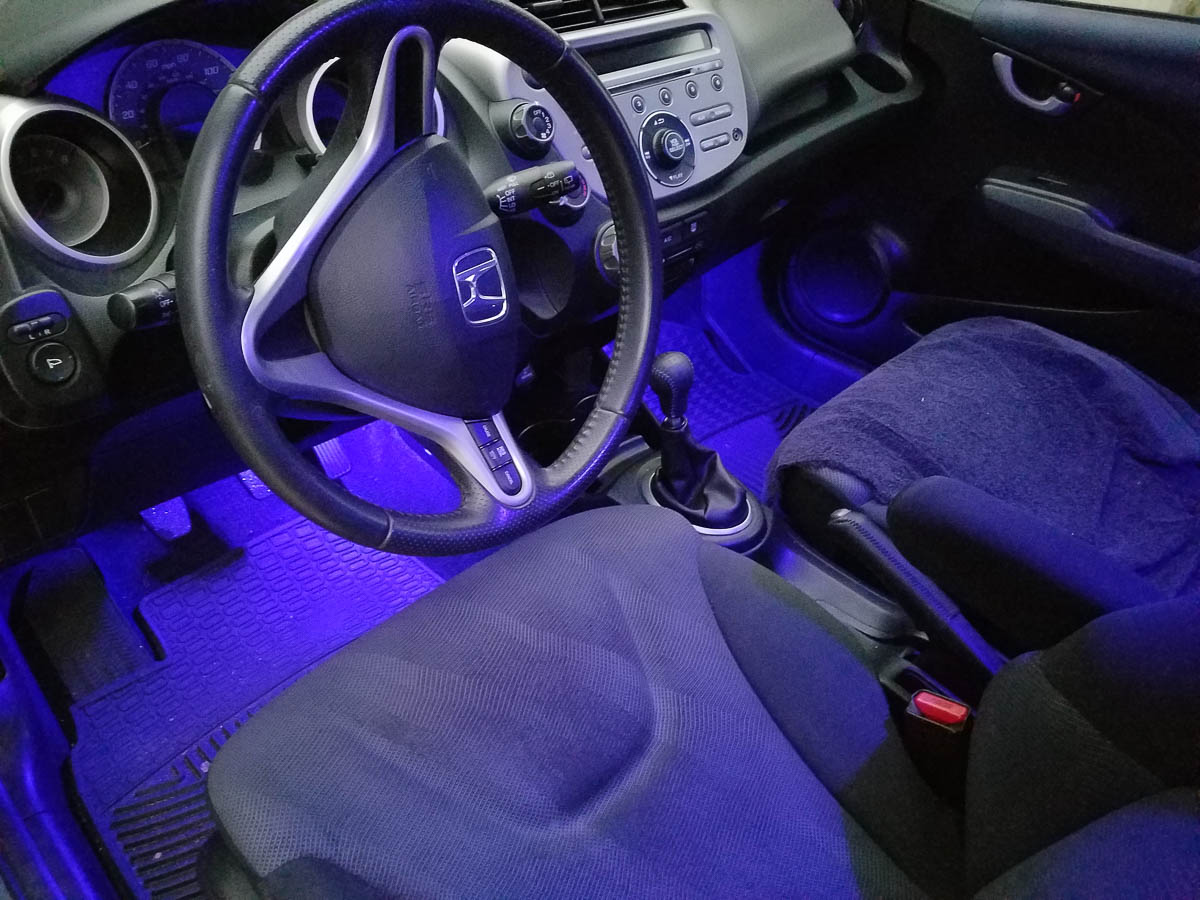

Did my 2009 Fit today. BTW, the pink wire at the connector panel is the positive lead.

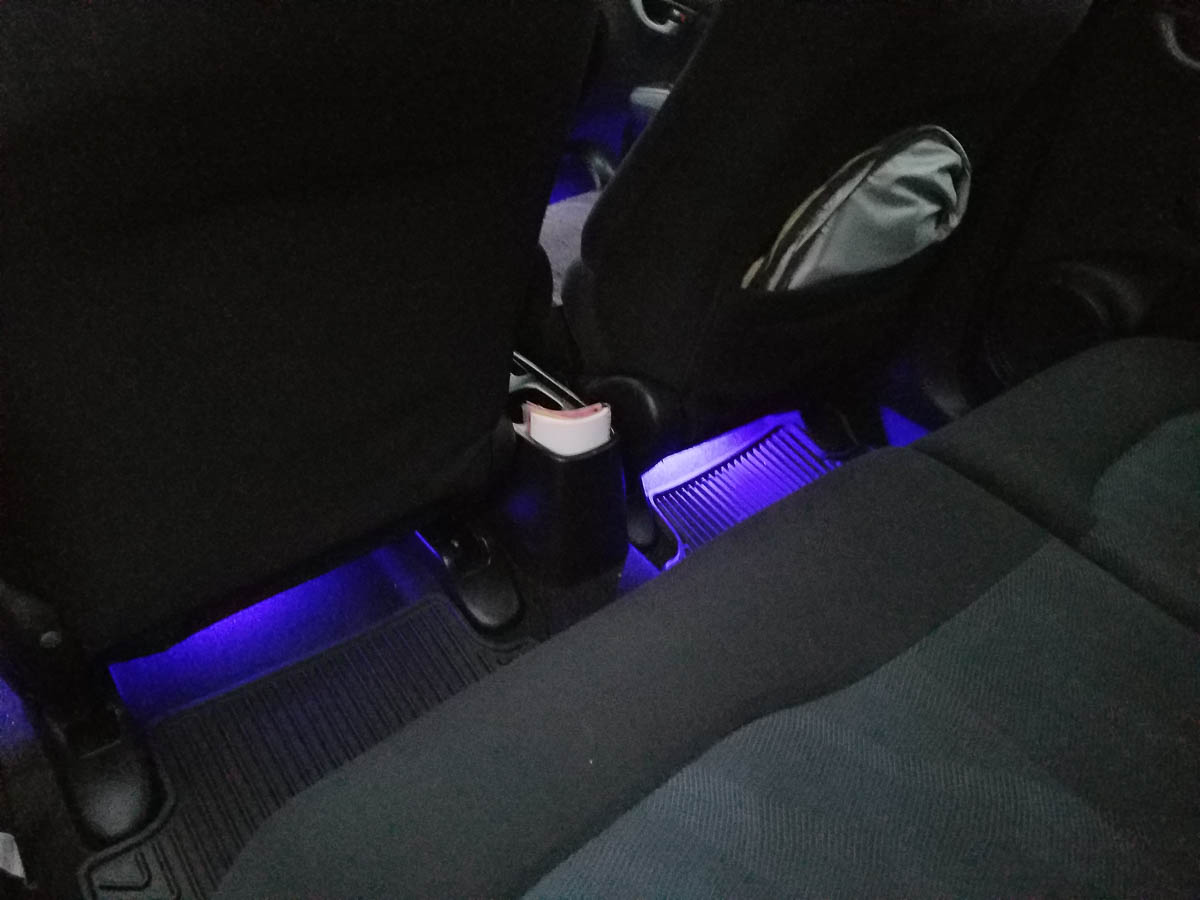

Pics:

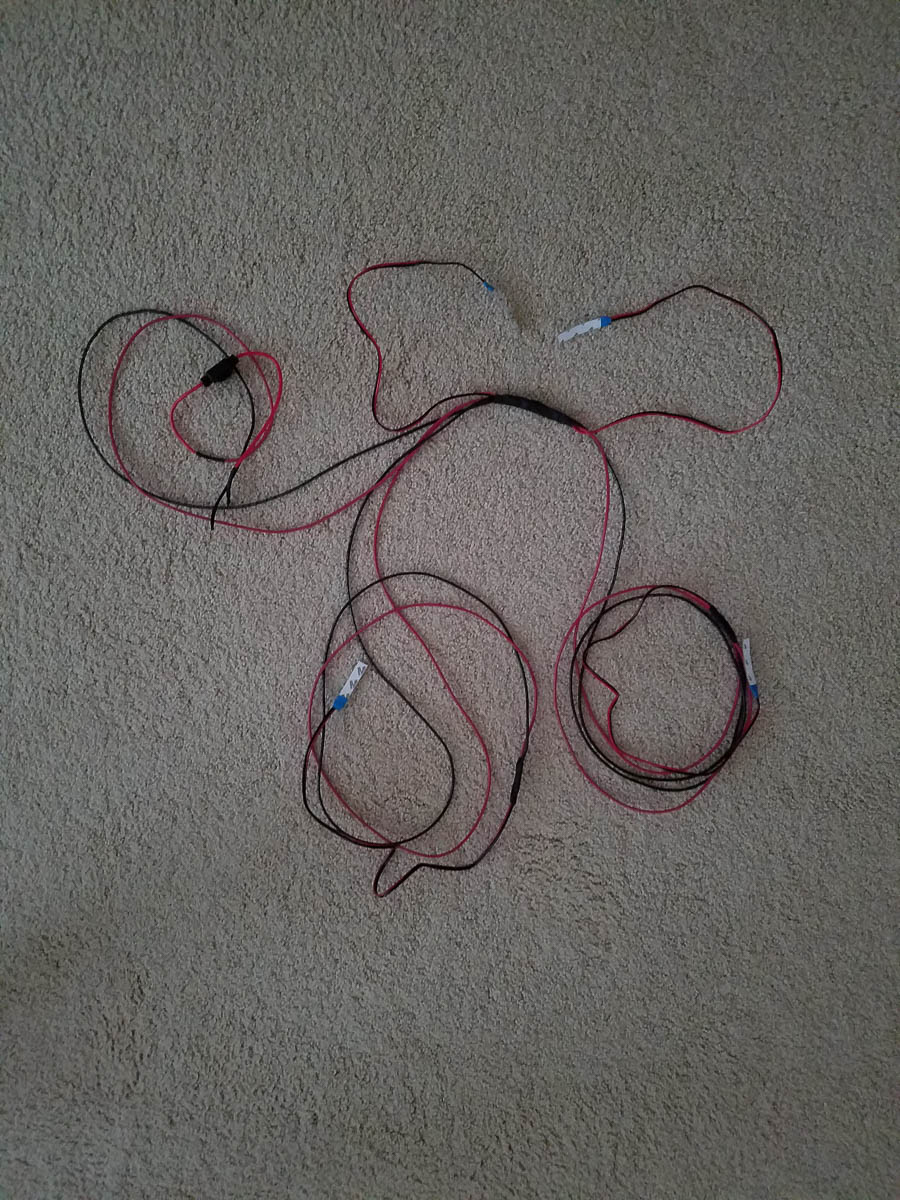

The wiring harness took 1.5 hours and the install another 1.5 hours. I used the convoluted tubing under the dash and under both front seats.

I tucked the wires into the console by removing the 2 front screws and removing the rear screws. Once tucked under the console, tightened up the screws and everything is quite tidy and out of sight except for where it sneaks out briefly to the convoluted tubing.

Pretty much same install as my 2015 Fit here:
https://www.fitfreak.net/forums/3rd-...t-ambient.html

  #109
Old 08-19-2017, 09:59 PM
Join Date: Feb 2017
Location: San Francisco
Posts: 35
Looks great! Looking forward to doing this with my GK.

  #110
Old 01-06-2019, 08:52 AM
New Member
Join Date: Jan 2019
Location: Philippines
Posts: 1
Help vios dome light wiring

Originally Posted by Lex_Dymndz View Post
well, since my GF lets me mod her Fit (she just doesn't want me to get crazy) I decided to do the footwell lighting.

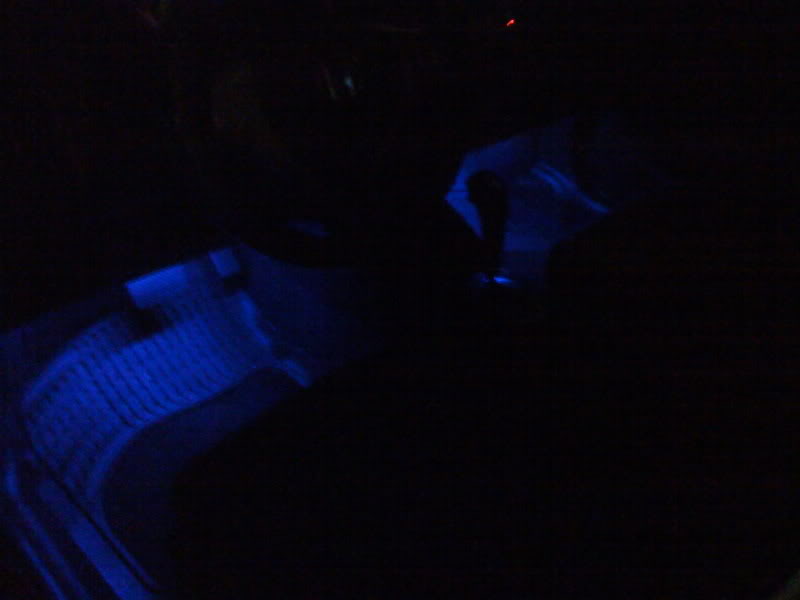

It was a PIA. I was not able to get my 14 gauge jumper wires to stick. So I just stuck in the 10 gauge wires from my LED strips (Pilot 10" LED strips from Pep Boys/ $19.99 each). I ran the wires underneather the paneling. So you cant see it. It came out pretty good. But took me longer than I expected.

Here's the pics:

Attachment 79108

BIG THANKS to jlor for the DIY info.
there are 3 wires on vios 2014, I dont know which is negative and positive
