Installed: Variable Intermittent Wipers 2009 USDM Fit Sport MT Non-Navi
Member
Joined: Jun 2009
Posts: 25
From: Lorain, OH USA
from ---> https://www.fitfreak.net/forums/2nd-...ts-thread.html
It's just plug and play
( Rear Cargo area Dual Stage light )
1) Rear Cargo light, P/N 34265-SFE-003
It's just plug and play
( Rear Cargo area Dual Stage light )
1) Rear Cargo light, P/N 34265-SFE-003
Can you post a pic of this installed please?
I'm itching to get some progress on the wiper mod while waiting for a Q connector pin solution, so two possibilities:
A - Finish everything up except the Q connector end - has anyone gotten this far and stopped?
If so, with the new wiper stalk do you still have the same wiper functionality as with the old stalk, i.e. off, on, single delay.
B - Same as A but then try shoving the bare wire into the connector pin hole so it makes some kind of contact with the mating connector pin and hold it there by taping to the other wires. (temp solution until the pin comes)
I would only do B if this is a small signal wire (low current) as opposed to a power wire, which I think it must be since the delay control would be a variable resistor which is either part of an RC timing circuit or is passing a small signal being read by a microprocessor.
Paul
Paul
A - Finish everything up except the Q connector end - has anyone gotten this far and stopped?
If so, with the new wiper stalk do you still have the same wiper functionality as with the old stalk, i.e. off, on, single delay.
B - Same as A but then try shoving the bare wire into the connector pin hole so it makes some kind of contact with the mating connector pin and hold it there by taping to the other wires. (temp solution until the pin comes)
I would only do B if this is a small signal wire (low current) as opposed to a power wire, which I think it must be since the delay control would be a variable resistor which is either part of an RC timing circuit or is passing a small signal being read by a microprocessor.
Paul
Paul
I'm itching to get some progress on the wiper mod while waiting for a Q connector pin solution, so two possibilities:
A - Finish everything up except the Q connector end - has anyone gotten this far and stopped?
If so, with the new wiper stalk do you still have the same wiper functionality as with the old stalk, i.e. off, on, single delay.
B - Same as A but then try shoving the bare wire into the connector pin hole so it makes some kind of contact with the mating connector pin and hold it there by taping to the other wires. (temp solution until the pin comes)
I would only do B if this is a small signal wire (low current) as opposed to a power wire, which I think it must be since the delay control would be a variable resistor which is either part of an RC timing circuit or is passing a small signal being read by a microprocessor.
Paul
Paul
A - Finish everything up except the Q connector end - has anyone gotten this far and stopped?
If so, with the new wiper stalk do you still have the same wiper functionality as with the old stalk, i.e. off, on, single delay.
B - Same as A but then try shoving the bare wire into the connector pin hole so it makes some kind of contact with the mating connector pin and hold it there by taping to the other wires. (temp solution until the pin comes)
I would only do B if this is a small signal wire (low current) as opposed to a power wire, which I think it must be since the delay control would be a variable resistor which is either part of an RC timing circuit or is passing a small signal being read by a microprocessor.
Paul
Paul
I have done option "A" on my car and the wipers still fully function.
Check out Niko's thread ---> https://www.fitfreak.net/forums/2nd-...t-upgrade.html plenty of pics, and he did several mods/improvements on it (LED, and added another cargo light) Great thread full of info... Big up Niko great job again bro!
Hopefully we will find out the part # of the connector pins for the Q connector, but just in case put me on the list too Niko... I can't wait to get this mod done.
Hopefully we will find out the part # of the connector pins for the Q connector, but just in case put me on the list too Niko... I can't wait to get this mod done.
So, I'm trying it - but I'm having a little difficulty getting the white pin retainer separated from the main connector body at the wiper stalk end.
Is there a technique to this? In the photo below mscott already has this done.
Thanks,
Paul
Is there a technique to this? In the photo below mscott already has this done.
Thanks,
Paul
Member
Joined: Feb 2009
Posts: 124
From: RTP, NC
If someone has a micrometer and will measure the dimensions of the pins, we might be able to find the actual part number from Molex here, then possibly source them in reasonable quantities from someone like DigiKey.
okay guys pins all work. i'm currently working with mscott to get
the pin location. it's really wierd and i just want to make sure.
so be patient. if you guys can't wait then let me know. i have the
list here in order.
1. Aenokea
2. Justintime
3. goredox
4. choro-Q_Fit
5. pbuck
6. triton
7. Red 05
8. schlappette
9. fitStir
10.
11.
two spots left and thats it.
now for you guys on the list please let me know how you want it.
what i mean is do you just want the Q or both?
for those of you that want both i have them made up already.
I have 5 complete sets. all you have to do is install. wires are
soldered and together.
as for just the Q i have 6 left.
please copy and paste the list and let me know what you want by
writing next to you name. write set or just Q.
thanks.
for the people wanting the set it will be $5 Shipped to your door.
the Q will be $3 shipped to your door.
my paypal is sp2rc51@yahoo.com
if your going to send me payment make sure you specify who you
are so i can make you off the list.
the pin location. it's really wierd and i just want to make sure.
so be patient. if you guys can't wait then let me know. i have the
list here in order.
1. Aenokea
2. Justintime
3. goredox
4. choro-Q_Fit
5. pbuck
6. triton
7. Red 05
8. schlappette
9. fitStir
10.
11.
two spots left and thats it.
now for you guys on the list please let me know how you want it.
what i mean is do you just want the Q or both?
for those of you that want both i have them made up already.
I have 5 complete sets. all you have to do is install. wires are
soldered and together.
as for just the Q i have 6 left.
please copy and paste the list and let me know what you want by
writing next to you name. write set or just Q.
thanks.
for the people wanting the set it will be $5 Shipped to your door.
the Q will be $3 shipped to your door.
my paypal is sp2rc51@yahoo.com
if your going to send me payment make sure you specify who you
are so i can make you off the list.
Last edited by niko3257; Aug 30, 2009 at 02:31 PM.
and sorry for the people who wanted part #'s.
i have non. these are directly from a vehicle.
when i talked to the service guy he couldn't
find anything. he told me they don't have it
unless you want to buy a harness. so the only
other way to go is after market like SteveInNC
is saying.
i have non. these are directly from a vehicle.
when i talked to the service guy he couldn't
find anything. he told me they don't have it
unless you want to buy a harness. so the only
other way to go is after market like SteveInNC
is saying.

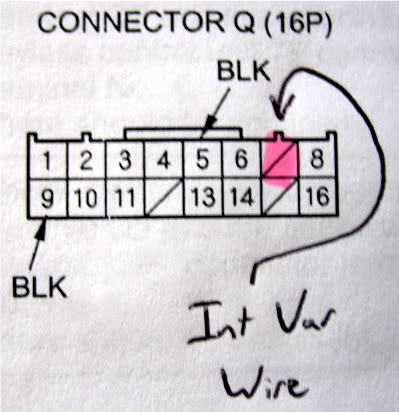

Here is the color layout for the Q-connector
2009 Honda Fit
Q Connector
1) YEL (DLC)
2) BLU (K-line communication line)
3) LT GRN (B-CAN Communications line)
4) GRN (Immobilizer System)
5) BLK (Wiper/Washer)... or Remote Starting System (Honda Accessory): BLK or BLK/RED
6) WHT (Right Turn Signal Circuit)
7) ** PNK **** Intermittent Wipers (This is the pin/wire to add) ****
8) LT BLU (Fuse 22 - Under Dash)
9) BLK (G502)
10) RED (A/T Interlock System)
11) ORN (Horn... without security)
12) XXX
13) PNK (Turn Signal and Hazard Warning Lights)
14) BRN (Fuse 10 - Under Dash)
15) XXX
16) PUR (VSA Fust 11 - Under Dash)
NOTE: You won't be able to test the var int wipers in the driveway. You've got to be going over 10mph for them to activate or else it'll go to the default 6sec delay regardless of where it is set.
2009 Honda Fit
Q Connector
1) YEL (DLC)
2) BLU (K-line communication line)
3) LT GRN (B-CAN Communications line)
4) GRN (Immobilizer System)
5) BLK (Wiper/Washer)... or Remote Starting System (Honda Accessory): BLK or BLK/RED
6) WHT (Right Turn Signal Circuit)
7) ** PNK **** Intermittent Wipers (This is the pin/wire to add) ****
8) LT BLU (Fuse 22 - Under Dash)
9) BLK (G502)
10) RED (A/T Interlock System)
11) ORN (Horn... without security)
12) XXX
13) PNK (Turn Signal and Hazard Warning Lights)
14) BRN (Fuse 10 - Under Dash)
15) XXX
16) PUR (VSA Fust 11 - Under Dash)
NOTE: You won't be able to test the var int wipers in the driveway. You've got to be going over 10mph for them to activate or else it'll go to the default 6sec delay regardless of where it is set.
Last edited by mscott; Aug 30, 2009 at 02:34 PM.
