Moar distribution blocks:


Ran out of 4AWG cable have to wait on more..



Damn DSM that's a hell of a project man love that turbo man, general lee said it ok for you to smoke some V8's man



Hahaha much appreciated!

Waiting on my rocker switch panel to come in:


Got almost everything else wired in!



I like the direct USB plug in!



I haven't been worth a damn at wiring since I had to give up smoking ganja... Just thinking of doing a job like that causes major anxiety..

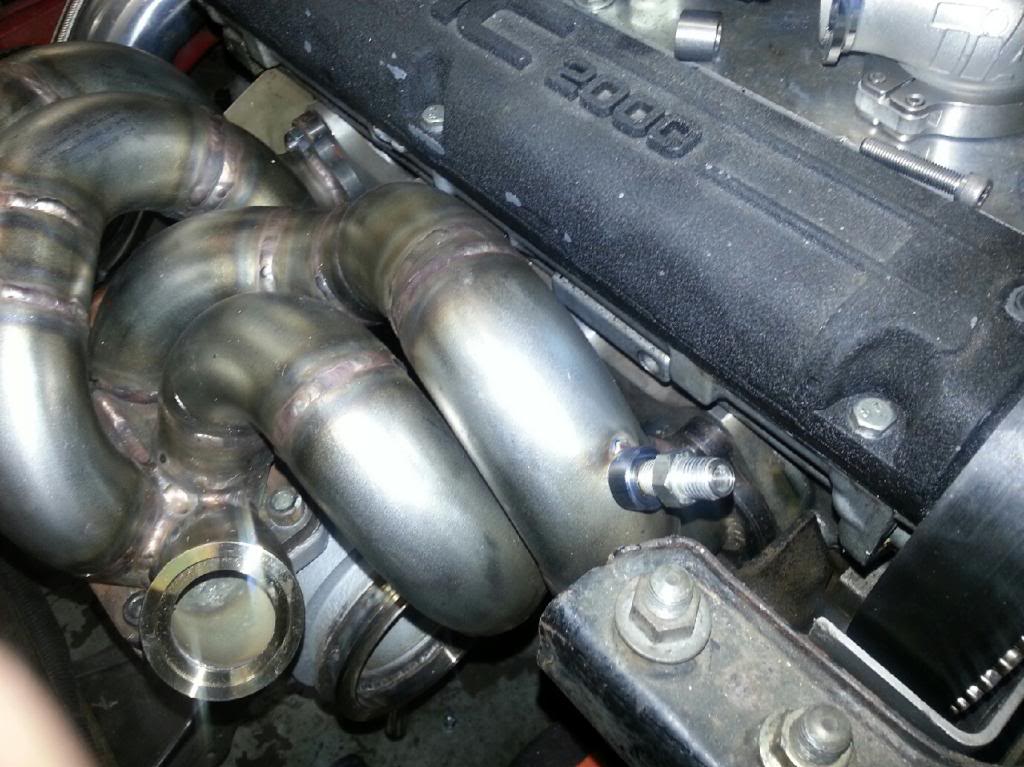

EGT probes (pre and post turbo), Turbine drive pressure sending unit and Oxygen sensor probes being welded in as we speak:

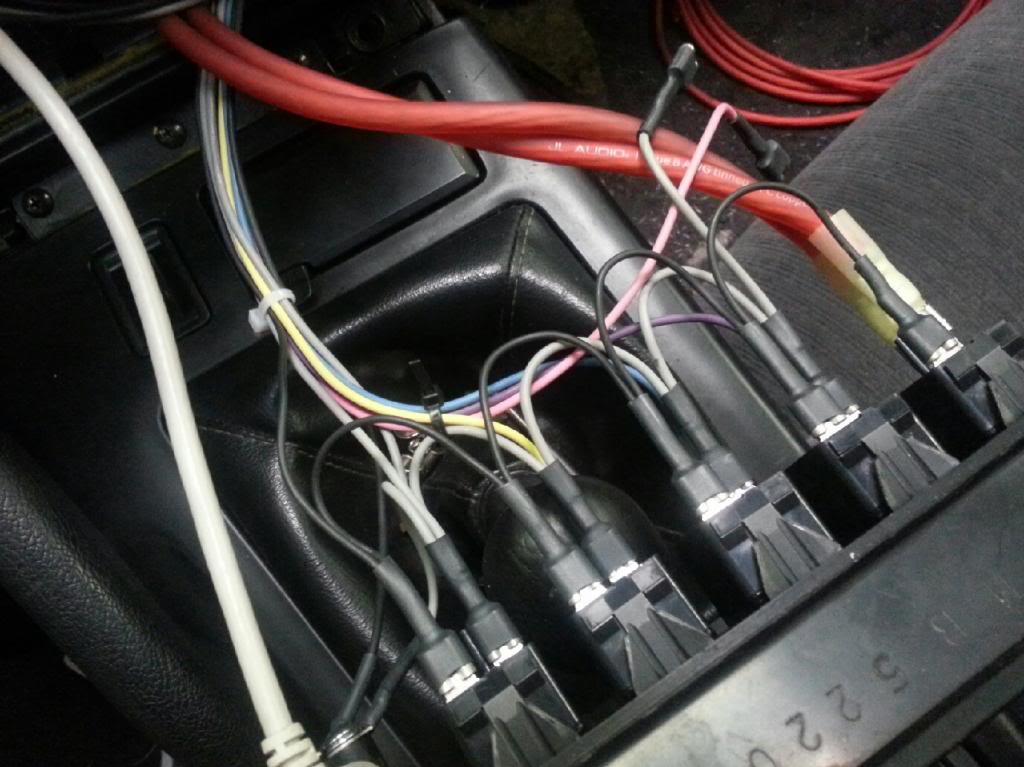

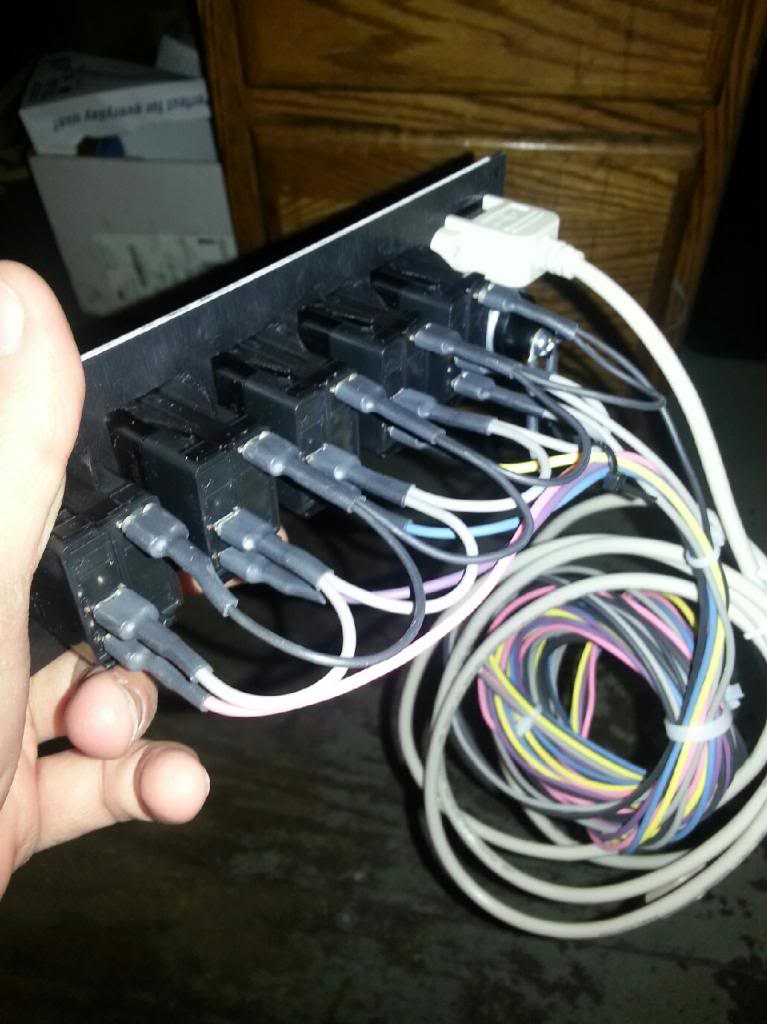

Panel is wired and in..



Dam BRo u gotten alot done since i been off got back from hawaii friday it was great was gone 2 weeks :)

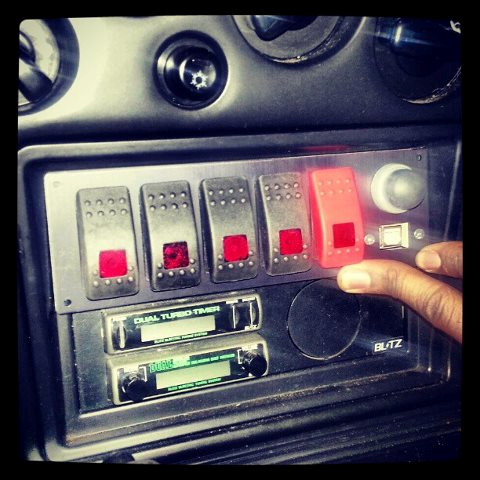

Dash Panel mounted over Turbo Timer and Electronic Boost Controller, Voltage Gauge will occupy the pod next to them:


Gauges coming up next..



Gauges and modular harness being made for me by ISSPro, should be here beginning of next week.

This wiring shits never gonna end:

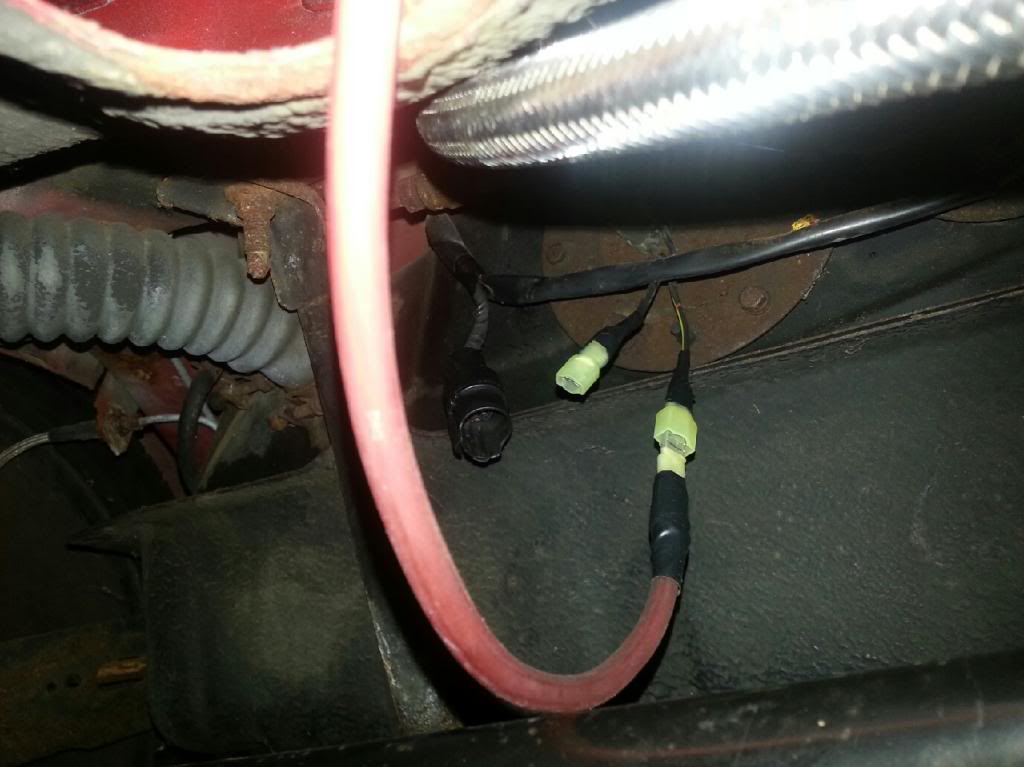

Nevermind the goofy electrical tape job and weird wire gauge change on that relay. The main lengths for power, trigger and ground are run in 8ga for complete overkill so to avoid voltage drop and overheating. Will be soldered properly before first crank.

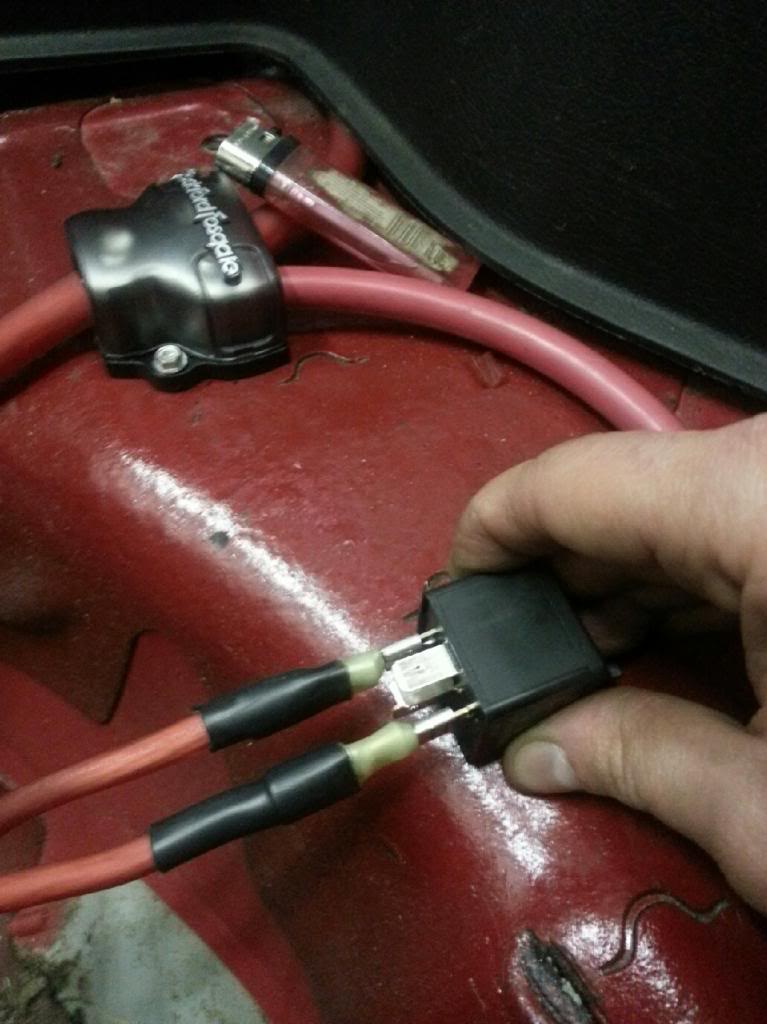

Pins on the Relay are smaller than I wanted, so looking at jamming the 8ga into 10ga spade terminal receivers and then soldering those to the relay pins. Dash switch and relay rated to 30A, draw max from that pump should barely get into the teens so not worried.



Screw the stupid wire gauge flip-flopping:


Had to get rid of the clip to accomodate the 8ga.



beautiful :) keep it going looking good



Only the gauges, electronic boost controller (EBC), EBC Solenoid, meth pump and meth controller left!



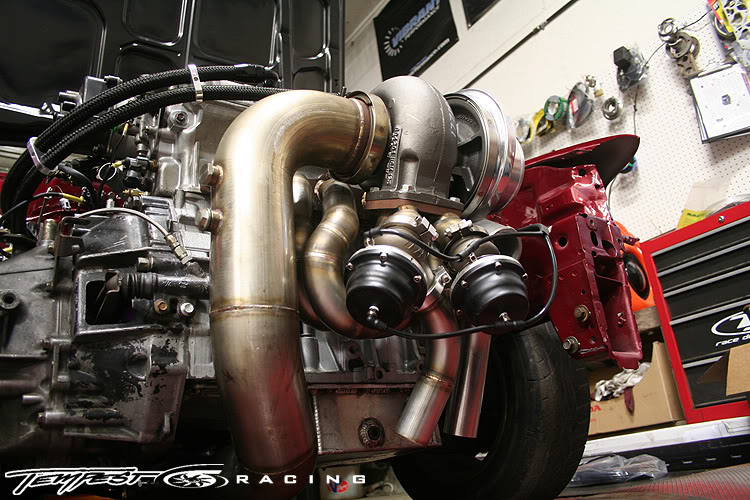

This is going to make some noise:

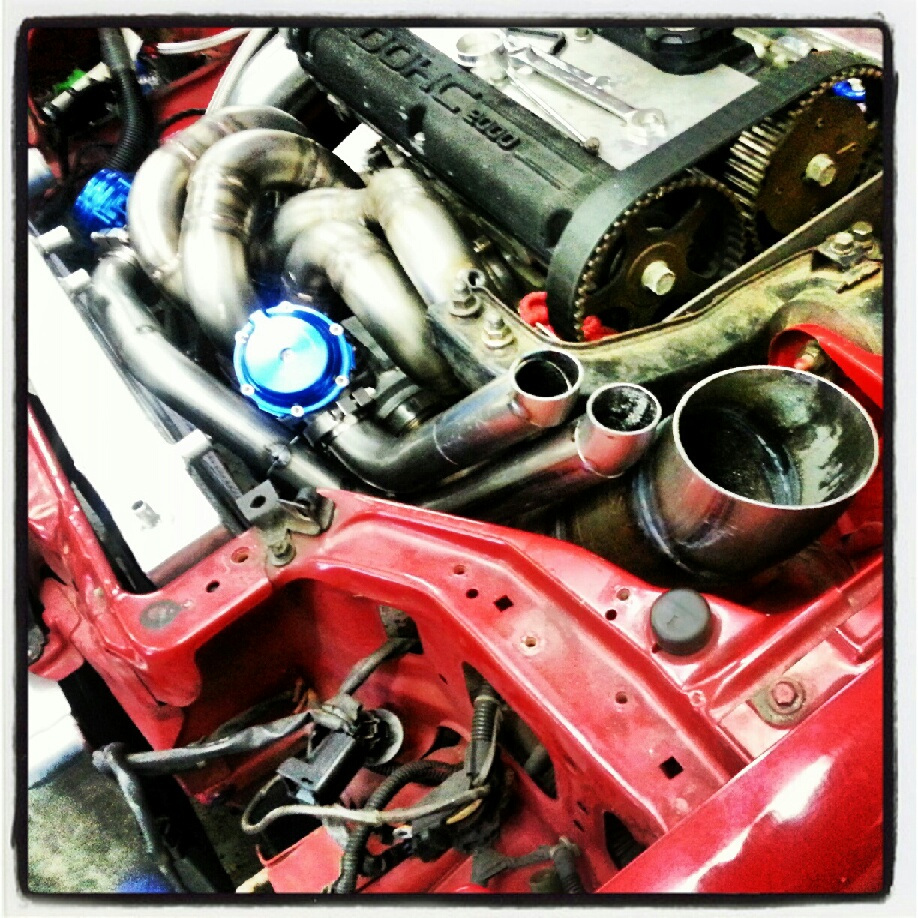

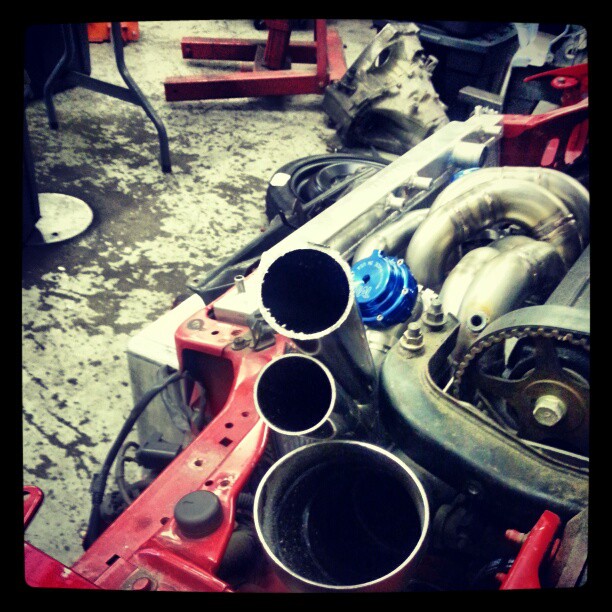

Two waste-gate dump tubes and the turbine discharge all going through the hood.

Should make for quite a fireball show at night too bouncing off the two-step and under full boost when the gates crack open



I'm expecting some videos. :)

Looks like you have a beast on your hands. Nice work.



I'm planning on a couple of go pros this month

So hopefully!

Better shot as we clean it up!



Post Turbine EGT and two oxygen sensors welded into the downpipe:



Rolling meth lab!

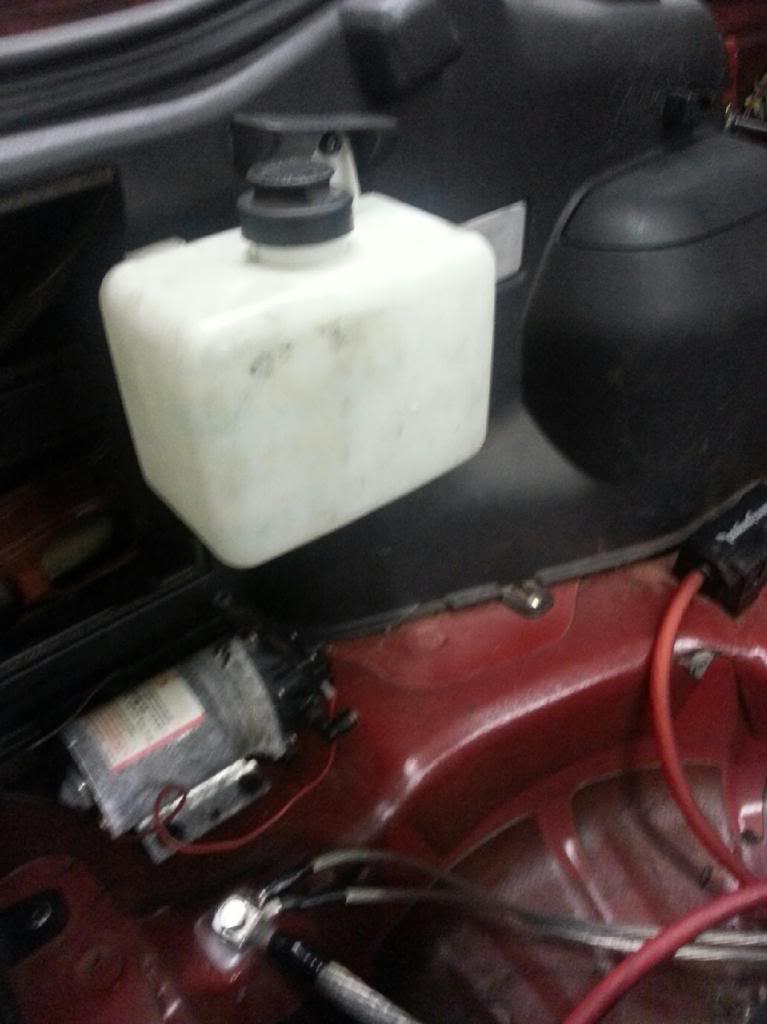

Tank is too small, but what I have for now. With the 3 nozzles I'm using (1x 10gph, 2x 2gph) spraying @ 220psi I should be out of fluid in about 3 miles lol



Anyone have any experience with Push-to-Lock DOT lines?

Looking to try some out for my WasteGates/BOV/AFPR, like this:


Recommended by a friend, and I know some folks use them.. I've only ever used the nylon type that come on meth kits
